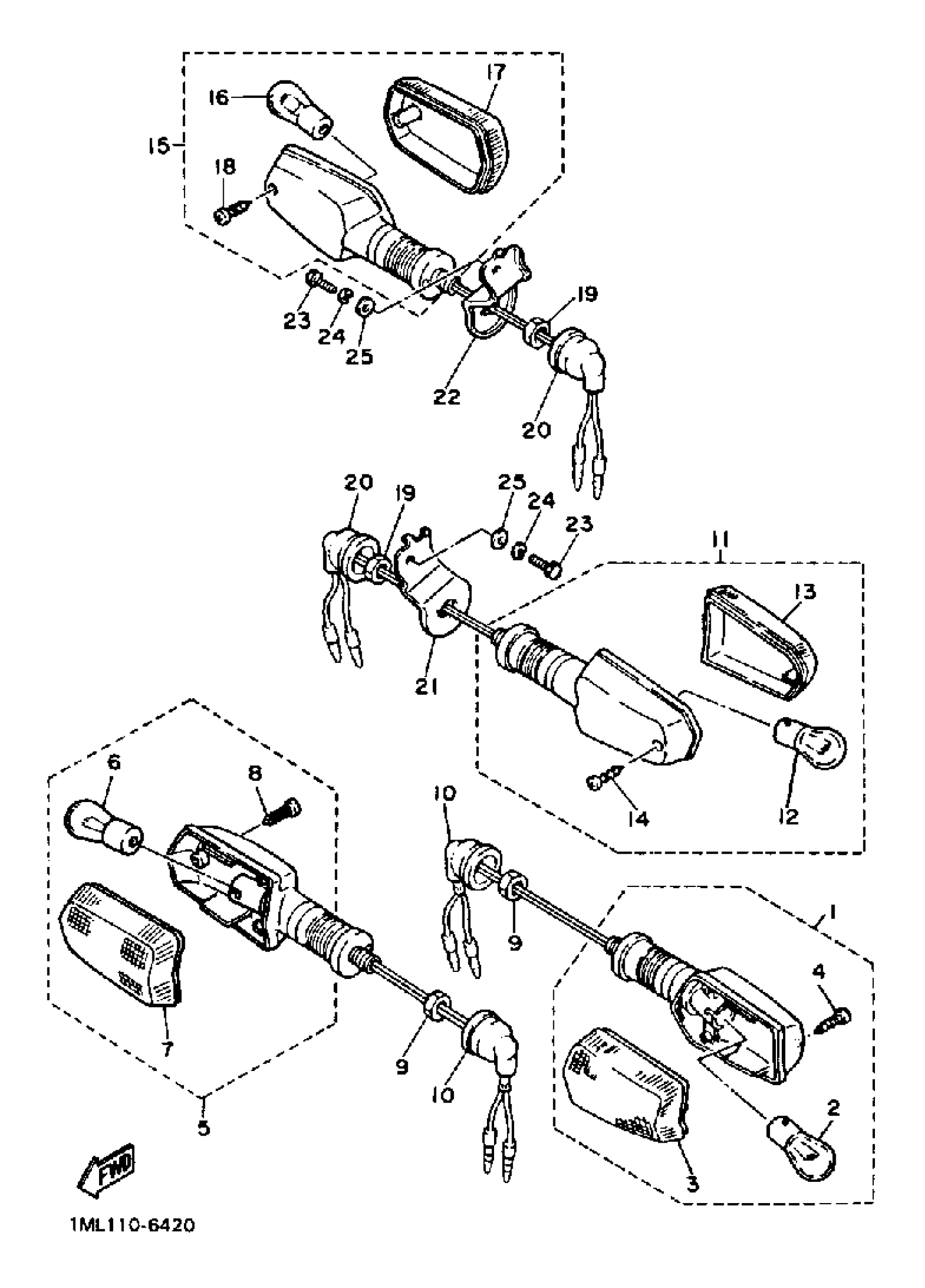

Yamaha FZ700TC (FZ700 CA) 1987 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSEMBLY 1

1LJ-83310-20-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

3

LENS, FLASHER

51L-83332-01-00

Unavailable

4

SCREW, PAN TAP.2

97707-40520-00

$6.79

5

FRONT FLASHER LIGHT ASSEMBLY 2

1LJ-83320-20-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

7

LENS, FLASHER 2

51L-83342-01-00

$7.38

8

SCREW, PAN TAP.2

97707-40520-00

$6.79

9

CAP

18G-83365-00-00

$16.64

10

CAP

18G-83365-00-00

$16.64

11

FRT FLSHR LITE ASY

1VW-83320-00-00

Unavailable

12

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

13

LENS, FLASHER 2

51L-83342-01-00

$7.38

14

SCREW, PAN TAP.2

97707-40520-00

$6.79

15

FRT FLSHR LITE ASY

1VW-83310-00-00

Unavailable

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

LENS, FLASHER

51L-83332-01-00

Unavailable

18

SCREW, PAN TAP.2

97707-40520-00

$6.79

19

NUT, HEXAGON

95337-12600-00

Unavailable

20

CAP

18G-83365-00-00

$16.64

21

STAY, FLASHER

1AE-83368-00-00

Unavailable

22

STAY, FLASHER

1AE-83369-00-00

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, SPRING

92995-06100-00

$2.83

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable
