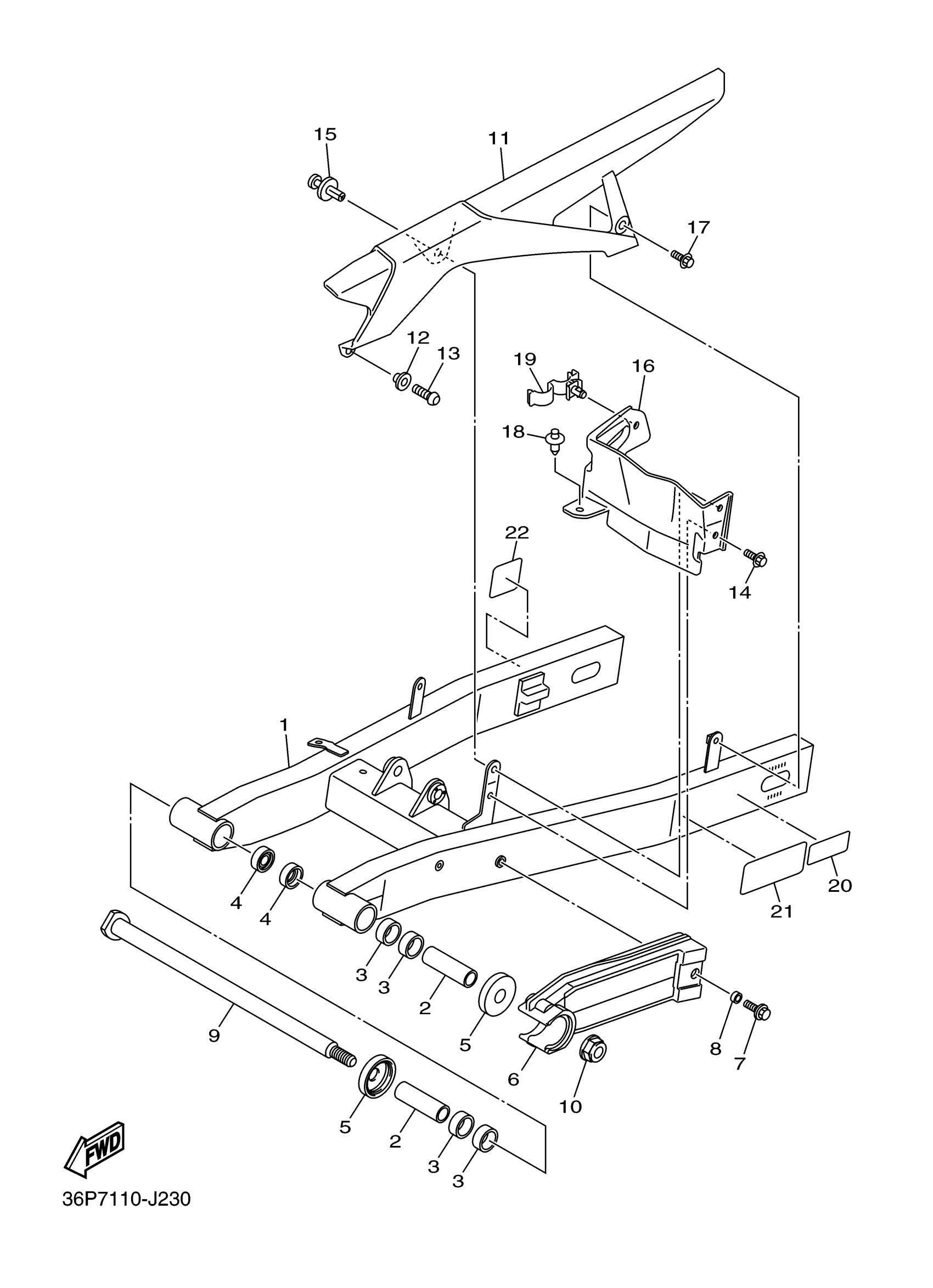

Yamaha FZ6RZW (FZ6R) 36PA1 2010 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

20S-22110-00-00

Unavailable

2

BUSH 2

5VK-22124-00-00

Unavailable

3

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

4

OIL SEAL (23X)

93106-22019-00

$11.49

5

COVER, THRUST 1

20S-22128-00-00

$15.49

6

SEAL, GUARD

20S-22151-00-00

Unavailable

7

BOLT, WITH WASHER

90119-06147-00

$1.13

8

COLLAR

90387-06133-00

$5.60

9

SHAFT, PIVOT

1AE-22141-01-00

Unavailable

10

NUT, SELF-LOCKING

90185-14012-00

$22.99

11

CASE, CHAIN

20S-22311-01-00

$67.99

12

COLLAR

90387-06130-00

$9.49

13

BOLT, BUTTON HEAD

92012-06020-00

$8.49

14

BOLT, WITH WASHER

90119-06155-00

$8.49

15

RIVET(4JH)

90269-07076-00

$7.49

16

COVER, DUST

20S-22325-01-00

Unavailable

17

BOLT, WITH WASHER

90119-06155-00

$8.49

18

RIVET

90269-08001-00

Unavailable

19

CLAMP

90464-16011-00

Unavailable

20

LABEL, TIRE

3XW-21668-A1-00

Unavailable

21

PLATE, EPA (CALIFORNIA)

36P-2176P-10-00

Unavailable

22

PLATE, ROUTING 2

5SL-21686-00-00

Unavailable
