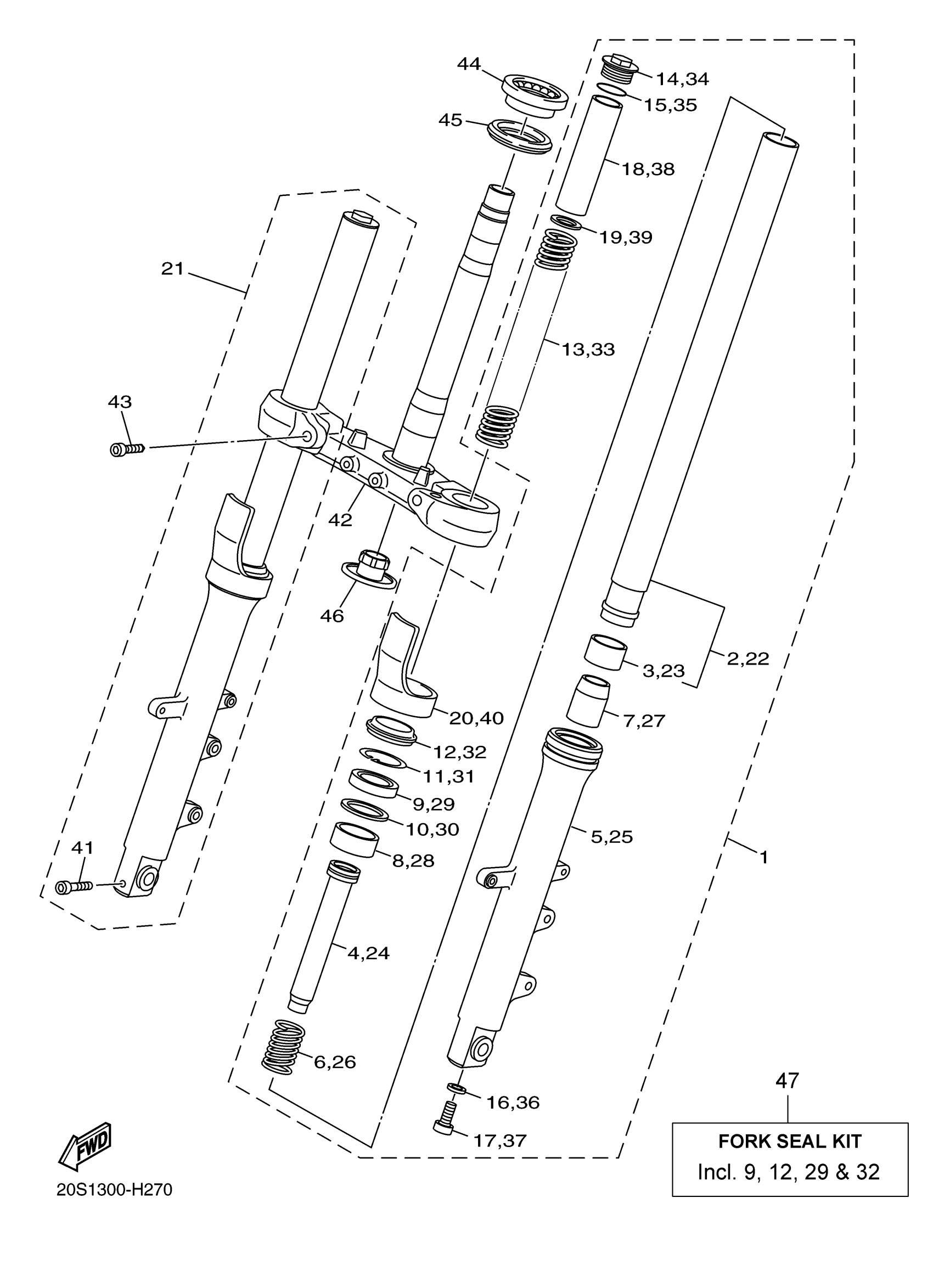

Yamaha FZ6RZW (FZ6R) 36PA1 2010 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

20S-23102-00-00

Unavailable

2

INNER TUBE COMP.1

20S-23110-00-00

$259.99

3

METAL, SLIDE 2

3VD-23135-10-00

$31.99

4

CYLINDER COMP., FRONT FORK

20S-23170-00-00

$93.99

5

TUBE, OUTER (LEFT)

20S-23126-00-00

Unavailable

6

. SPRING, REBOUND

3VD-23151-00-00

Unavailable

7

SPINDLE, TAPER

5VU-23173-00-00

$28.99

8

METAL, SLIDE 1

3VD-23125-10-00

Unavailable

9

OIL SEAL

5VU-23145-00-00

$29.99

10

GUIDE, COVER UPPER

3VD-23115-00-00

$11.99

11

CLIP, OIL SEAL

3VD-23156-00-00

$7.99

12

SEAL, DUST

3VD-23144-00-00

$27.99

13

SPRING, FRONT FORK

20S-23141-00-00

$60.99

14

FORK, BOLT

5VU-2311H-00-00

$63.99

15

O-RING(3VD)

93210-35N02-00

$3.98

16

GASKET (5R6)

90430-10171-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

Unavailable

18

SPACER

5VU-23118-00-00

Unavailable

19

SEAT, SPRING UPPER

5VU-23142-00-00

Unavailable

20

COVER

4TX-2331G-00-00

Unavailable

21

FRONT FORK ASSY (R.H)

20S-23103-00-00

Unavailable

22

INNER TUBE COMP.1

20S-23110-00-00

$259.99

23

METAL, SLIDE 2

3VD-23135-10-00

$31.99

24

CYLINDER COMP., FRONT FORK

20S-23170-00-00

$93.99

25

TUBE, OUTER (RIGHT)

20S-23136-00-00

Unavailable

26

. SPRING, REBOUND

3VD-23151-00-00

Unavailable

27

SPINDLE, TAPER

5VU-23173-00-00

$28.99

28

METAL, SLIDE 1

3VD-23125-10-00

Unavailable

29

OIL SEAL

5VU-23145-00-00

$29.99

30

GUIDE, COVER UPPER

3VD-23115-00-00

$11.99

31

CLIP, OIL SEAL

3VD-23156-00-00

$7.99

32

SEAL, DUST

3VD-23144-00-00

$27.99

33

SPRING, FRONT FORK

20S-23141-00-00

$60.99

34

FORK, BOLT

5VU-2311H-00-00

$63.99

35

O-RING(3VD)

93210-35N02-00

$3.98

36

GASKET (5R6)

90430-10171-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

Unavailable

38

SPACER

5VU-23118-00-00

Unavailable

39

SEAT, SPRING UPPER

5VU-23142-00-00

Unavailable

40

COVER

4TX-2331G-00-00

Unavailable

41

BOLT,SOCKET

91314-08040-00

Unavailable

42

UNDER BRACKET COMP.

B40-23340-00-00

Unavailable

43

BOLT,SOCKET

91314-10025-00

Unavailable

44

BEARING(3FV)

93399-99932-00

Unavailable

45

SEAL, STEERING

3FV-23462-00-00

Unavailable

46

COVER, LOWER 1

4KM-23123-01-00

Unavailable

47

FORK SEAL KIT (TWO FORKS)

5VU-W003B-00-00

Unavailable
