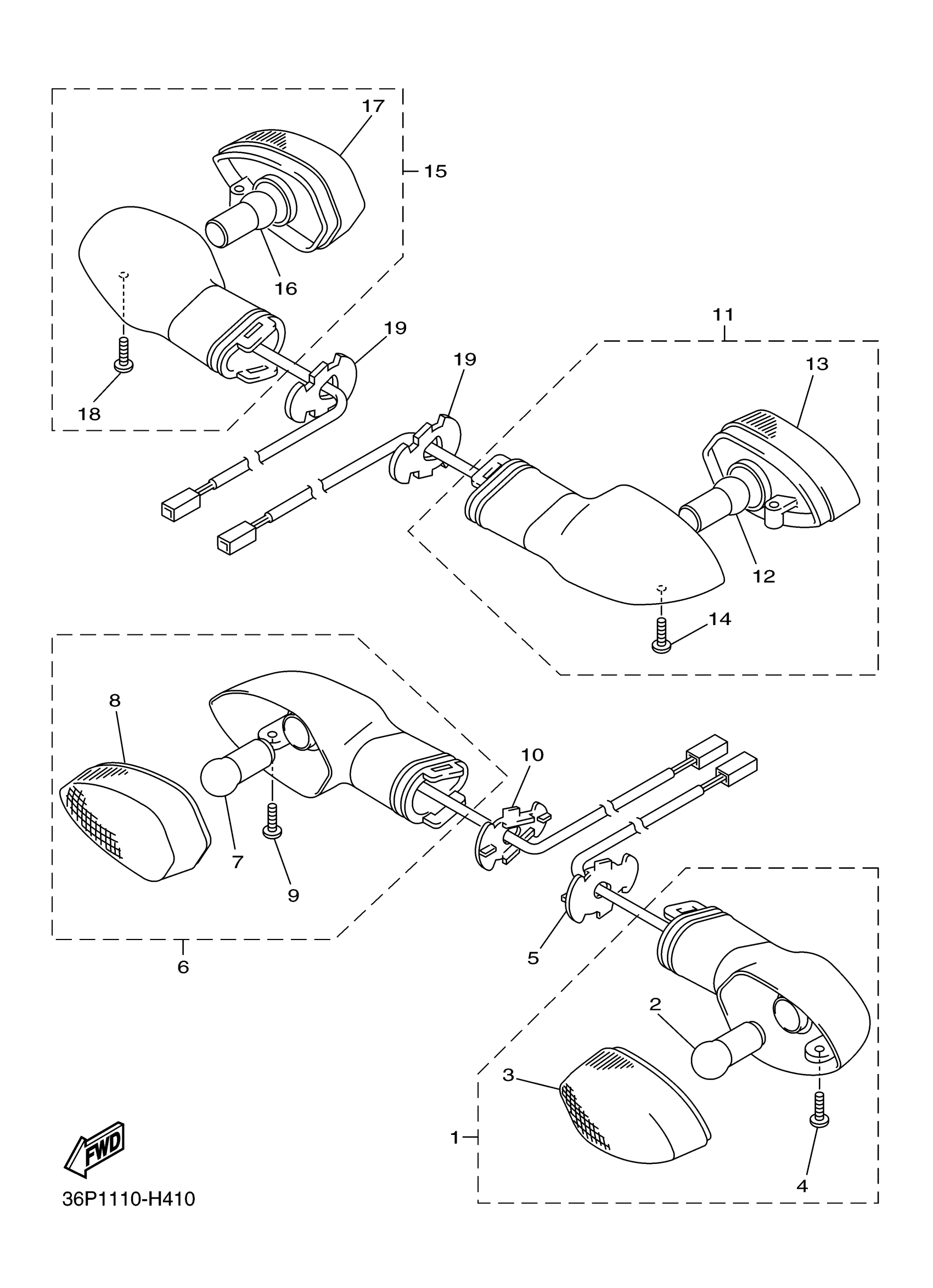

Yamaha FZ6RZW (FZ6R) 36PA1 2010 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

2C0-83310-10-00

$88.91

2

BULB

1A2-84714-50-00

$11.36

3

LENS COMP

2C0-8333A-10-00

Unavailable

4

SCREW, TAPPING

97702-40010-00

$2.30

5

STAY, FLASHER 1

2D1-83318-00-00

$6.37

6

FRONT FLASHER LIGHT ASSY 2

2C0-83320-10-00

$97.06

7

BULB

1A2-84714-50-00

$11.36

8

LENS COMP

2C0-8334A-10-00

Unavailable

9

SCREW, TAPPING

97702-40010-00

$2.30

10

STAY, FLASHER 1

2D1-83318-00-00

$6.37

11

REAR FLASHER LIGHT ASSY 1

2C0-83330-10-00

Unavailable

12

BULB, FLASHER (12V-21W)

306-83311-40-00

$10.05

13

LENS COMP

2C0-8334A-10-00

Unavailable

14

SCREW, TAPPING

97702-40010-00

$2.30

15

REAR FLASHER LIGHT ASSY 2

2C0-83340-10-00

Unavailable

16

BULB, FLASHER (12V-21W)

306-83311-40-00

$10.05

17

LENS COMP

2C0-8333A-10-00

Unavailable

18

SCREW, TAPPING

97702-40010-00

$2.30

19

STAY, FLASHER 1

3D7-83318-10-00

Unavailable
