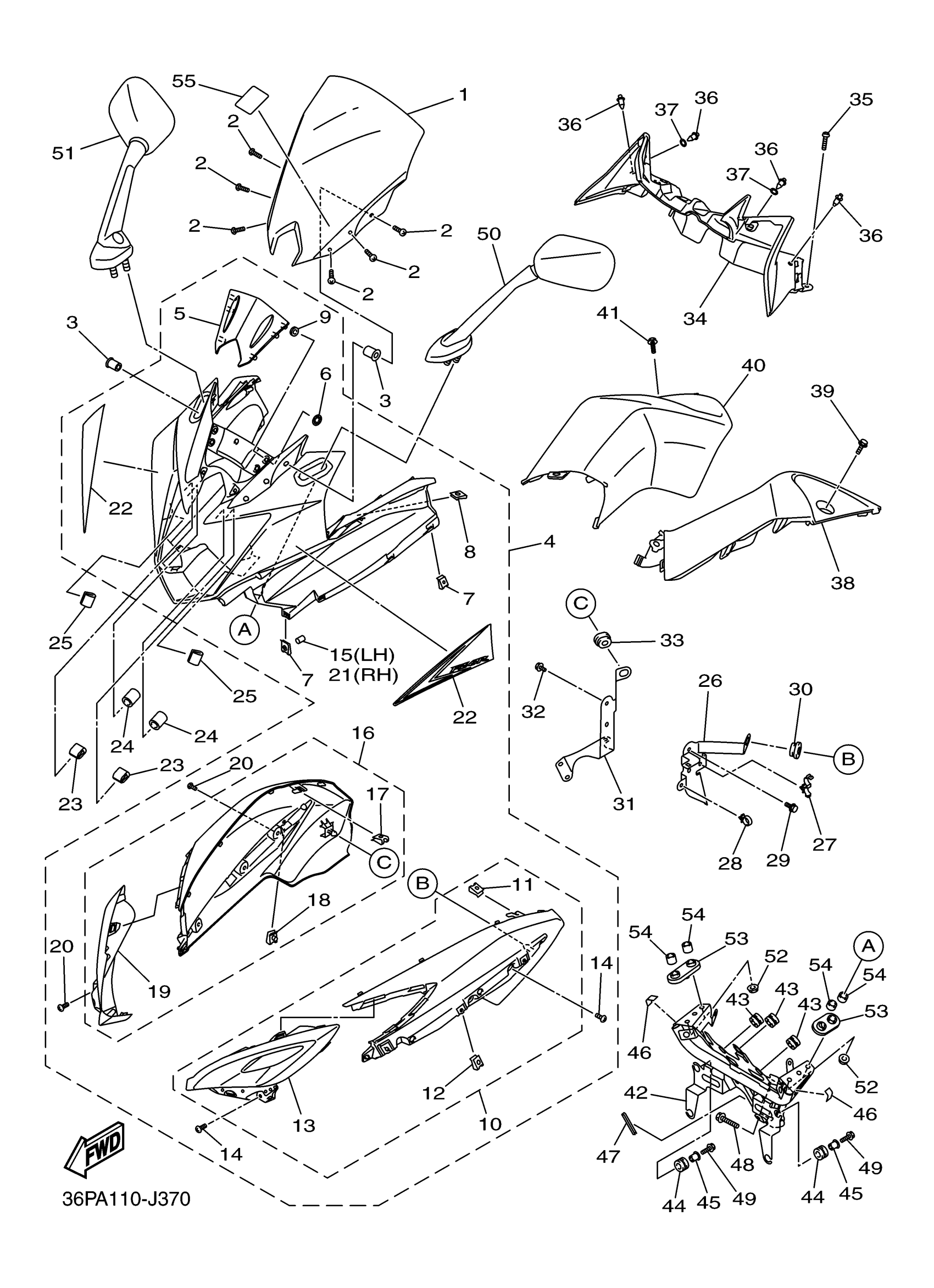

Yamaha FZ6RZW (FZ6R) 36PA1 2010 COWLING 1 Diagram
#
4
BODY, FRONT UPPER 1
36P-W283G-40-P0
Unavailable
5
COVER, METER
36P-83559-00-00
Unavailable
16
BOX SUB ASSY
36P-2830R-01-00
Unavailable
19
GRILL, AIR INTAKE 2
36P-2837R-00-00
Unavailable
22
.. GRAPHIC SET, COWLING (DEEP PURPLISH BLUE METALLIC C)
36P-28390-10-00
Unavailable
23
TRIM
20S-28376-00-00
Unavailable
24
HOSE
90445-08029-00
Unavailable
25
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
26
BRACKET 5
36P-2172R-01-00
Unavailable
27
CLAMP
90464-16006-00
Unavailable
28
CLAMP(3XV)
90464-15157-00
Unavailable
29
BOLT, FLANGE
95817-06012-00
Unavailable
30
GROMMET(4DN)
90480-01558-00
Unavailable
31
BRKT 6
36P-2172T-01-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
GROMMET(4DN)
90480-01558-00
Unavailable
34
PANEL, INNER 1
36P-2836K-00-00
Unavailable
35
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
36
RIVET
90269-06008-00
Unavailable
37
WASHER, PLATE
90202-06004-00
Unavailable
38
PANEL, INNER 2
36P-2836L-00-00
Unavailable
39
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
40
PANEL, INNER 3
36P-2836M-00-00
Unavailable
41
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
42
STAY 1
36P-28356-01-00
Unavailable
43
DAMPER
3C3-83513-00-00
Unavailable
44
GROMMET
90480-14004-00
Unavailable
45
COLLAR 437216330000
90387-07391-00
Unavailable
46
DAMPER 5
36P-2837J-00-00
Unavailable
47
MOLE 4
2S3-28348-00-00
Unavailable
48
BOLT, FLANGE
95822-08035-00
Unavailable
49
BOLT, FLANGE
95822-06025-00
Unavailable
50
REAR VIEW MIRROR ASSY (LEFT)
36P-26280-01-00
Unavailable
51
REAR VIEW MIRROR ASSY (RIGHT)
36P-26290-01-00
Unavailable
52
NUT, FLANGE
95702-06500-00
Unavailable
53
PLATE, MIRROR FITTING 1
3C3-26298-00-00
Unavailable
54
COLLAR(J45)
90387-064T3-00
Unavailable
55
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
Unavailable
