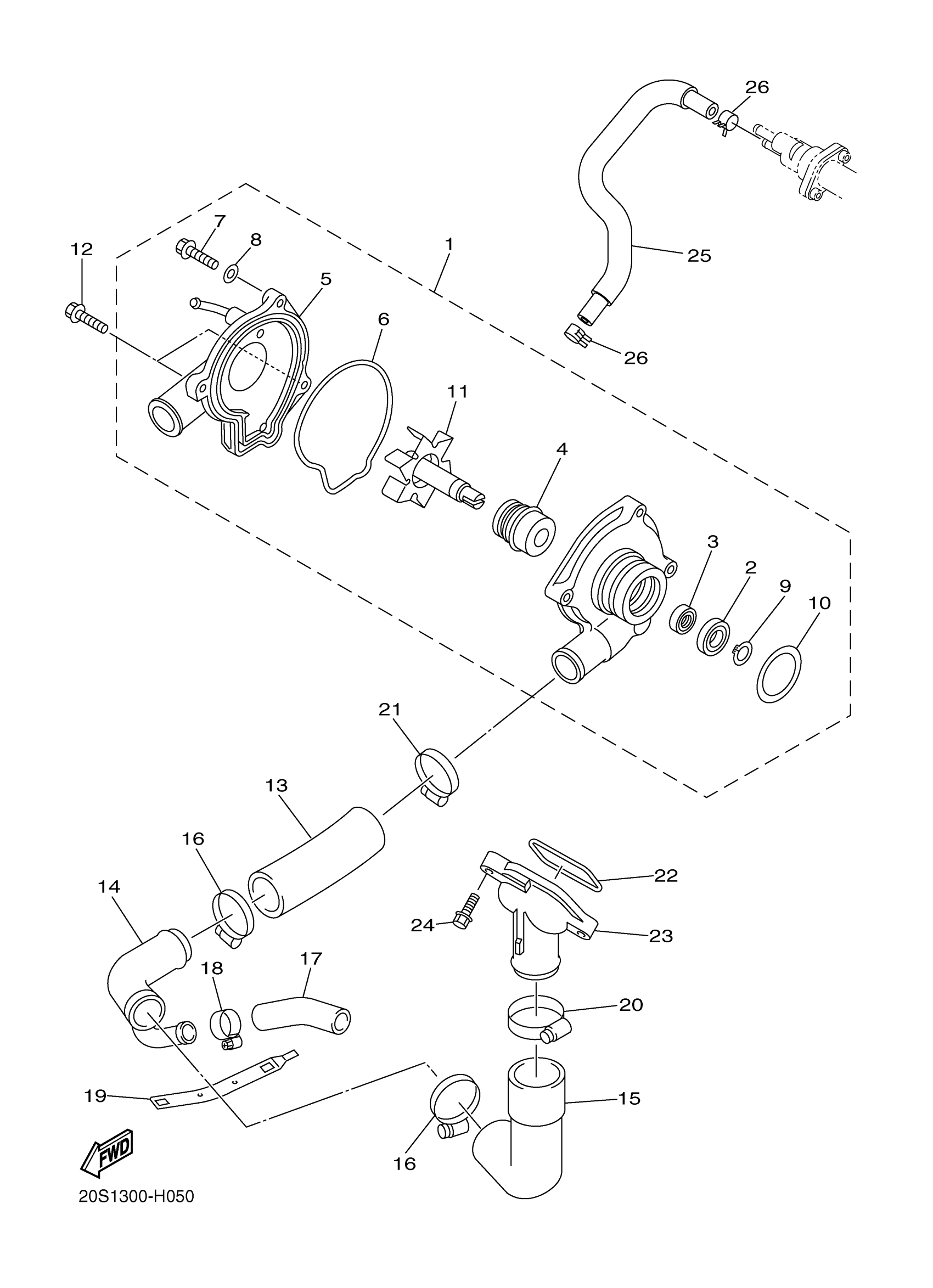

Yamaha FZ6RZCB (FZ6R CA) 36P8 2010 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

20S-12420-01-00

$270.99

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

OIL SEAL

93101-12173-00

$13.49

4

SEAL, MECHANICAL

4C8-12438-00-00

$49.99

5

COVER, HOUSING

5SL-12422-00-00

$101.99

6

O-RING

5EB-12439-00-00

$17.49

7

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

8

GASKET 256113960000

90430-06014-00

Unavailable

9

CIRCLIP(10Y)

99009-12400-00

$3.59

10

O-RING (626)

93210-33133-00

$2.92

11

IMPELLER SHAFT ASSY

20S-12450-00-00

Unavailable

12

BOLT, SOCKET

91314-06040-00

$8.49

13

HOSE 4 (L105.6)

4NK-12579-00-00

Unavailable

14

JOINT, HOSE 1

20S-12581-01-00

$63.99

15

HOSE 2

5EB-12577-01-00

Unavailable

16

HOSE CLAMP ASSY

90450-35001-00

Unavailable

17

HOSE 5

5SL-12588-01-00

Unavailable

18

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

19

COVER 2

5GV-1246E-00-00

Unavailable

20

HOSE CLAMP ASSY

90450-38003-00

Unavailable

21

CLAMP

90460-20190-00

Unavailable

22

O-RING

93210-46001-00

Unavailable

23

JOINT 1

5EB-12469-00-00

Unavailable

24

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

25

HOSE 1

5VX-1243A-00-00

Unavailable

26

CLIP

90467-110A2-00

Unavailable
