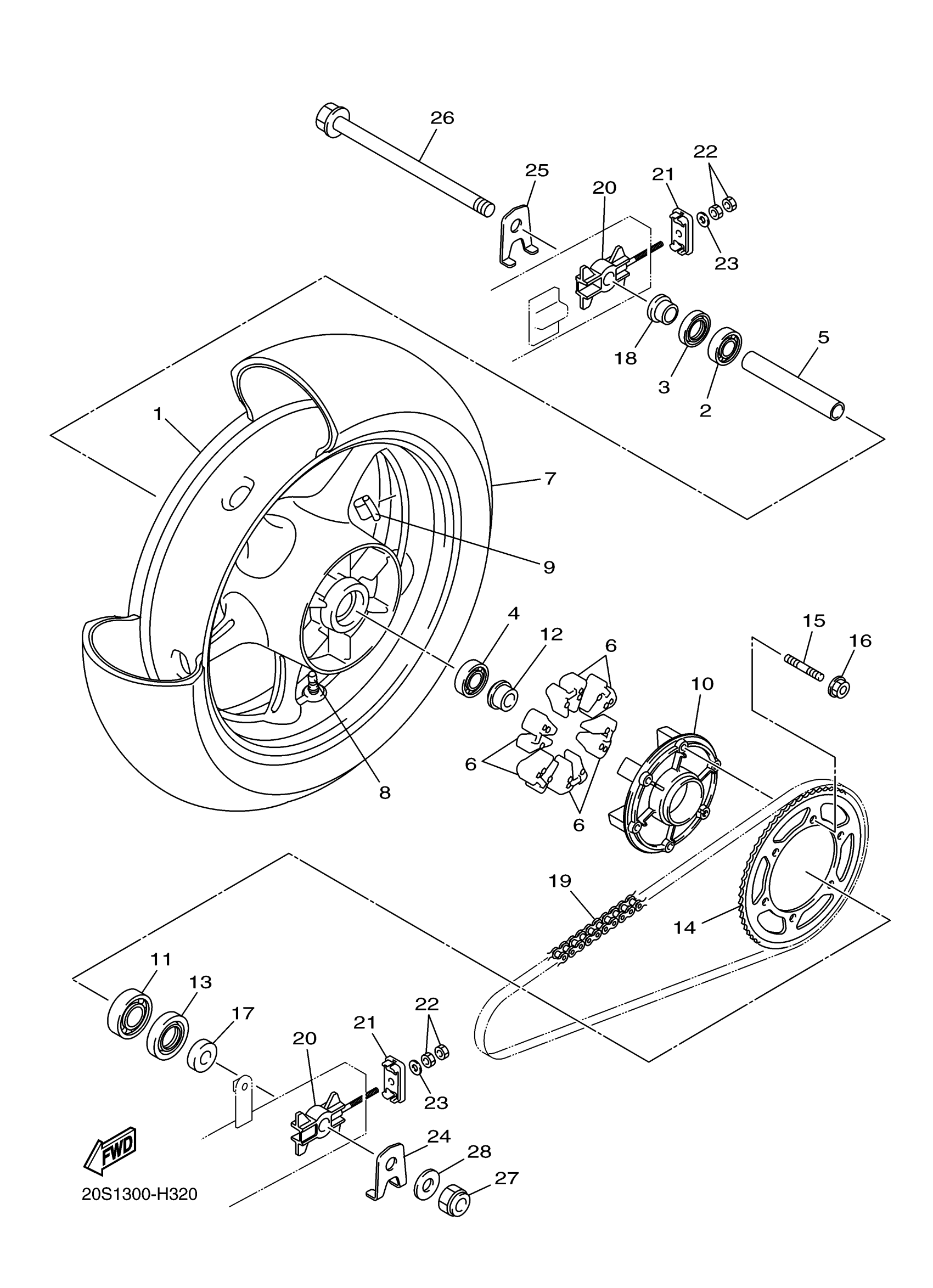

Yamaha FZ6RZCB (FZ6R CA) 36P8 2010 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

20S-25338-00-8L

$412.99

2

BEARING(4HM)

93306-30317-00

$39.99

3

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

SPACER, BEARING

20S-25317-00-00

Unavailable

6

DAMPER

20S-25364-00-00

$21.99

7

TIRE (160/60ZR17M/C 69W BT021R)

94116-17015-00

Unavailable

7

TIRE (160/60ZR17M/C 69W)

94116-17019-00

Unavailable

8

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

BALANCER, WHEEL

5MT-25398-10-00

$17.49

9

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

10

CLUTCH, HUB

20S-25366-00-00

$118.99

11

BEARING

93306-20659-00

$70.99

12

COLLAR, WHEEL

20S-25383-00-00

Unavailable

13

OIL SEAL

93106-40041-00

Unavailable

14

SPROCKET, DRIVEN (46T)

20S-25446-00-00

Unavailable

15

BOLT, STUD

90116-10048-00

Unavailable

16

NUT, S/L FLANGE

95602-10200-00

Unavailable

17

COLLAR, WHEEL

20S-25377-00-00

Unavailable

18

COLLAR, WHEEL

20S-25183-00-00

Unavailable

19

CHAIN

94582-37118-00

Unavailable

20

PULLER, CHAIN 1

1UF-25388-02-00

Unavailable

21

END 1

1UF-22174-01-00

Unavailable

22

NUT

95302-08600-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

PLATE, INDICATOR

1UF-2533A-01-00

Unavailable

25

PLATE, INDICATOR 2

1UF-2533E-01-00

Unavailable

26

AXLE, WHEEL

20S-25381-01-00

Unavailable

27

NUT, SELF-LOCKING

90185-16002-00

Unavailable

28

WASHER, PLATE

90201-16026-00

Unavailable
