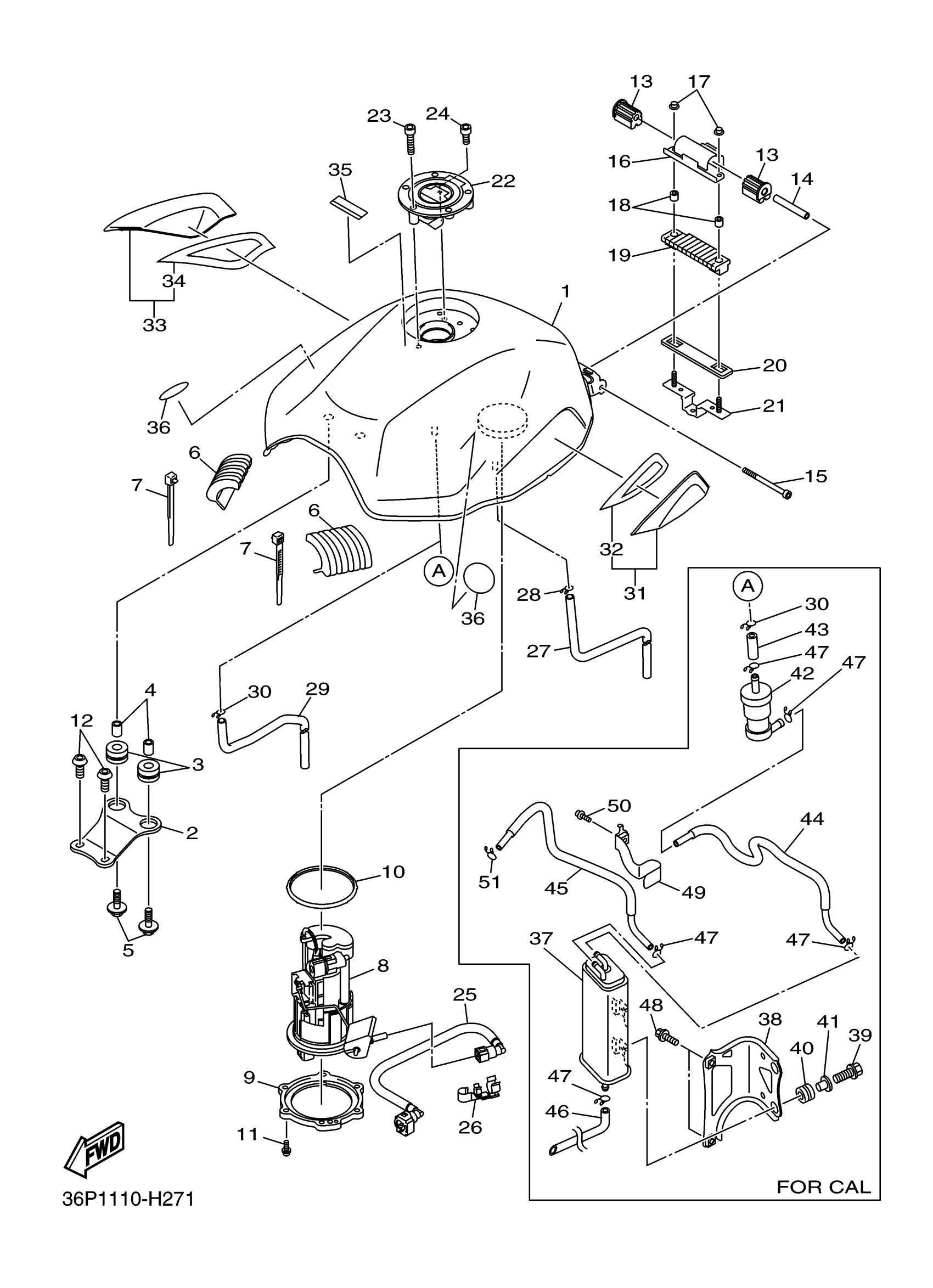

Yamaha FZ6RZCB (FZ6R CA) 36P8 2010 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

20S-WK241-01-P0

$907.99

2

BRACKET, FUEL TANK 1

20S-24191-00-00

Unavailable

3

GROMMET

90480-16010-00

$4.41

4

COLLAR

90387-06068-00

$5.60

5

BOLT, WITH WASHER

90119-06234-00

$5.60

6

DAMPER, LOCATING 3

20S-24183-00-00

Unavailable

7

CLAMP

90465-15011-00

Unavailable

8

FUEL PUMP COMP.

20S-13907-03-00

$513.99

9

BRACKET, FUEL PUMP

13S-24491-00-00

$40.99

10

O-RING

19B-24486-01-00

$43.99

11

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

12

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

13

DAMPER, LOCATING 1

5VX-24181-00-00

$14.49

14

COLLAR(JF3)

90387-061W6-00

Unavailable

15

BOLT, SOCKET

91314-06090-00

$8.49

16

BRACKET, TANK FITTING

20S-2413Y-00-00

Unavailable

17

NUT, FLANGE

95702-06500-00

Unavailable

18

COLLAR (1T2)

90387-07598-00

Unavailable

19

DAMPER, LOCATING 1

20S-24181-00-00

Unavailable

20

DAMPER, PLATE 1

20S-2414H-00-00

Unavailable

21

NUT

20S-21296-00-00

Unavailable

22

CAP ASSY

39P-24602-00-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

24

BOLT, SOCKET

91317-05010-00

Unavailable

25

PIPE, FUEL 1

5VX-13971-00-00

Unavailable

26

CLAMP

90464-16005-00

Unavailable

27

HOSE (L730)

90445-105K7-00

Unavailable

28

CLIP

90467-090A2-00

Unavailable

29

HOSE (L730)

90445-105K7-00

Unavailable

30

CLIP

90467-090A2-00

Unavailable

31

TANK SIDE COVER ASSY 1

20S-24106-01-00

Unavailable

32

TAPE 1

20S-2173T-00-00

Unavailable

33

TANK SIDE COVER ASSY 2

20S-24108-01-00

Unavailable

34

TAPE 2

20S-2173U-00-00

Unavailable

36

EMBLEM

5JW-2413B-00-00

Unavailable
