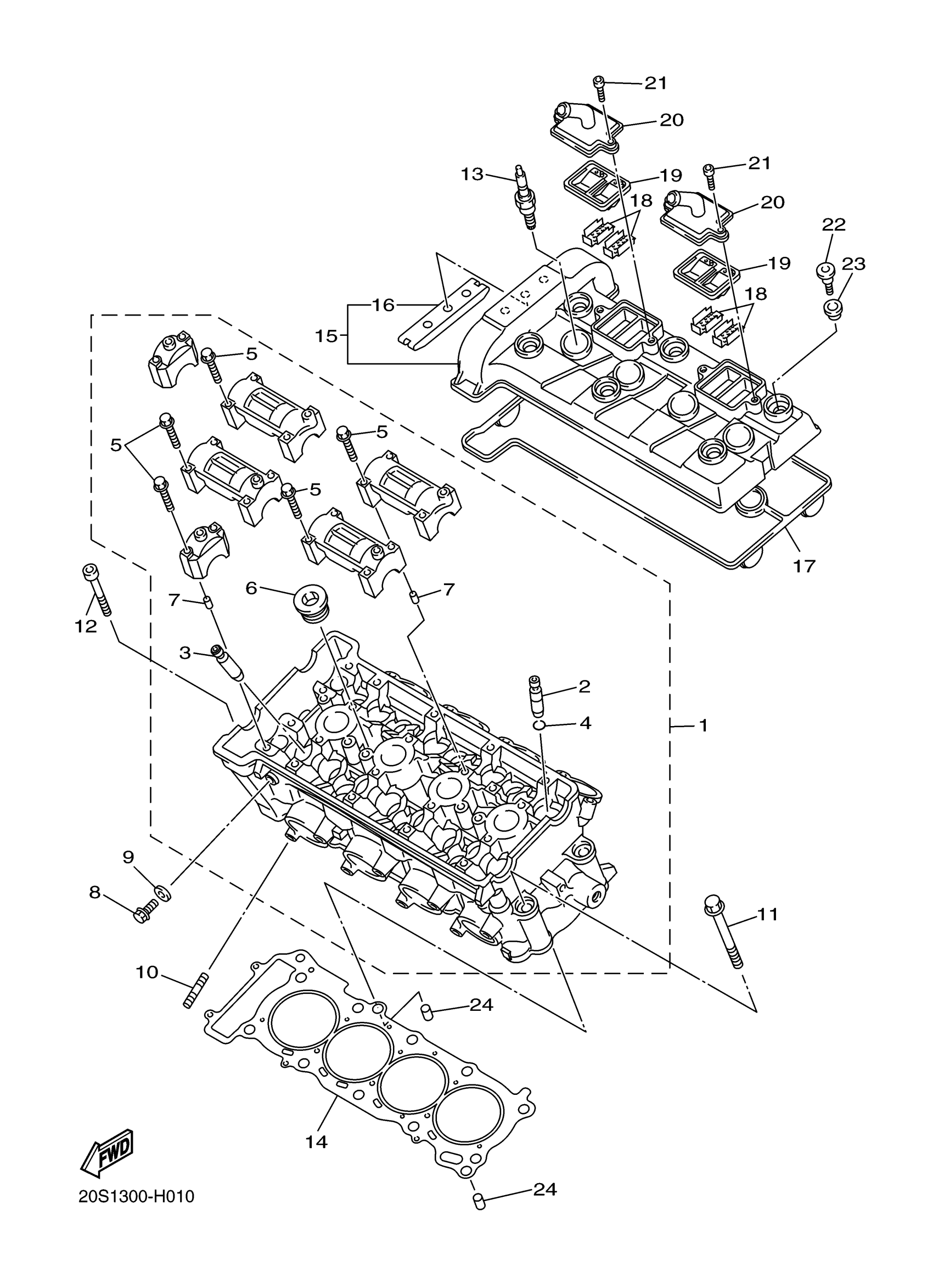

Yamaha FZ6RZCB (FZ6R CA) 36P8 2010 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

20S-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

5EB-11133-10-00

$45.99

3

GUIDE, VALVE 2

20S-11134-10-00

$43.99

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, FLANGE

95022-08012-00

$12.49

9

GASKET

90430-08119-00

$6.62

10

BOLT, STUD

95612-08625-00

$7.49

11

BOLT, WITH WASHER

90119-10003-00

$13.49

12

BOLT

91312-06060-00

$10.49

13

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

13

CR9EIX NGK 4PK

CR9-EIX00-00-00

Unavailable

14

GASKET, CYLINDER HEAD 1

20S-11181-00-00

$77.99

15

COVER, CYLINDER HEAD 1

1B3-11191-00-00

Unavailable

16

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

17

GASKET, HEAD COVER 1

20S-11193-00-00

Unavailable

18

PLATE

5SL-1482K-00-00

Unavailable

19

REED VALVE ASSY

5SL-14890-00-00

Unavailable

20

CAP, CASE

5SL-14899-00-00

Unavailable

21

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

22

BOLT(4BP)

90109-066F0-00

Unavailable

23

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

24

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
