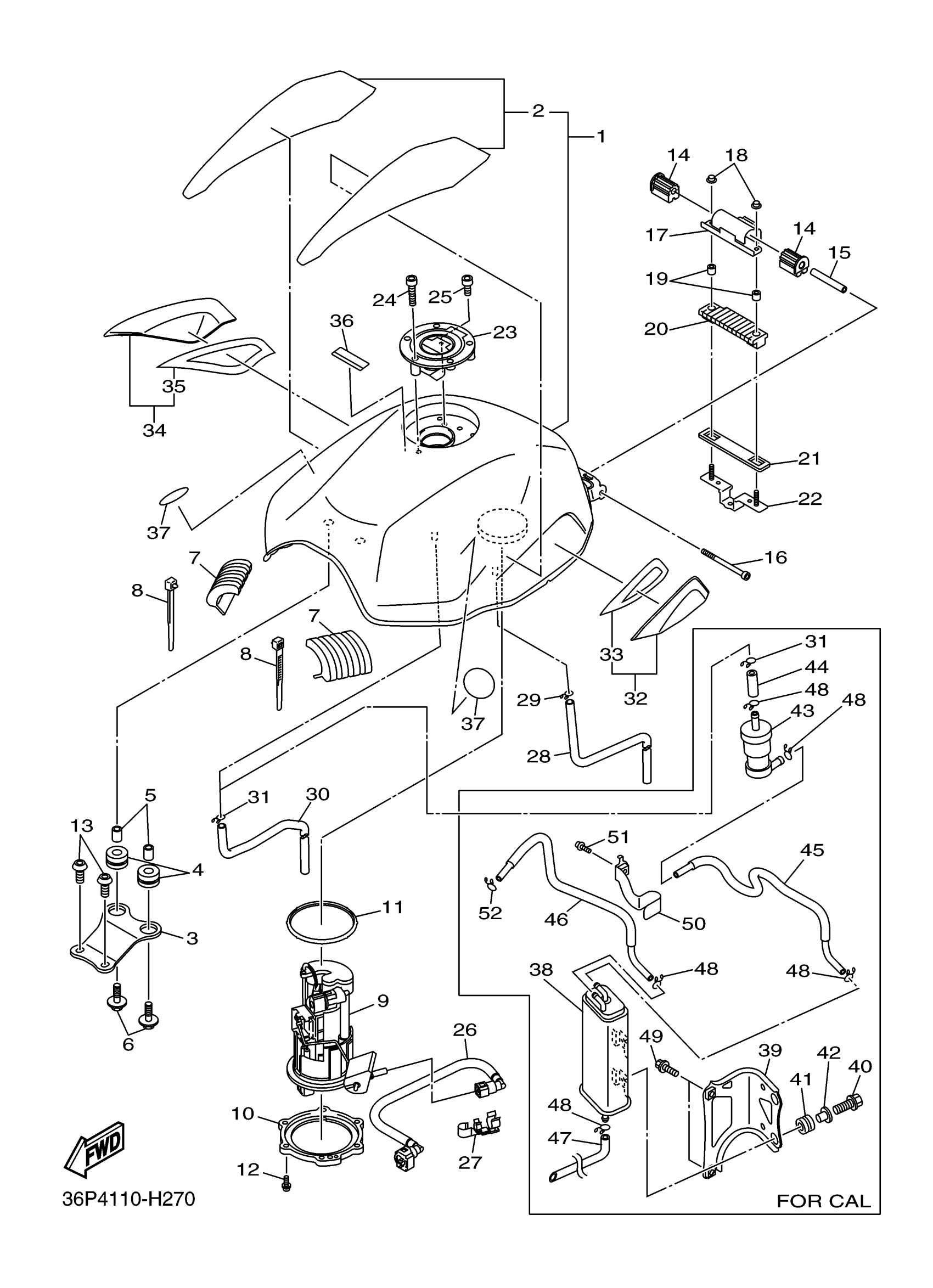

Yamaha FZ6RYY (FZ6R) 36P40 2009 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)
20S-Y2410-00-04
Unavailable
1
FUEL TANK COMP.
20S-YK241-00-P1
Unavailable
2
.. GRAPHIC SET (BLUISH WHITE COCKTAIL 1)
36P-24240-00-00
Unavailable
3
BRACKET, FUEL TANK 1
20S-24191-00-00
Unavailable
7
DAMPER, LOCATING 3
20S-24183-00-00
Unavailable
8
CLAMP
90465-15011-00
Unavailable
15
COLLAR(JF3)
90387-061W6-00
Unavailable
16
BOLT, SOCKET
91314-06090-00
Unavailable
17
BRACKET, TANK FITTING
20S-2413Y-00-00
Unavailable
18
NUT, FLANGE
95702-06500-00
Unavailable
19
COLLAR (1T2)
90387-07598-00
Unavailable
20
DAMPER, LOCATING 1
20S-24181-00-00
Unavailable
21
DAMPER, PLATE 1
20S-2414H-00-00
Unavailable
22
NUT
20S-21296-00-00
Unavailable
23
CAP ASSY
39P-24602-00-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
25
BOLT, SOCKET
91317-05010-00
Unavailable
26
PIPE, FUEL 1
5VX-13971-00-00
Unavailable
27
CLAMP
90464-16005-00
Unavailable
28
HOSE (L730)
90445-105K7-00
Unavailable
29
CLIP
90467-090A2-00
Unavailable
30
HOSE (L730)
90445-105K7-00
Unavailable
31
CLIP
90467-090A2-00
Unavailable
31
CLIP
90467-100A1-00
Unavailable
32
TANK SIDE COVER ASSY 1
20S-24106-01-00
Unavailable
33
TAPE 1
20S-2173T-00-00
Unavailable
34
TANK SIDE COVER ASSY 2
20S-24108-01-00
Unavailable
35
TAPE 2
20S-2173U-00-00
Unavailable
36
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
37
EMBLEM
5JW-2413B-00-00
Unavailable
38
CANISTER ASSY
5C7-24170-00-00
Unavailable
39
BRACKET, CANISTOR
36P-2419F-00-00
Unavailable
40
BOLT, FLANGE
95817-06016-00
Unavailable
41
GROMMET (1E5)
90480-13163-00
Unavailable
42
COLLAR(42G)
90387-062L2-00
Unavailable
43
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
44
HOSE
90445-11065-00
Unavailable
45
PIPE 4
36P-24314-00-00
Unavailable
46
PIPE
36P-14466-00-00
Unavailable
47
PIPE 5
36P-24315-00-00
Unavailable
48
CLIP
90467-100A1-00
Unavailable
49
BOLT, FLANGE
95814-08016-00
Unavailable
50
GUIDE, PIPE
36P-24667-00-00
Unavailable
51
BOLT, FLANGE
95812-06010-00
Unavailable
52
CLIP
90467-100A1-00
Unavailable
