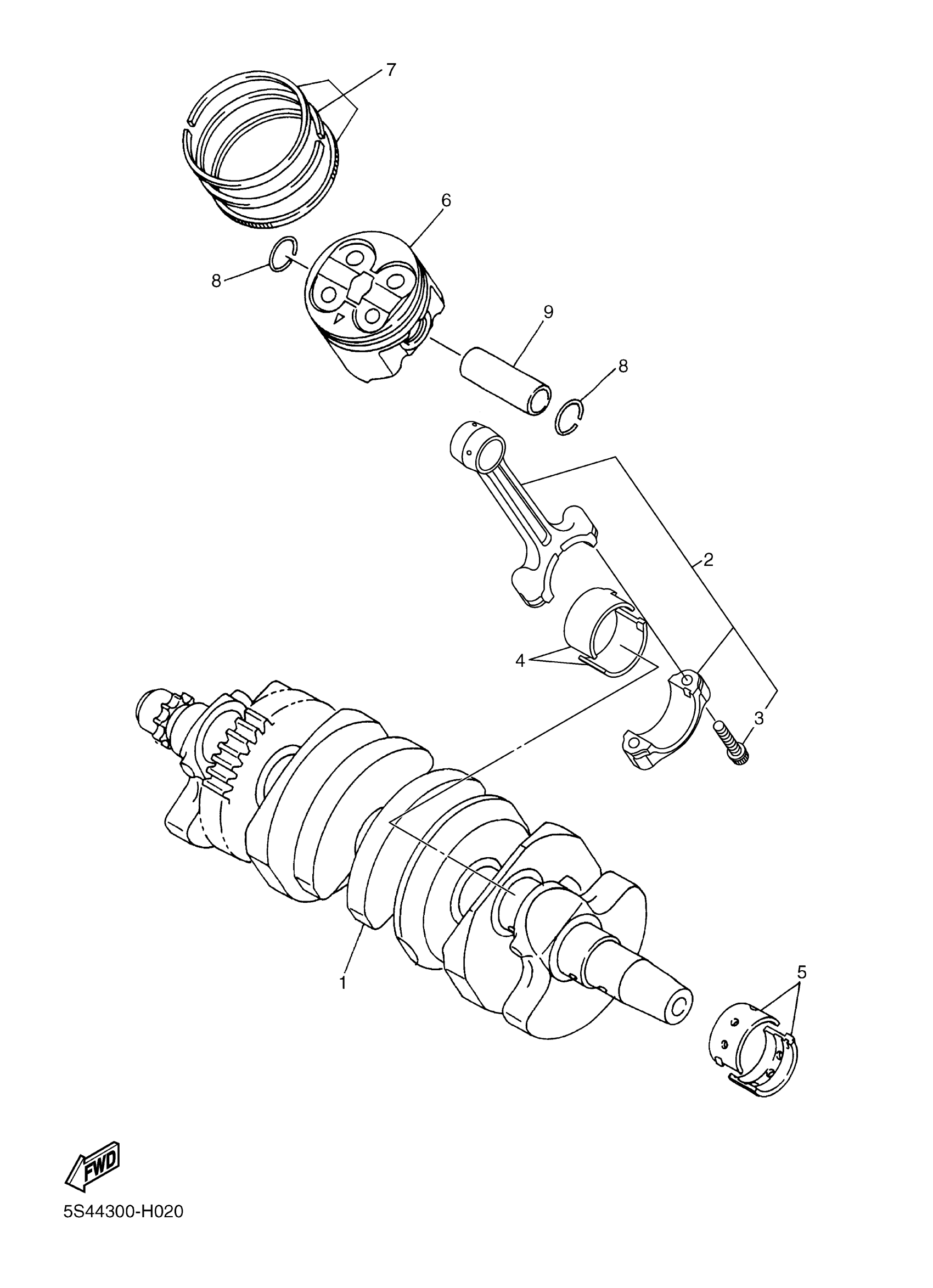

Yamaha FZ6RYY (FZ6R) 36P40 2009 CRANKSHAFT PISTON Diagram

CRANKSHAFT

20S-11411-00-00

Unavailable

CONNECTING ROD ASSY

5VX-11650-00-00

$127.99

BOLT, CONNECTING ROD

5VX-11654-00-00

Unavailable

PLANE BEARING, CONNECTING ROD

5VX-11656-00-00

$27.99

PLANE BEARING, CONNECTING ROD

5VX-11656-10-00

$20.99

PLANE BEARING, CONNECTING ROD

5VX-11656-20-00

$20.99

PLANE BEARING, CONNECTING ROD

5VX-11656-30-00

$20.99

PLANE BEARING, CRANKSHAFT 1

5EB-11416-00-00

$28.99

PLANE BEARING, CRANKSHAFT 1

5EB-11416-10-00

$28.99

PLANE BEARING, CRANKSHAFT 1

5EB-11416-20-00

$28.99

PLANE BEARING, CRANKSHAFT 1

5EB-11416-30-00

$28.99

PLANE BEARING, CRANKSHAFT 1

5EB-11416-A0-00

Unavailable

PISTON (STD)

5SL-11631-00-00

$129.99

PISTON RING SET (STD)

20S-11603-00-00

$68.99

CIRCLIP(1AR)

93450-17129-00

$4.14

PIN, PISTON

20S-11633-00-00

Unavailable
