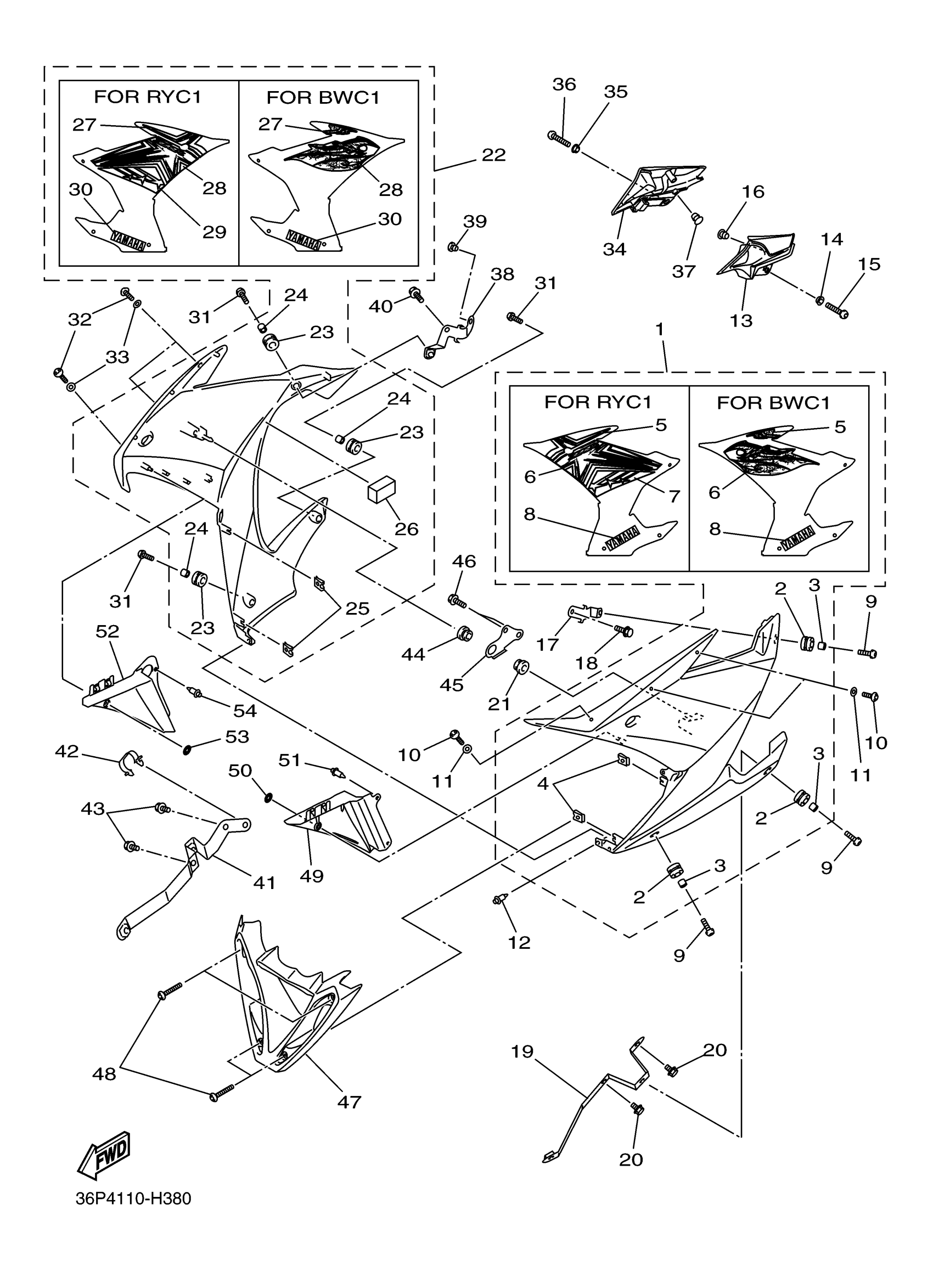

Yamaha FZ6RYY (FZ6R) 36P40 2009 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (REDDISH YELLOW COCKTAIL 1)
36P-Y283U-20-P2
Unavailable
1
PANEL ASSEMBLY 1
36P-Y283U-30-P3
Unavailable
5
GRAPHIC 14
36P-2831Y-00-00
Unavailable
5
GRAPHIC, 10
36P-2839G-00-00
Unavailable
6
. GRAPHIC 16 (BLUISH WHITE COCKTAIL 1)
36P-2832C-00-00
Unavailable
6
. GRAPHIC, 12 (REDDISH YELLOW COCKTAIL 1)
36P-2832K-00-00
Unavailable
7
. GRAPHIC 18 (REDDISH YELLOW COCKTAIL 1)
36P-2832P-00-00
Unavailable
8
. EMBLEM, YAMAHA
36P-2153E-20-00
Unavailable
9
SCREW(4DN)
90149-06302-00
Unavailable
13
MOLE, SIDE COVER 3
36P-2171N-00-00
Unavailable
14
COLLAR
90387-06130-00
Unavailable
15
SCREW(4DN)
90149-06302-00
Unavailable
16
PLUG 288833190000
90338-07043-00
Unavailable
17
BRACKET 7
36P-2833A-00-00
Unavailable
18
BOLT, FLANGE
95817-06014-00
Unavailable
19
BRACKET 1
36P-2836A-01-00
Unavailable
20
BOLT(1KT)
90109-060E9-00
Unavailable
21
GROMMET(4DN)
90480-01558-00
Unavailable
22
PANEL ASSEMBLY 2
36P-Y283V-20-P2
Unavailable
22
PANEL ASSEMBLY 2
36P-Y283V-30-P3
Unavailable
26
PLATE 1
2C0-2162G-00-00
Unavailable
27
GRAPHIC15
36P-2832B-00-00
Unavailable
27
GRAPHIC 11
36P-2839J-00-00
Unavailable
28
GRAPHIC 17
36P-2832D-00-00
Unavailable
28
GRAPHIC, 13
36P-2832L-00-00
Unavailable
29
. GRAPHIC, 19 (REDDISH YELLOW COCKTAIL 1)
36P-283B3-00-00
Unavailable
30
. EMBLEM, YAMAHA
36P-2153E-20-00
Unavailable
31
SCREW(4DN)
90149-06302-00
Unavailable
34
MOLE, SIDE COVER 4
36P-2171R-00-00
Unavailable
35
COLLAR
90387-06130-00
Unavailable
36
SCREW(4DN)
90149-06302-00
Unavailable
37
PLUG 288833190000
90338-07043-00
Unavailable
38
BRACKET 8
36P-2833E-00-00
Unavailable
39
PLUG(7Y6)
90338-07157-00
Unavailable
40
BOLT, FLANGE
95817-06014-00
Unavailable
41
BRACKET 2
36P-2836E-01-00
Unavailable
42
CLAMP(4NK)
90464-24230-00
Unavailable
43
BOLT(1KT)
90109-060E9-00
Unavailable
44
GROMMET(4DN)
90480-01558-00
Unavailable
45
STAY, 4
20S-21843-00-00
Unavailable
46
BOLT, FLANGE
95817-06014-00
Unavailable
47
COVER, UNDER
36P-22863-00-00
Unavailable
48
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
49
PANEL, INNER 4
36P-2836N-00-00
Unavailable
50
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
52
PANEL, INNER 5
36P-2836R-00-00
Unavailable
53
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
