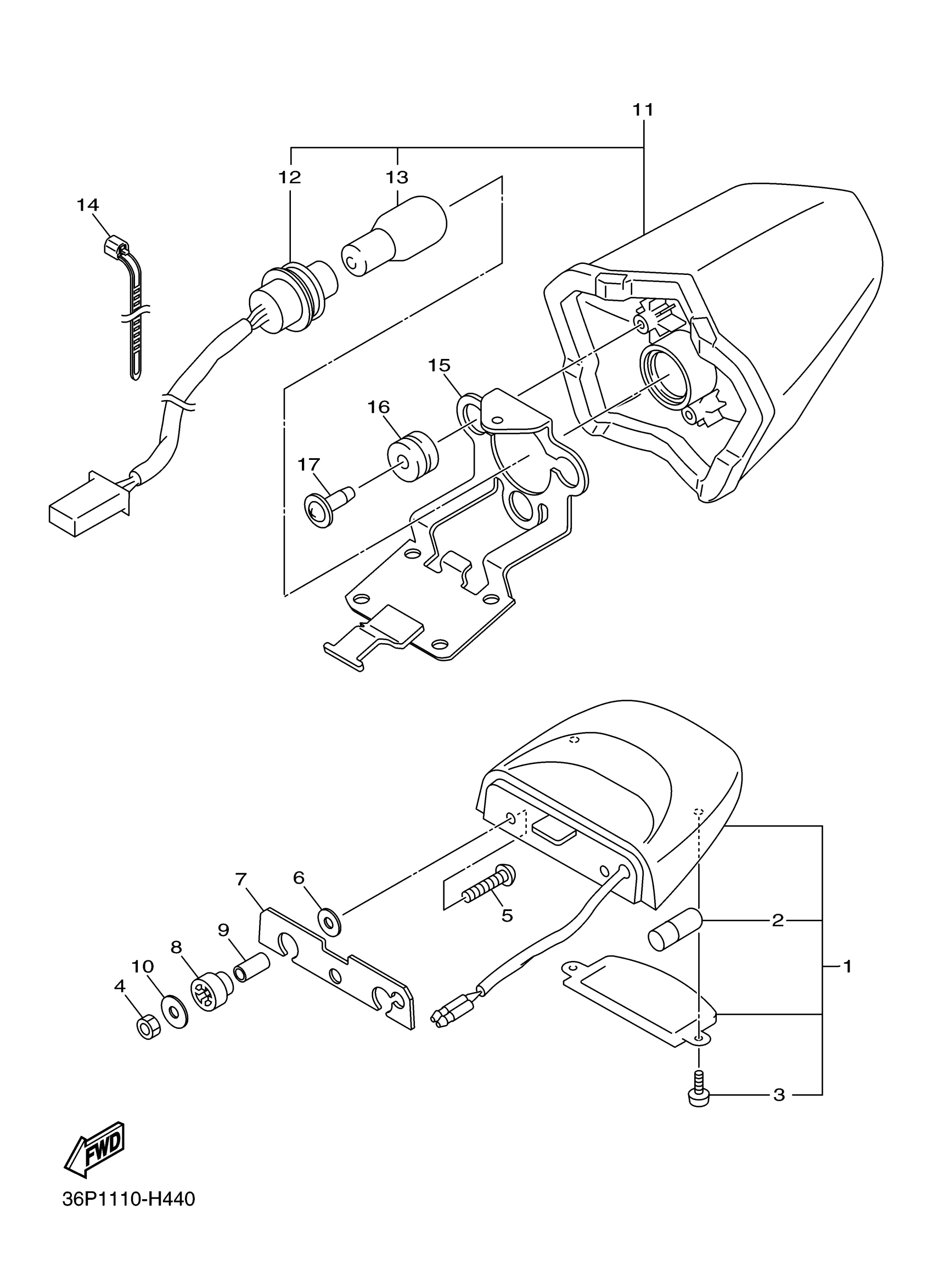

Yamaha FZ6RHS (FZ6R) 2SRD 2017 TAILLIGHT Diagram

#

Description
Price

1

LICENCE LIGHT UNIT ASSY

5VX-84745-01-00

$98.99

2

BULB

4SV-84347-00-00

$8.99

3

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

4

NUT, U

95617-05100-00

$9.49

5

BOLT

90111-05010-00

$7.49

6

WASHER, PLATE

90201-05043-00

$7.49

7

DAMPER

20S-84753-00-00

Unavailable

8

DAMPER

3F9-84553-00-00

Unavailable

9

COLLAR

90387-05049-00

Unavailable

10

WASHER, PLATE

90201-05025-00

$5.60

11

TAILLIGHT UNIT ASSY

20S-84710-00-00

Unavailable

12

CORD ASSY

20S-84735-00-00

Unavailable

13

BULB, FLASHER

3P6-83331-10-00

Unavailable

14

CLAMP

90464-25004-00

$4.19

15

BRACKET, TAILLIGHT

36P-84519-00-00

Unavailable

16

GROMMET (4L0)

90480-18276-00

Unavailable

17

SCREW, TAPPING

90164-05001-00

Unavailable
