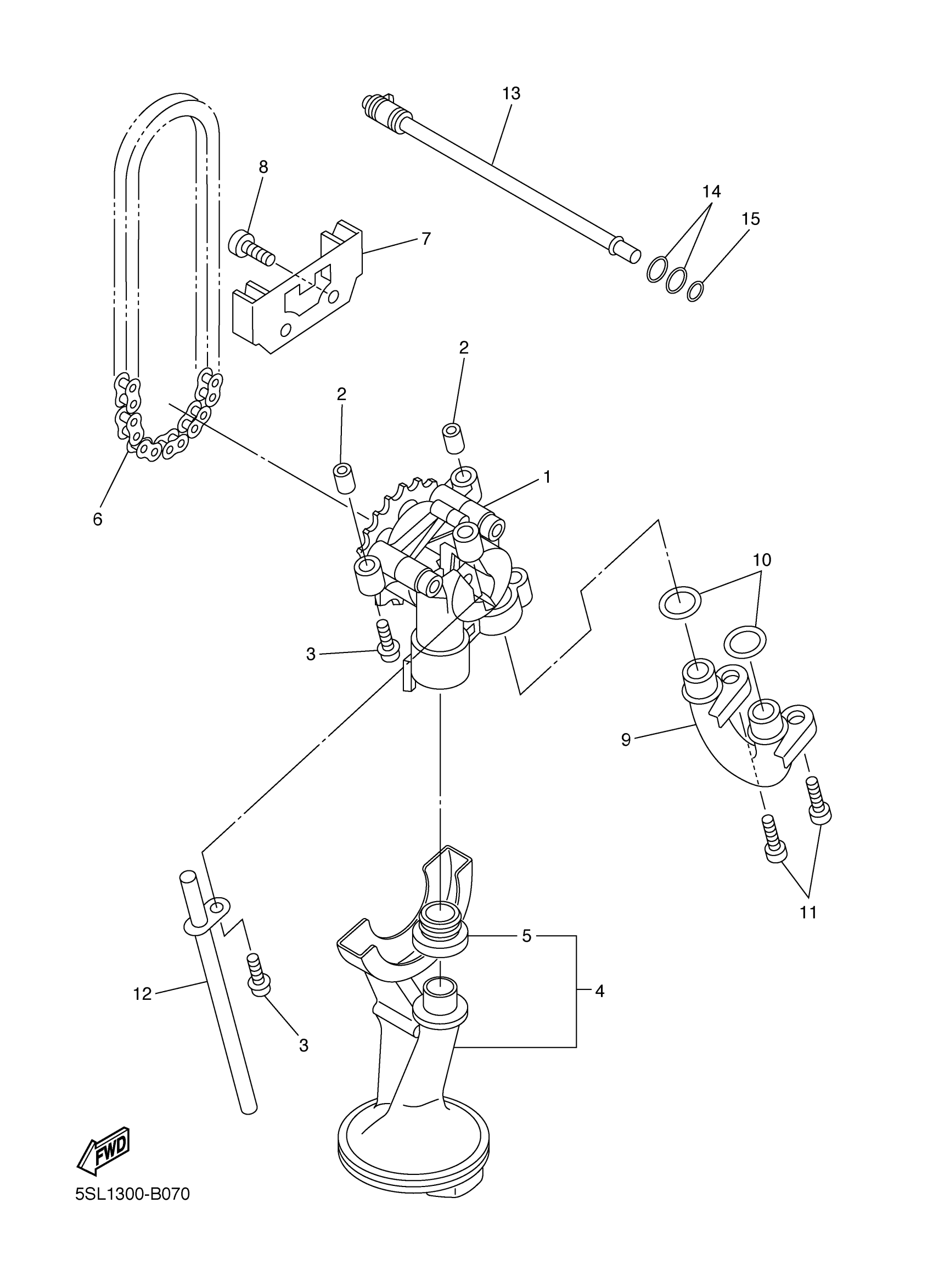

Yamaha FZ6RGCB (FZ6R CA) 2SRB 2016 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5MT-13300-00-00

Unavailable

2

PIN, DOWEL

91808-17032-00

$5.60

3

BOLT, FLANGE

95812-06030-00

$8.49

4

STRAINER HOUSING ASSY

5SL-13410-00-00

$41.99

5

SEAL, OIL STRAINER

5EB-13415-00-00

Unavailable

6

CHAIN

94580-25080-00

Unavailable

7

HOLDER

5EB-13898-00-00

Unavailable

8

BOLT,SOCKET

91317-06016-00

$1.25

9

PIPE, OIL 1

2C0-13416-00-00

Unavailable

10

O-RING

93210-14003-00

$8.49

11

BOLT,SOCKET

91317-06016-00

$1.25

12

PIPE, DELIVERY 1

5EB-13161-00-00

Unavailable

13

PIPE, DELEVERY 5

5EB-1316E-00-00

$67.99

14

O-RING (1J7)

93210-09350-00

$7.49

15

O-RING(26H)

93210-06667-00

$7.49
