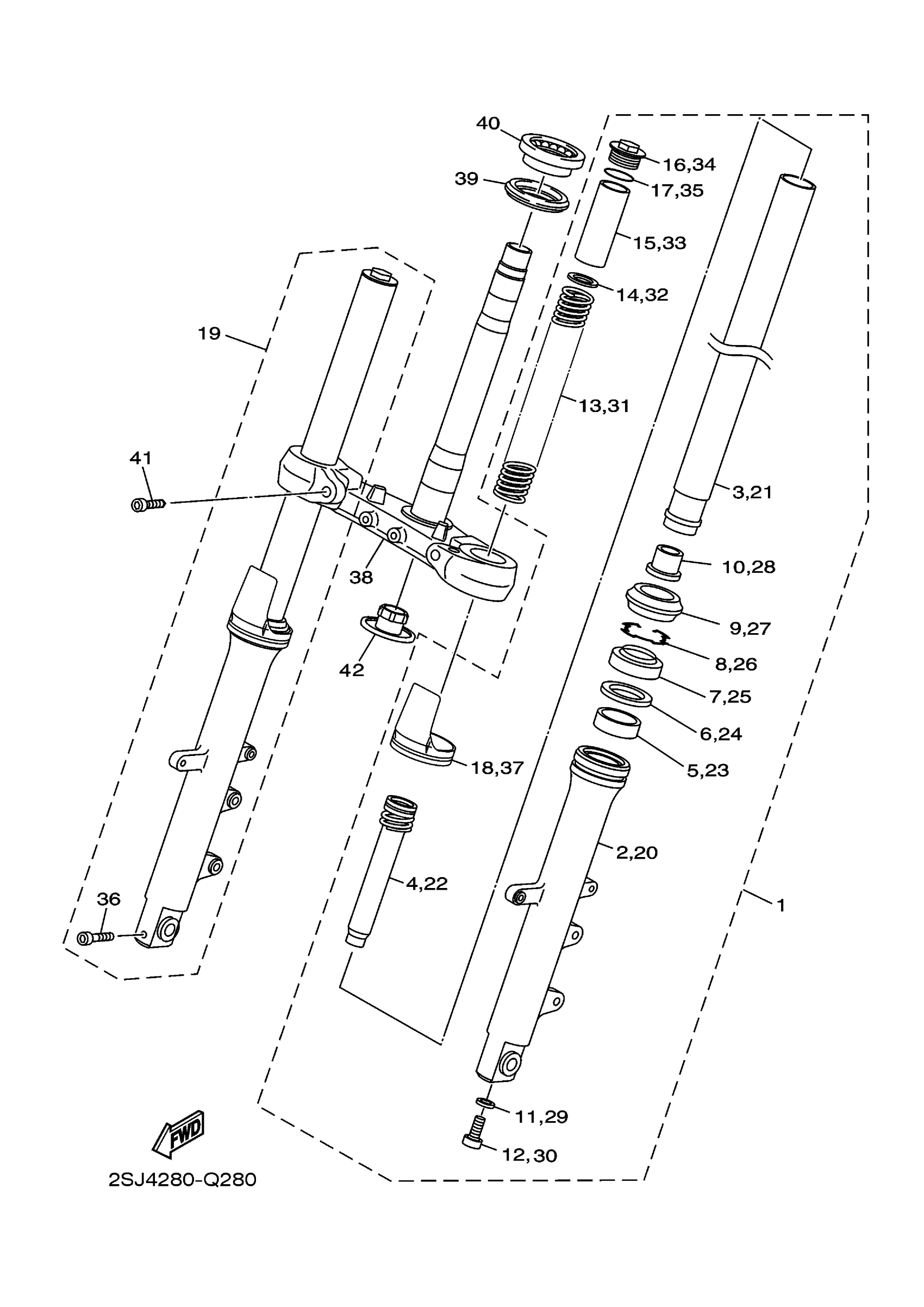

Yamaha FZ6RGCB (FZ6R CA) 2SRB 2016 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

B40-23102-00-00

Unavailable

2

TUBE, OUTER (L.H)

B40-23126-00-00

Unavailable

3

INNER TUBE COMP.1

B40-23110-00-00

Unavailable

4

CYLINDER COMP., FRONT FORK

B40-23170-00-00

Unavailable

5

METAL, SLIDE 1

4FM-23125-40-00

$27.32

6

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

7

OIL SEAL

4EB-23145-01-00

$22.64

8

CLIP, OIL SEAL

26H-23156-00-00

$6.17

9

SEAL, DUST

4EB-23144-00-00

$18.18

10

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

SPRING, FRONT FORK

B40-23141-00-00

Unavailable

14

WASHER, SPRING UPPER

3EN-23149-50-00

$2.60

15

SPACER

4DW-23118-40-00

Unavailable

16

BOLT, CAP

1D0-23111-00-00

Unavailable

17

O-RING

43F-23188-10-00

Unavailable

18

COVER

4PU-2331G-00-00

Unavailable

19

FRONT FORK ASSY (R.H)

B40-23103-00-00

Unavailable

20

TUBE, OUTER

B40-23136-00-00

Unavailable

21

INNER TUBE COMP.1

B40-23110-00-00

Unavailable

22

CYLINDER COMP., FRONT FORK

B40-23170-00-00

Unavailable

23

METAL, SLIDE 1

4FM-23125-40-00

$27.32

24

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

25

OIL SEAL

4EB-23145-01-00

$22.64

26

CLIP, OIL SEAL

26H-23156-00-00

$6.17

27

SEAL, DUST

4EB-23144-00-00

$18.18

28

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

29

GASKET

509-23158-L0-00

$13.39

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

31

SPRING, FRONT FORK

B40-23141-00-00

Unavailable

32

WASHER, SPRING UPPER

3EN-23149-50-00

$2.60

33

SPACER

4DW-23118-40-00

Unavailable

34

BOLT, CAP

1D0-23111-00-00

Unavailable

35

O-RING

43F-23188-10-00

Unavailable

36

BOLT,SOCKET

91314-08040-00

Unavailable

37

COVER

4PU-2331G-00-00

Unavailable

38

UNDER BRACKET COMP.

B40-23340-00-00

Unavailable

39

SEAL, STEERING

3FV-23462-00-00

Unavailable

40

BEARING(3FV)

93399-99932-00

Unavailable

41

BOLT,SOCKET

91314-10025-00

Unavailable

42

COVER, LOWER 1

4KM-23123-01-00

Unavailable

43

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
