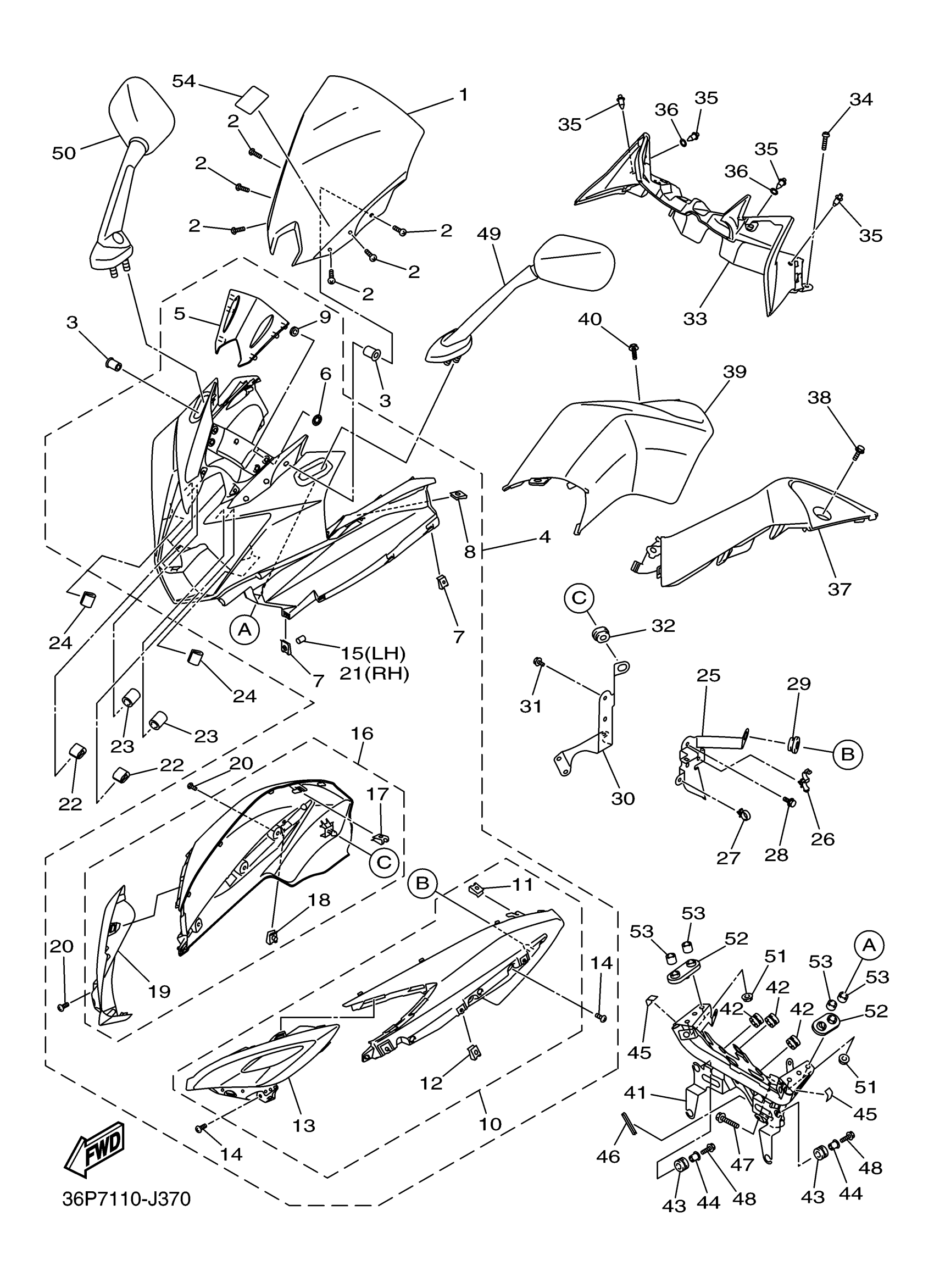

Yamaha FZ6RGCB (FZ6R CA) 2SRB 2016 COWLING 1 Diagram
#
5
COVER, METER
36P-83559-00-00
Unavailable
16
BOX SUB ASSY
36P-2830R-01-00
Unavailable
19
GRILL, AIR INTAKE 2
36P-2837R-00-00
Unavailable
22
TRIM
20S-28376-00-00
Unavailable
23
HOSE
90445-08029-00
Unavailable
24
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
25
BRACKET 5
36P-2172R-01-00
Unavailable
26
CLAMP
90464-16006-00
Unavailable
27
CLAMP(3XV)
90464-15157-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
Unavailable
29
GROMMET(4DN)
90480-01558-00
Unavailable
30
BRKT 6
36P-2172T-01-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
32
GROMMET(4DN)
90480-01558-00
Unavailable
33
PANEL, INNER 1
36P-2836K-00-00
Unavailable
34
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
35
RIVET
90269-06008-00
Unavailable
36
WASHER, PLATE
90202-06004-00
Unavailable
37
PANEL, INNER 2
36P-2836L-00-00
Unavailable
38
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
39
PANEL, INNER 3
36P-2836M-00-00
Unavailable
40
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
41
STAY 1
36P-28356-01-00
Unavailable
42
DAMPER
3C3-83513-00-00
Unavailable
43
GROMMET
90480-14004-00
Unavailable
44
COLLAR 437216330000
90387-07391-00
Unavailable
45
DAMPER 5
36P-2837J-00-00
Unavailable
46
MOLE 4
2S3-28348-00-00
Unavailable
47
BOLT, FLANGE
95822-08035-00
Unavailable
48
BOLT, FLANGE
95822-06025-00
Unavailable
49
REAR VIEW MIRROR ASSY (LEFT)
36P-26280-01-00
Unavailable
50
REAR VIEW MIRROR ASSY (RIGHT)
36P-26290-01-00
Unavailable
51
NUT, FLANGE
95702-06500-00
Unavailable
52
PLATE, MIRROR FITTING 1
3C3-26298-00-00
Unavailable
53
COLLAR(J45)
90387-064T3-00
Unavailable
54
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
Unavailable
