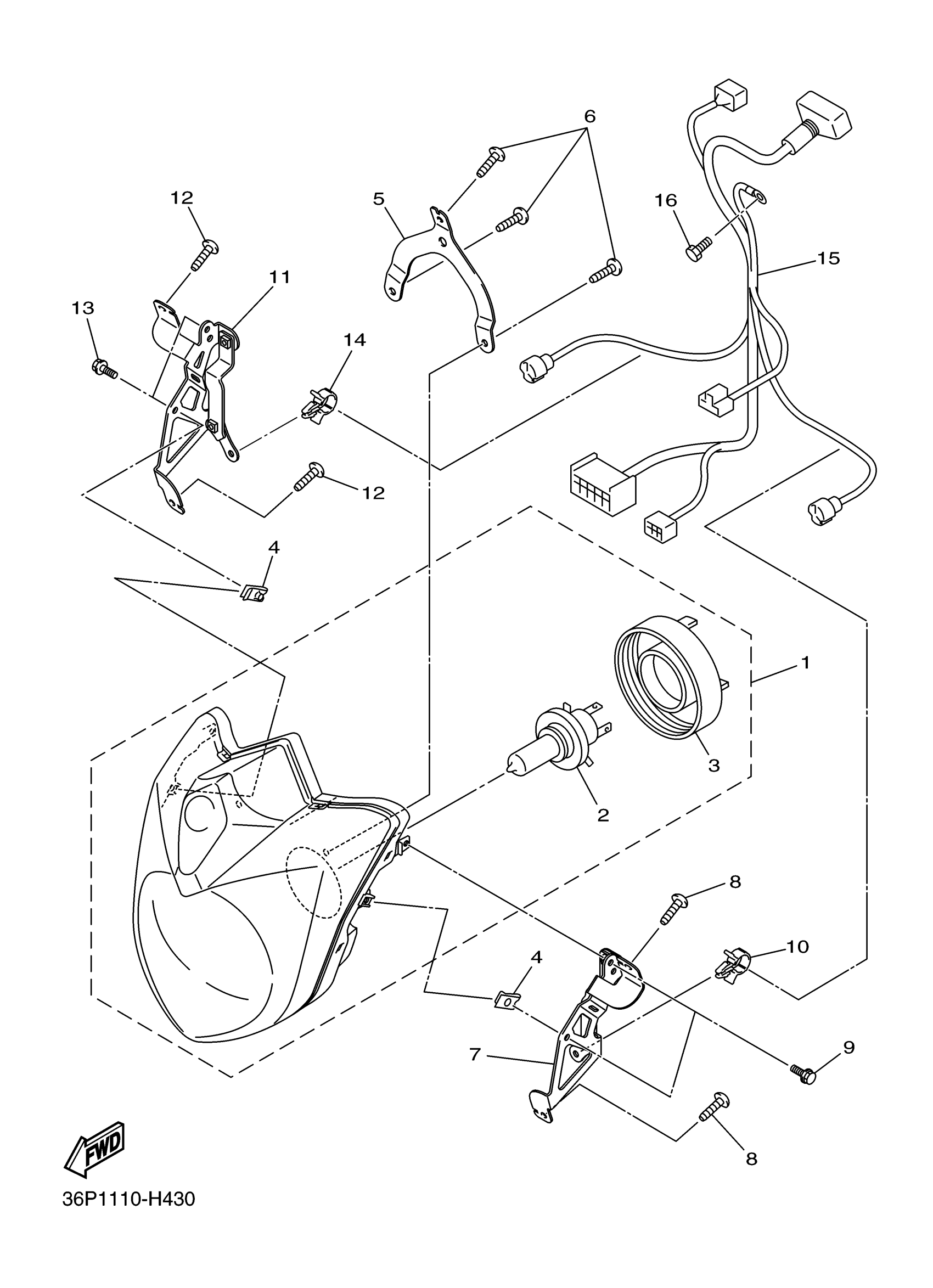

Yamaha FZ6RFR (FZ6R) 2SR7 2015 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

36P-84300-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

3

COVER, SOCKET

5JW-84397-00-00

Unavailable

4

NUT, SPRING(4ES)

90183-06069-00

$5.69

5

PLATE 1

36P-28396-01-00

Unavailable

6

SCREW, TAPPING

97702-50016-00

$1.85

7

STAY, HEADLIGHT 1

36P-84118-00-00

Unavailable

8

SCREW, TAPPING

97702-50016-00

$1.85

9

BOLT, FLANGE

95817-06012-00

$1.40

10

CLAMP(3XV)

90464-15157-00

$5.75

11

STAY, HEADLIGHT 2

36P-84119-00-00

Unavailable

12

SCREW, TAPPING

97702-50016-00

$1.85

13

BOLT, FLANGE

95817-06012-00

$1.40

14

CLAMP(3XV)

90464-15157-00

$5.75

15

CORD, HEADLIGHT

36P-84359-00-00

$95.39

16

BOLT,SOCKET

91380-05008-00

Unavailable
