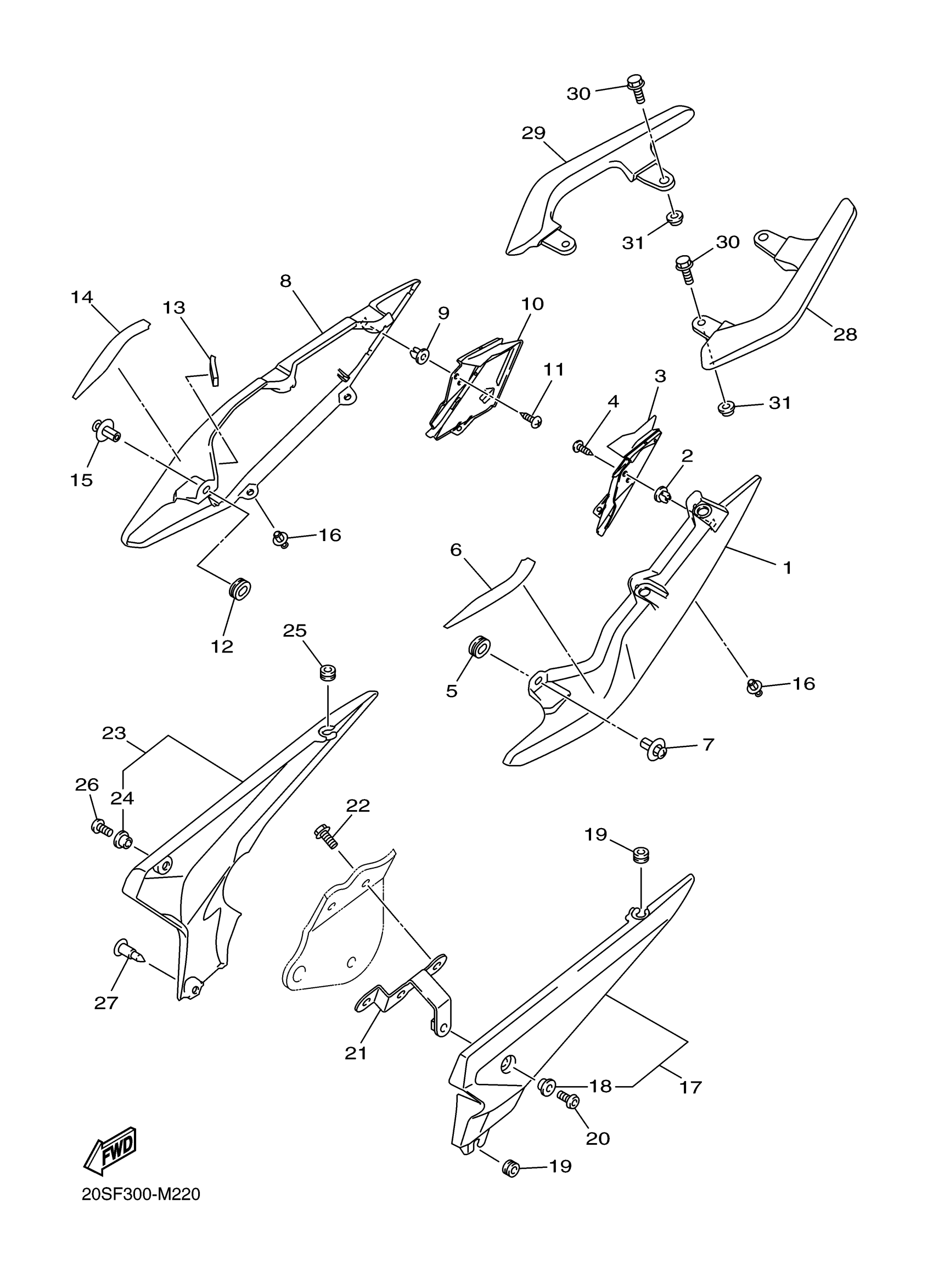

Yamaha FZ6RER (FZR6) 2SR4 2014 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

20S-21711-00-P5

Unavailable

2

GROMMET

90480-08005-00

$8.49

3

COVER, REAR FENDER 1

20S-2163A-10-00

Unavailable

4

SCREW, TRUSS TAP.

97707-50014-00

$8.49

5

DAMPER

5PW-2174X-00-00

$6.99

6

SEAL 1

20S-21732-00-00

Unavailable

7

RIVET(4JH)

90269-07076-00

$7.49

8

COVER, SIDE 2

20S-21721-00-P5

Unavailable

9

GROMMET

90480-08005-00

$8.49

10

COVER, REAR FENDER 2

20S-2163E-10-00

Unavailable

11

SCREW, TRUSS TAP.

97707-50014-00

$8.49

12

DAMPER

5PW-2174X-00-00

$6.99

13

DAMPER, LOCATING 2

4C8-24182-00-00

$7.99

14

SEAL 2

20S-21735-00-00

Unavailable

15

RIVET(4JH)

90269-07076-00

$7.49

16

RIVET(4PH)

90269-07077-00

Unavailable

17

SIDE COVER ASSY 3

20S-21730-00-00

Unavailable

18

COLLAR

90387-06130-00

Unavailable

19

GROMMET (17J)

90480-10334-00

Unavailable

20

BOLT

90111-06038-00

Unavailable

21

BRKT 7

20S-2172U-00-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

SIDE COVER ASSY 4

20S-21740-00-00

Unavailable

24

COLLAR

90387-06130-00

Unavailable

25

GROMMET (17J)

90480-10334-00

Unavailable

26

BOLT

90111-06038-00

Unavailable

27

RIVET

90269-07008-00

Unavailable

28

ASSIST GRIP

20S-2474A-11-00

Unavailable

29

ASSIST,GRIP 2

20S-2474W-11-00

Unavailable

30

BOLT, BUTTON

92017-08025-00

Unavailable

31

COLLAR

90387-08089-00

Unavailable
