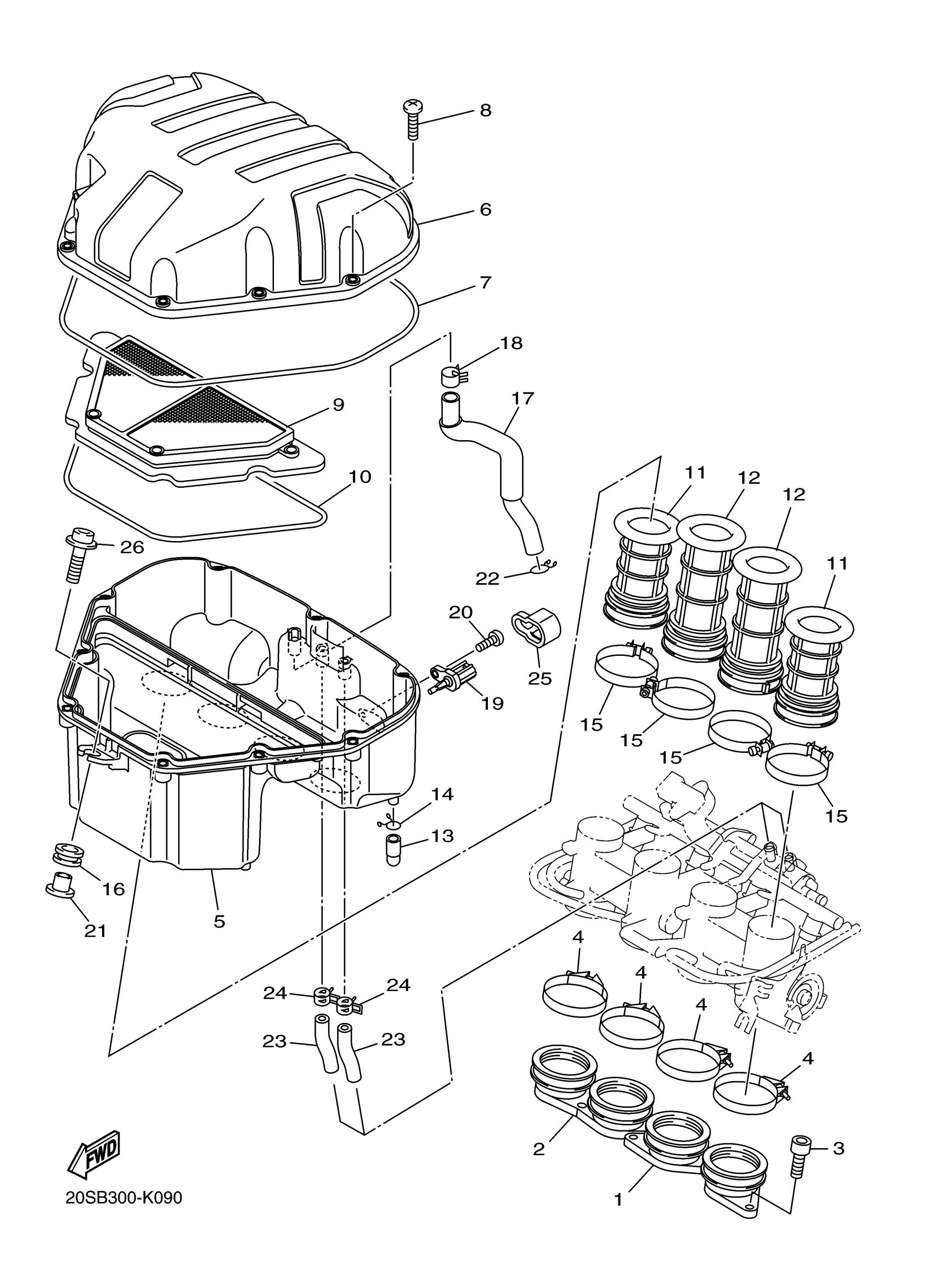

Yamaha FZ6RECB (FZR6 CA) 2SR2 2014 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

20S-13586-00-00

Unavailable

2

JOINT, CARBURETOR 2

20S-13596-00-00

Unavailable

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

HOSE CLAMP ASSY

90450-63006-00

Unavailable

5

CASE, AIR CLEANER 1

20S-14411-00-00

Unavailable

6

CASE, AIR CLEANER 2

20S-14421-01-00

Unavailable

7

SEAL

20S-14452-00-00

$15.49

8

SCREW, BIND

98902-05020-00

$1.71

9

ELEMENT, AIR CLEANER

20S-14451-01-00

$48.99

10

SEAL

20S-14457-00-00

$11.99

11

JOINT, AIR CLEANER 1

20S-14453-00-00

$18.49

12

JOINT, AIR CLEANER 2

20S-14463-00-00

Unavailable

13

PIPE, DRAIN

4D9-1443E-00-00

Unavailable

14

CLIP

90467-100A1-00

$7.49

15

HOSE CLAMP ASSY

90450-53007-00

$8.49

16

GROMMET(3AA)

90480-12497-00

Unavailable

17

PIPE, BREATHER

20S-15373-00-00

Unavailable

18

CLIP

90467-15001-00

Unavailable

19

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

20

SCREW, BIND(3XC)

98904-05012-00

Unavailable

21

COLLAR

90387-06205-00

Unavailable

22

CLIP (371)

90467-14015-00

Unavailable

23

PIPE

5VX-14148-01-00

Unavailable

24

CLIP

90467-17003-00

Unavailable

25

HOLDER

20S-1445C-01-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable
