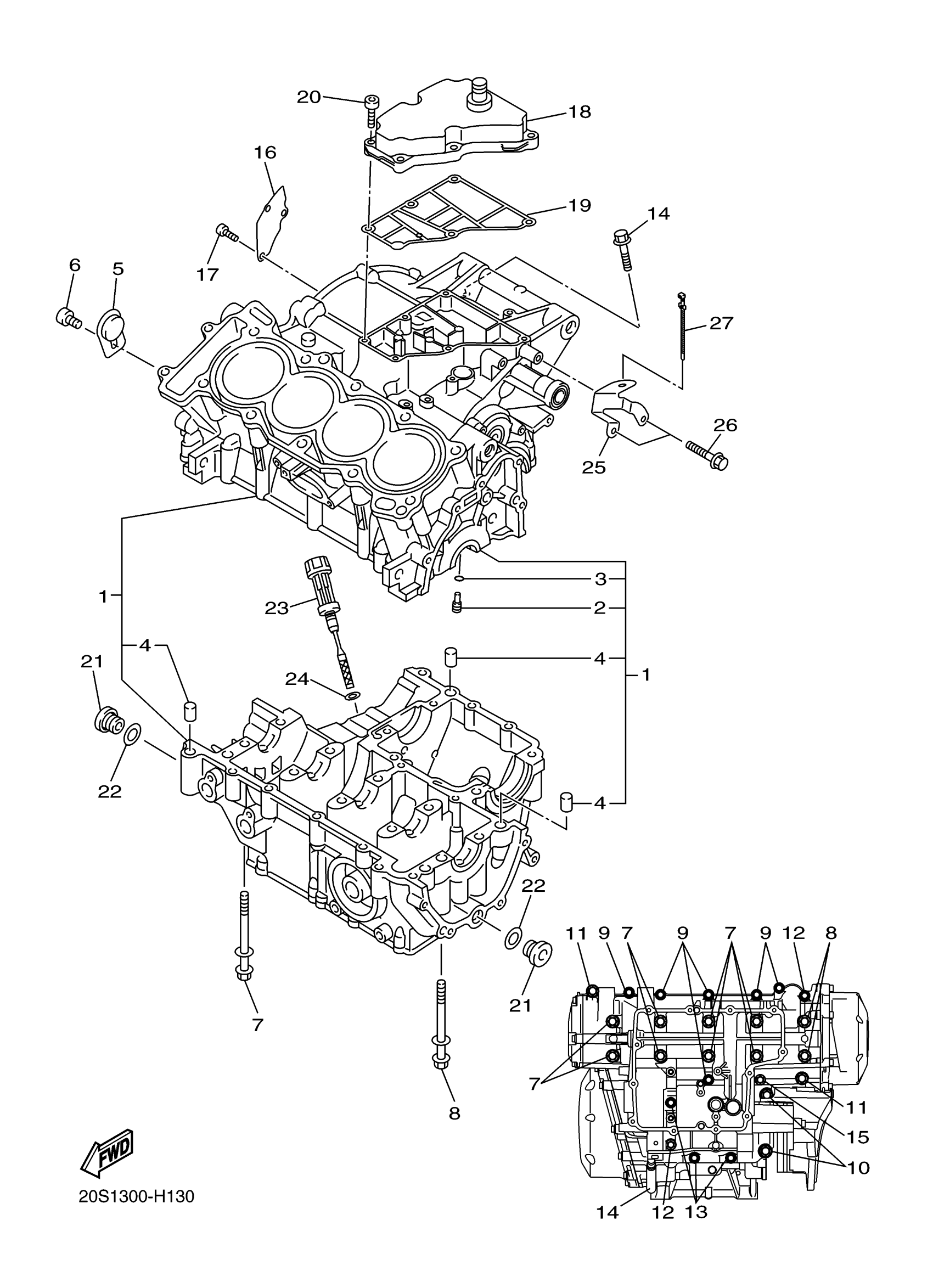

Yamaha FZ6RECB (FZR6 CA) 2SR2 2014 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

20S-15100-09-00

$1,585.99

2

NOZZLE 3

5EB-15155-00-00

$14.49

3

O-RING (210)

93210-04092-00

$3.76

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

PLUG

5SL-15189-00-00

$2.34

6

SCREW

90149-06081-00

$8.49

7

BOLT, WITH WASHER

90119-08083-00

$7.49

8

BOLT, WITH WASHER

90119-08084-00

Unavailable

9

BOLT, FLANGE

95812-06055-00

$1.75

10

BOLT, FLANGE

95814-08065-00

$4.99

11

. BOLT

90109-06168-00

Unavailable

12

BOLT, FLANGE

95812-06065-00

Unavailable

13

BOLT, FLANGE

95817-06045-00

$8.49

14

BOLT, FLANGE

95812-06100-00

Unavailable

15

BOLT, FLANGE

90105-06147-00

Unavailable

16

PLATE, BREATHER

20S-11165-00-00

Unavailable

17

SCREW

90149-06081-00

$8.49

18

COVER

20S-15413-00-00

Unavailable

19

GASKET, CRANKCASE COVER 3

20S-15462-00-00

Unavailable

20

BOLT,SOCKET

91317-06025-00

Unavailable

21

PLUG

36Y-15189-01-00

Unavailable

22

O-RING(1L9)

93210-16325-00

Unavailable

23

PLUG, OIL LEVEL

5EB-15362-10-00

Unavailable

24

O-RING (1J7)

93210-09350-00

Unavailable

25

STAY 1

20S-15544-00-00

Unavailable

26

BOLT, FLANGE

95022-06012-00

Unavailable

27

CLAMP

90464-34002-00

Unavailable
