Description

Price

1

REAR ARM COMP.

20S-22110-30-00

$385.99

2

BUSH 2

5VK-22124-00-00

Unavailable

3

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

4

OIL SEAL (23X)

93106-22019-00

$11.49

5

COVER

30X-2219X-00-00

$16.49

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

7

SEAL, GUARD

20S-22151-00-00

Unavailable

8

BOLT, WITH WASHER

90119-06147-00

$1.13

9

COLLAR

90387-06133-00

$5.60

10

SHAFT, PIVOT

1AE-22141-01-00

Unavailable

11

NUT, SELF-LOCKING

90185-14012-00

$22.99

12

CASE, CHAIN

20S-22311-01-00

$67.99

13

COLLAR

90387-06130-00

$9.49

14

BOLT, BUTTON HEAD

92012-06020-00

$8.49

15

BOLT, WITH WASHER

90119-06155-00

$8.49

16

RIVET(4JH)

90269-07076-00

Unavailable

17

COVER, DUST

20S-22325-01-00

Unavailable

18

BOLT, WITH WASHER

90119-06155-00

$8.49

19

RIVET

90269-08001-00

Unavailable

20

CLAMP

90464-16011-00

Unavailable

21

LABEL, TIRE

3XW-21668-A1-00

Unavailable

22

PLATE, ROUTING 2

5SL-21686-00-00

Unavailable

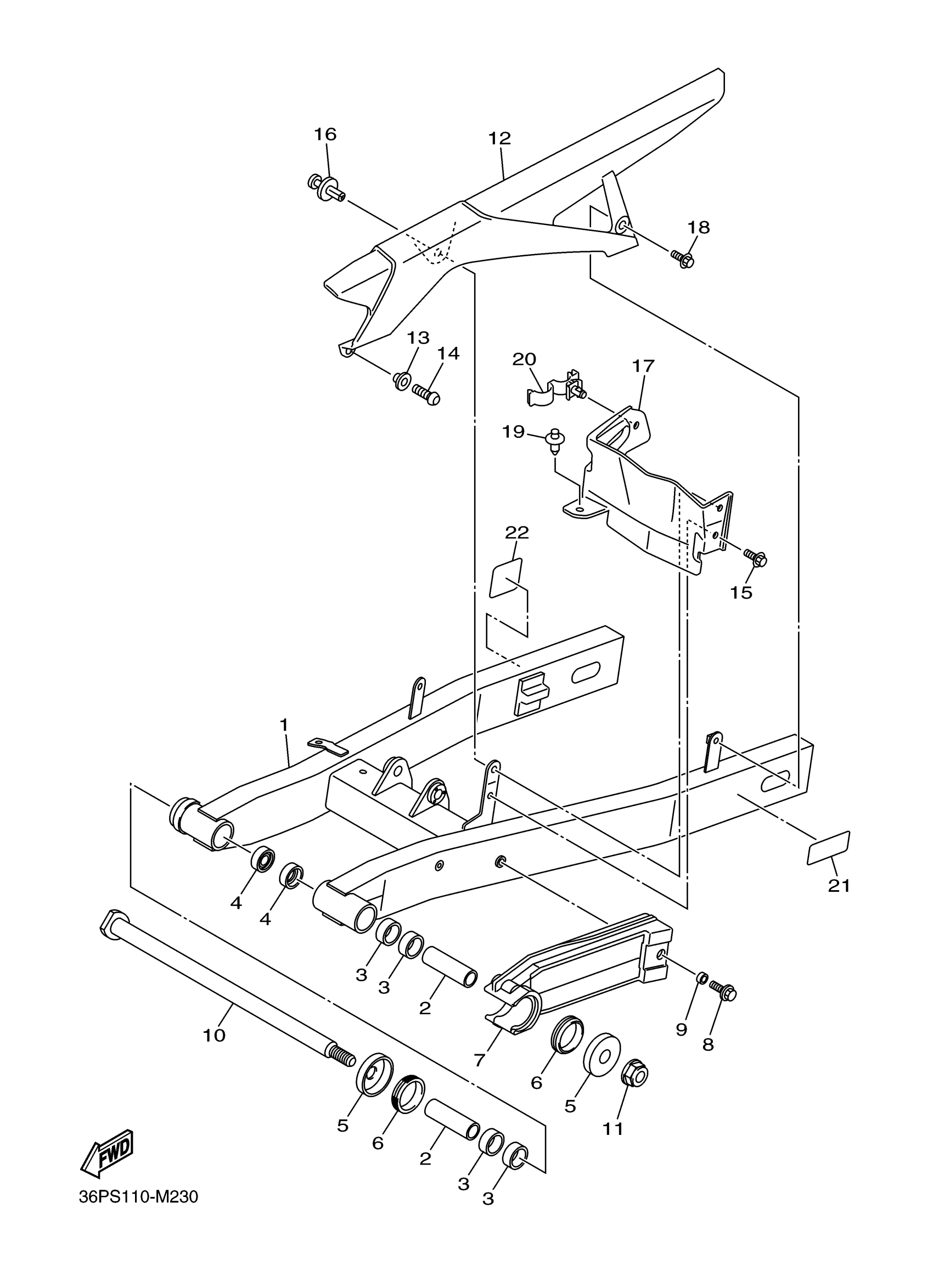

Yamaha FZ6RDW (FZ6R) 36PS 2013 REAR ARM Diagram

REAR ARM COMP.

BUSH 2

BEARING, CYLINDRICAL(2VM)

OIL SEAL (23X)

COVER

OIL SEAL (35X41.5X8-483)

SEAL, GUARD

BOLT, WITH WASHER

COLLAR

SHAFT, PIVOT

NUT, SELF-LOCKING

CASE, CHAIN

COLLAR

BOLT, BUTTON HEAD

BOLT, WITH WASHER

RIVET(4JH)

COVER, DUST

BOLT, WITH WASHER

RIVET

CLAMP

LABEL, TIRE

PLATE, ROUTING 2
