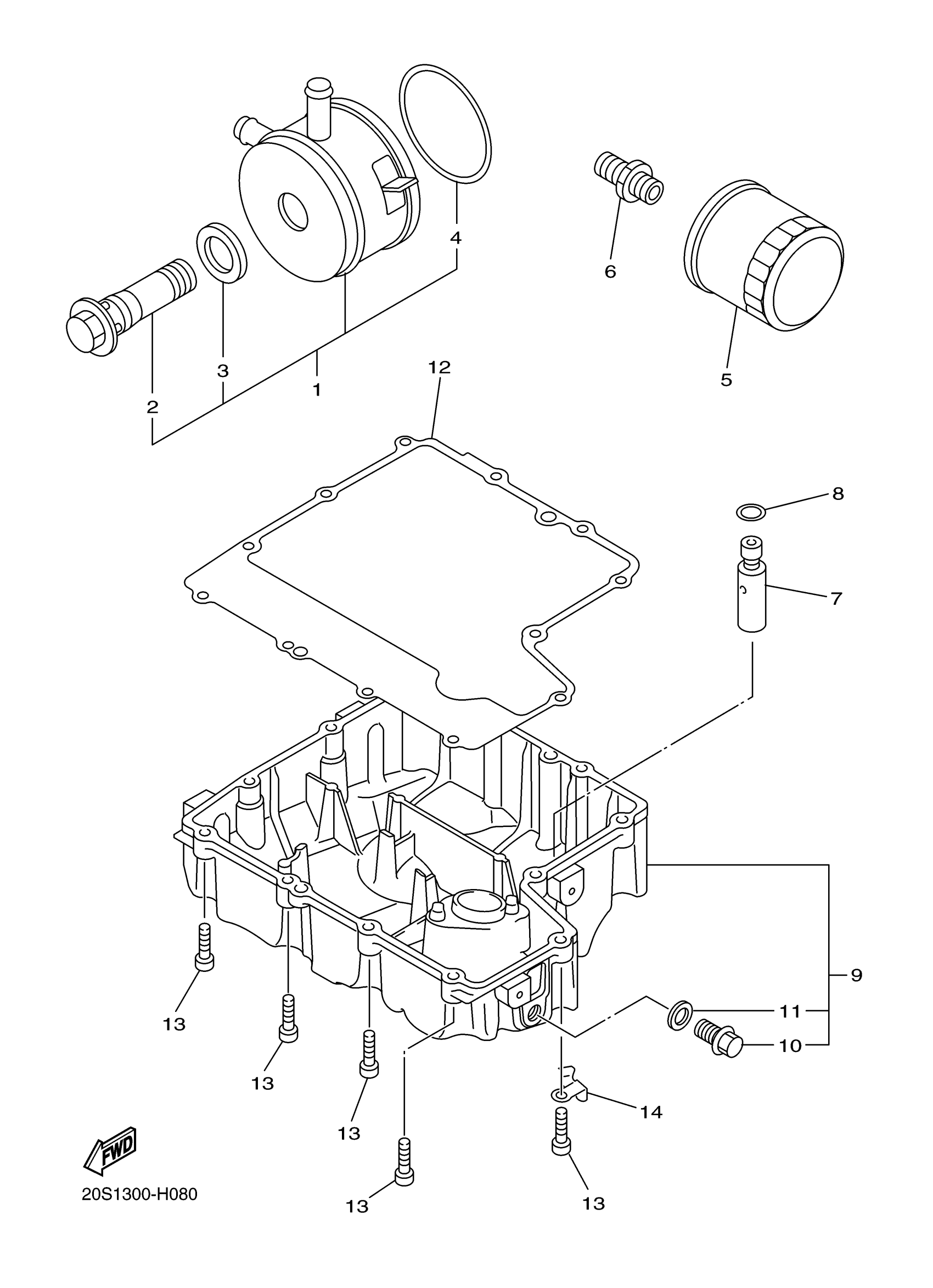

Yamaha FZ6RDW (FZ6R) 36PS 2013 OIL CLEANER Diagram

#

Description
Price

1

OIL COOLER ASSY

5EB-13470-00-00

Unavailable

2

BOLT, UNION

5EB-12822-00-00

$74.99

3

GASKET

5EB-13475-00-00

$18.49

4

O-RING

5JW-13473-00-00

$42.99

5

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

6

BOLT, UNION

90401-20008-00

$23.99

7

RELIEF VALVE ASSY

3KS-13490-00-00

Unavailable

8

O-RING (22U)

93210-15566-00

$7.49

9

STRAINER COVER ASSY

20S-13400-00-00

Unavailable

10

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

11

GASKET

214-11198-01-00

$3.17

12

GASKET, STRAINER COVER

20S-13414-00-00

Unavailable

13

BOLT,SOCKET

91317-06025-00

$5.60

14

CLAMP

90465-10030-00

Unavailable
