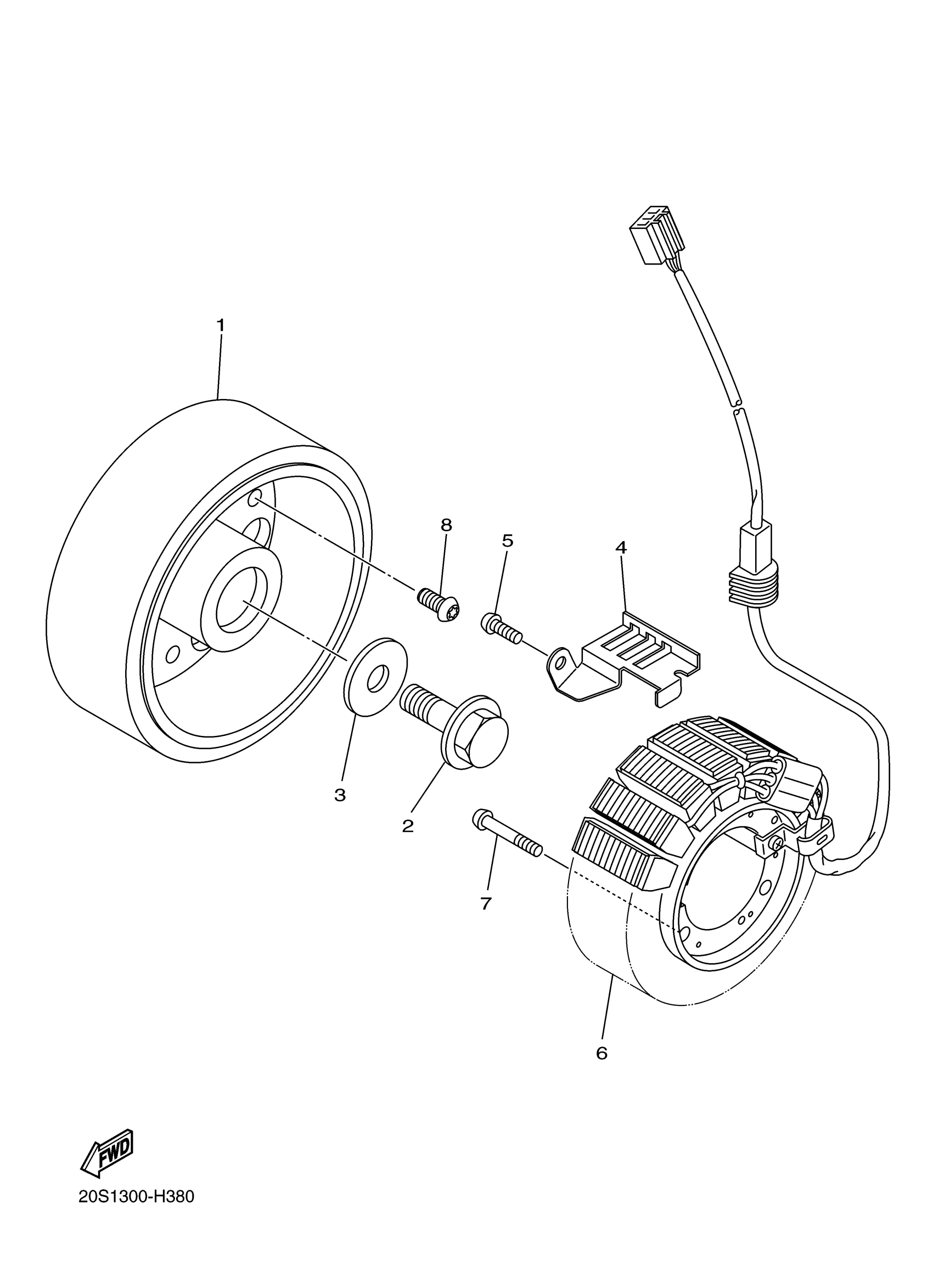

Yamaha FZ6RDL (FZ6R) 36PV 2013 GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

5VX-81450-00-00

Unavailable

2

BOLT, WASHER BASED

90105-126A8-00

$11.23

3

WASHER, PLATE

90201-12008-00

$10.41

4

CLAMP 2

5VX-15484-00-00

$7.09

5

SCREW

90149-06156-00

$5.93

6

STATOR ASSY

20S-81410-00-00

$443.29

7

SCREW

90149-06122-00

$5.03

8

SCREW

90149-08031-00

$5.93
