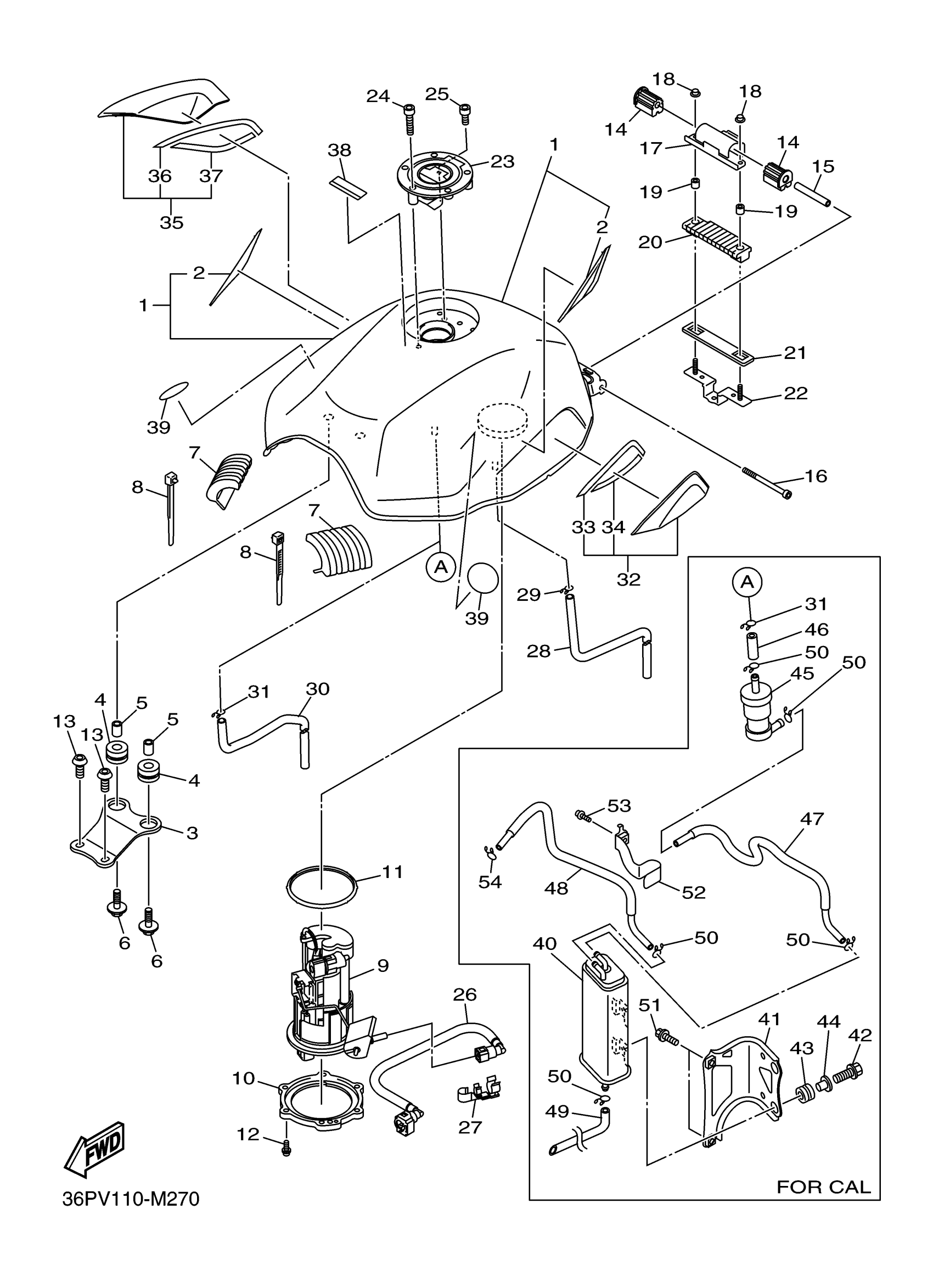

Yamaha FZ6RDL (FZ6R) 36PV 2013 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)

20S-Y2410-00-08

Unavailable

2

GRAPHIC SET

36P-24240-10-00

Unavailable

3

BRACKET, FUEL TANK 1

20S-24191-00-00

Unavailable

4

GROMMET

90480-16010-00

$4.41

5

COLLAR

90387-06068-00

$5.60

6

BOLT, WITH WASHER

90119-06264-00

Unavailable

7

DAMPER, LOCATING 3

20S-24183-00-00

Unavailable

8

CLAMP

90465-15011-00

Unavailable

9

FUEL PUMP COMP.

20S-13907-03-00

$513.99

10

BRACKET, FUEL PUMP

13S-24491-00-00

$40.99

11

O-RING

19B-24486-01-00

$43.99

12

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

13

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

14

DAMPER, LOCATING 1

5VX-24181-00-00

$14.49

15

COLLAR(JF3)

90387-061W6-00

Unavailable

16

BOLT, SOCKET

91314-06090-00

Unavailable

17

BRACKET, TANK FITTING

20S-2413Y-00-00

Unavailable

18

NUT, FLANGE

95702-06500-00

Unavailable

19

COLLAR (1T2)

90387-07598-00

Unavailable

20

DAMPER, LOCATING 1

20S-24181-00-00

Unavailable

21

DAMPER, PLATE 1

20S-2414H-00-00

Unavailable

22

NUT

20S-21296-00-00

Unavailable

23

CAP ASSY

39P-24602-10-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

25

BOLT, SOCKET

91317-05010-00

Unavailable

26

PIPE, FUEL 1

5VX-13971-00-00

Unavailable

27

CLAMP

90464-16005-00

Unavailable

28

HOSE (L730)

90445-105K7-00

Unavailable

29

CLIP

90467-090A2-00

Unavailable

31

CLIP

90467-100A1-00

Unavailable

32

TANK SIDE COVER ASSY 1

20S-24106-01-00

Unavailable

33

TAPE 1

20S-2173T-10-00

Unavailable

34

TAPE 1

20S-2173T-20-00

Unavailable

35

TANK SIDE COVER ASSY 2

20S-24108-01-00

Unavailable

36

TAPE 2

20S-2173U-10-00

Unavailable

37

TAPE 2

20S-2173U-20-00

Unavailable

38

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

39

EMBLEM

5JW-2413B-00-00

Unavailable

40

CANISTER ASSY

5C7-24170-00-00

Unavailable

41

BRACKET, CANISTOR

36P-2419F-00-00

Unavailable

42

BOLT, FLANGE

95817-06016-00

Unavailable

43

GROMMET (1E5)

90480-13163-00

Unavailable

44

COLLAR(42G)

90387-062L2-00

Unavailable

45

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

46

HOSE

90445-11065-00

Unavailable

47

PIPE 4

36P-24314-00-00

Unavailable

48

PIPE

36P-14466-00-00

Unavailable

49

PIPE 5

36P-24315-00-00

Unavailable

50

CLIP

90467-100A1-00

Unavailable

51

BOLT, FLANGE

95814-08016-00

Unavailable

52

GUIDE, PIPE

36P-24667-00-00

Unavailable

53

BOLT, FLANGE

95812-06010-00

Unavailable

54

CLIP

90467-100A1-00

Unavailable
