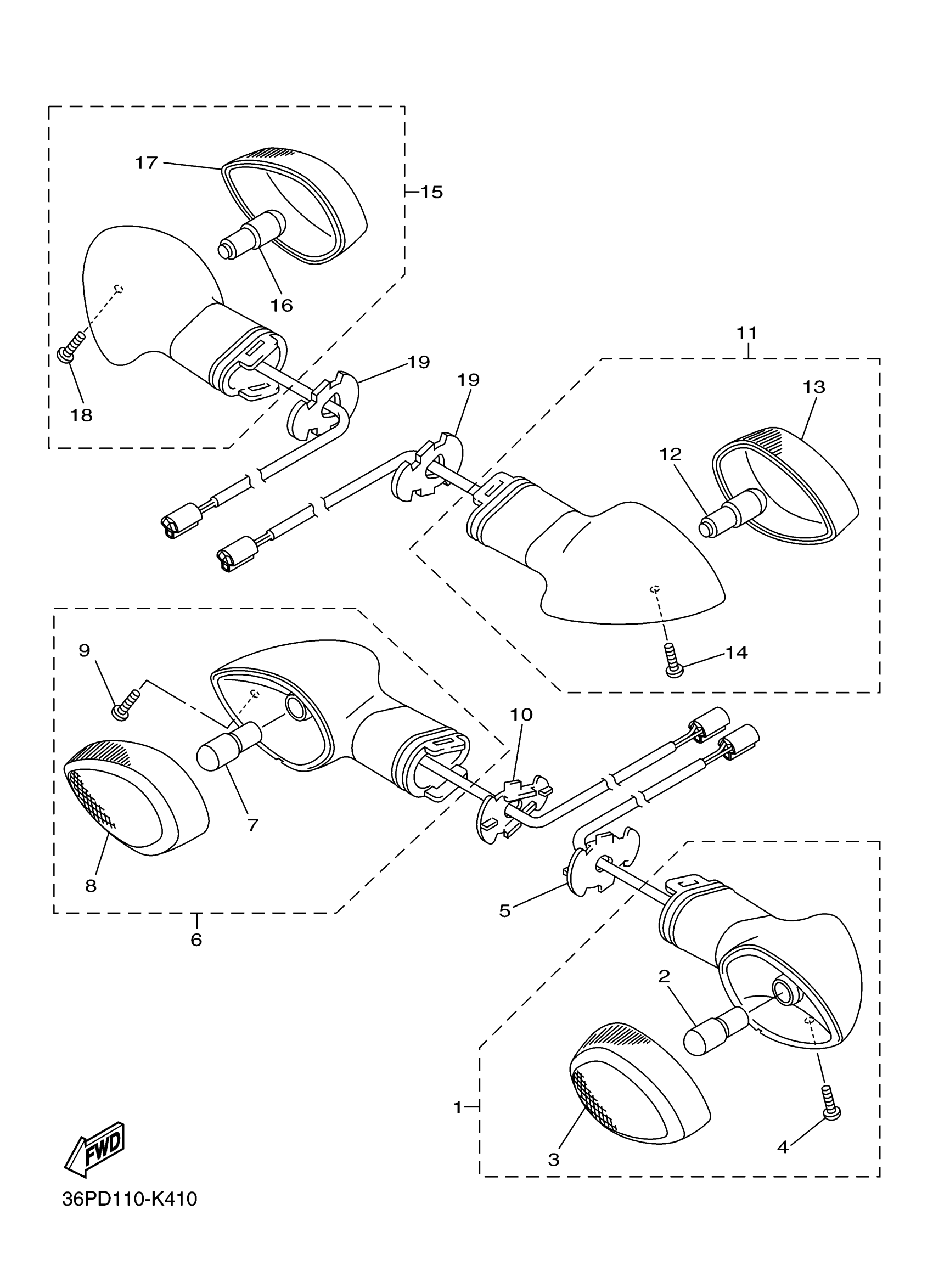

Yamaha FZ6RBW (FZ6R) 36PK 2012 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5PW-83310-10-00

$108.99

2

BULB, FLASHER

5GJ-83331-00-00

$15.49

3

LENS COMP

5PW-8333A-10-00

$33.99

4

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

5

STAY, FLASHER 1

2D1-83318-00-00

$7.99

6

FRONT FLASHER LIGHT ASSY 2

5PW-83320-11-00

$51.99

7

BULB, FLASHER

5GJ-83331-00-00

$15.49

8

LENS COMP

5PW-8334A-10-00

$33.99

9

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

10

STAY, FLASHER 1

2D1-83318-00-00

$7.99

11

REAR FLASHER LIGHT ASSY 1

14B-83330-11-00

$55.99

12

BULB, FLASHER

5PW-83331-00-00

$14.49

13

LENS COMP

5PW-8334A-10-00

$33.99

14

.. SCREW, TAPPING

97707-04012-00

Unavailable

15

REAR FLASHER LIGHT

14B-83340-11-00

Unavailable

16

BULB, FLASHER

5PW-83331-00-00

$14.49

17

LENS COMP

5PW-8333A-10-00

$33.99

18

.. SCREW, TAPPING

97707-04012-00

Unavailable

19

STAY, FLASHER 1

3D7-83318-10-00

Unavailable
