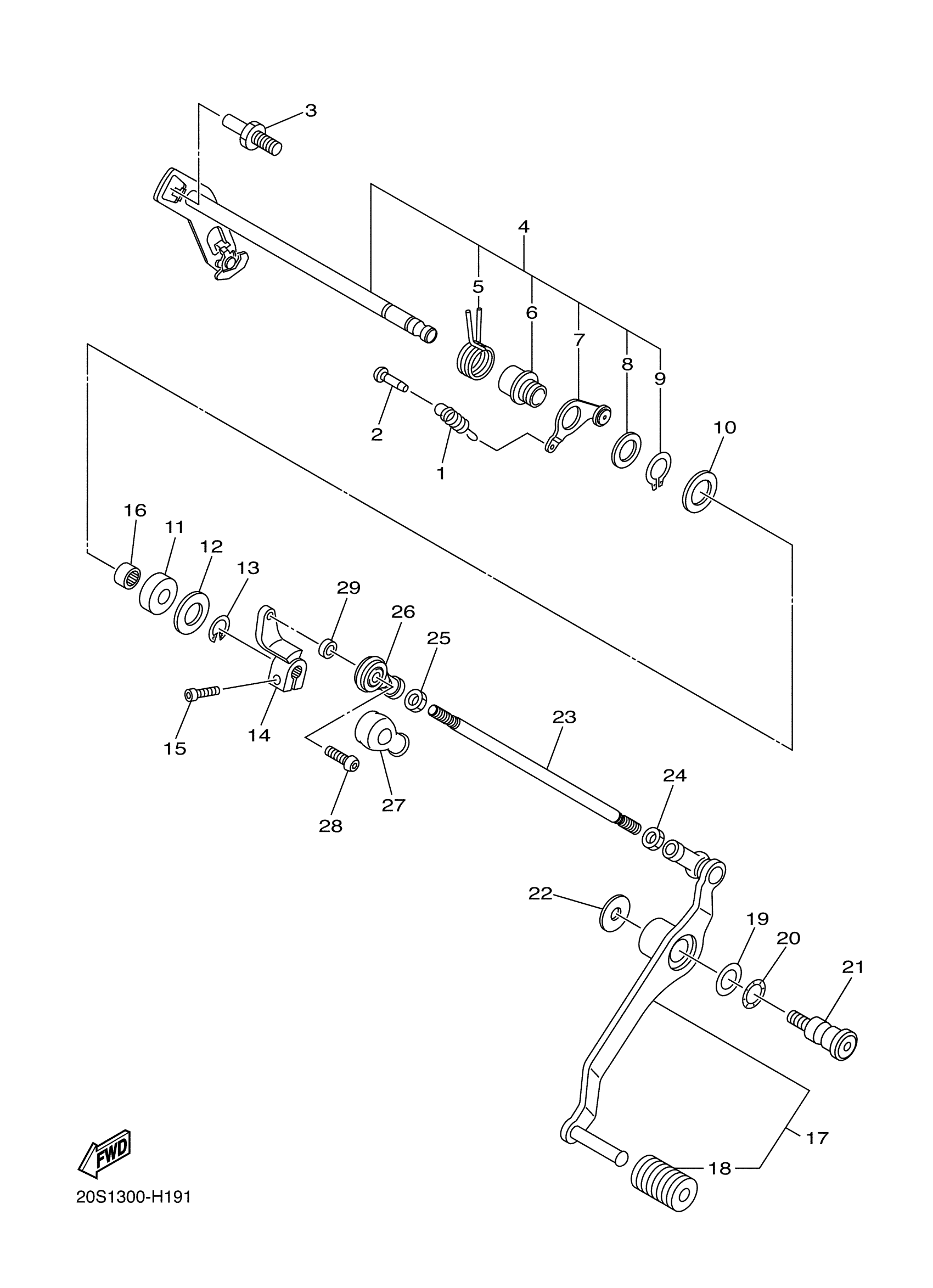

Yamaha FZ6RBCB (FZ6R CA) 36PP 2012 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING, TENSION

90506-15005-00

$3.02

2

HOOK, SPRING

132-16346-00-00

$9.99

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

SHIFT SHAFT ASSY

20S-18101-02-00

Unavailable

5

SPRING, TORSION

90508-32141-00

Unavailable

6

. SPACER

2C0-18175-00-00

Unavailable

7

STOPPER LEVER ASSY

20S-18140-00-00

Unavailable

8

WASHER, PLATE (30X)

90201-177G4-00

$9.49

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

11

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

12

WASHER, PLATE (353)

90201-12575-00

$8.49

13

CIRCLIP

99006-10600-00

$9.49

14

ARM, SHIFT

20S-18112-00-00

Unavailable

15

BOLT,SOCKET HEAD

91314-06020-00

$1.49

16

BEARING

93317-11295-00

Unavailable

17

SHIFT PEDAL ASSY

20S-18110-01-00

Unavailable

18

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

19

WASHER, PLATE

90201-12051-00

Unavailable

20

WASHER, WAVE (17W)

90206-12074-00

Unavailable

21

BOLT

4BP-27434-11-00

Unavailable

22

WASHER, PLATE

90201-08053-00

Unavailable

23

ROD, SHIFT

3D8-18115-00-00

Unavailable

24

NUT

90170-06026-00

Unavailable

25

Nut

95314-06700-00

Unavailable

26

JOINT, ROD 1

5VX-18116-00-00

Unavailable

27

COVER, DUST

5VX-18154-00-00

Unavailable

28

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

29

COLLAR

90387-06106-00

Unavailable
