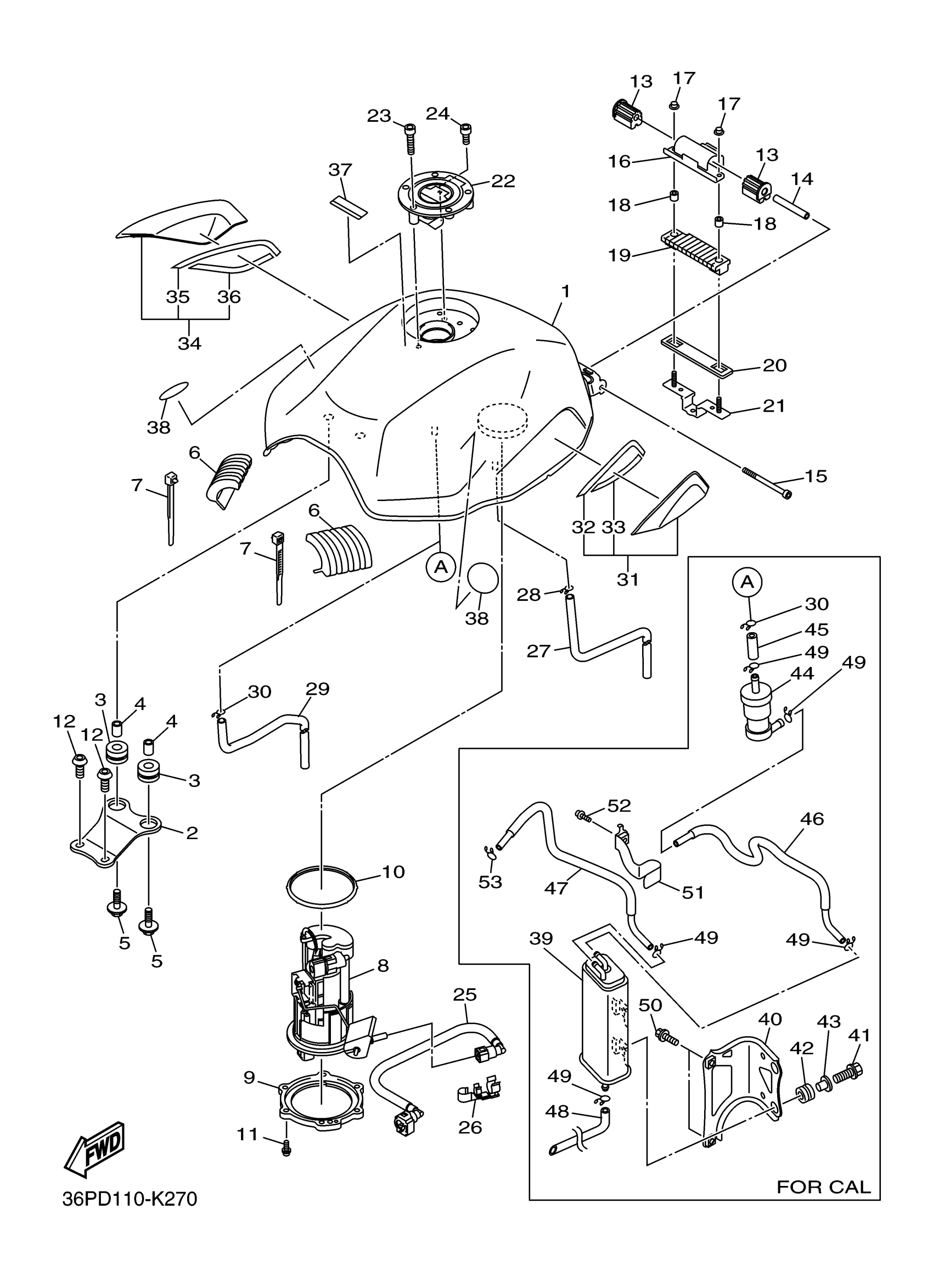

Yamaha FZ6RBCB (FZ6R CA) 36PP 2012 FUEL TANK Diagram
#
1
FUEL TANK ASSY
20S-W2410-01-07
Unavailable
2
BRACKET, FUEL TANK 1
20S-24191-00-00
Unavailable
5
BOLT, WITH WASHER
90119-06264-00
Unavailable
6
DAMPER, LOCATING 3
20S-24183-00-00
Unavailable
7
CLAMP
90465-15011-00
Unavailable
14
COLLAR(JF3)
90387-061W6-00
Unavailable
16
BRACKET, TANK FITTING
20S-2413Y-00-00
Unavailable
17
NUT, FLANGE
95702-06500-00
Unavailable
18
COLLAR (1T2)
90387-07598-00
Unavailable
19
DAMPER, LOCATING 1
20S-24181-00-00
Unavailable
20
DAMPER, PLATE 1
20S-2414H-00-00
Unavailable
21
NUT
20S-21296-00-00
Unavailable
22
CAP ASSY
39P-24602-00-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
24
BOLT, SOCKET
91317-05010-00
Unavailable
25
PIPE, FUEL 1
5VX-13971-00-00
Unavailable
26
CLAMP
90464-16005-00
Unavailable
27
HOSE (L730)
90445-105K7-00
Unavailable
28
CLIP
90467-090A2-00
Unavailable
29
HOSE (L730)
90445-105K7-00
Unavailable
30
CLIP
90467-090A2-00
Unavailable
31
TANK SIDE COVER ASSY 1
20S-24106-01-00
Unavailable
32
TAPE 1
20S-2173T-10-00
Unavailable
33
TAPE 1
20S-2173T-20-00
Unavailable
34
TANK SIDE COVER ASSY 2
20S-24108-01-00
Unavailable
35
TAPE 2
20S-2173U-10-00
Unavailable
36
TAPE 2
20S-2173U-20-00
Unavailable
37
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
38
EMBLEM
5JW-2413B-00-00
Unavailable
