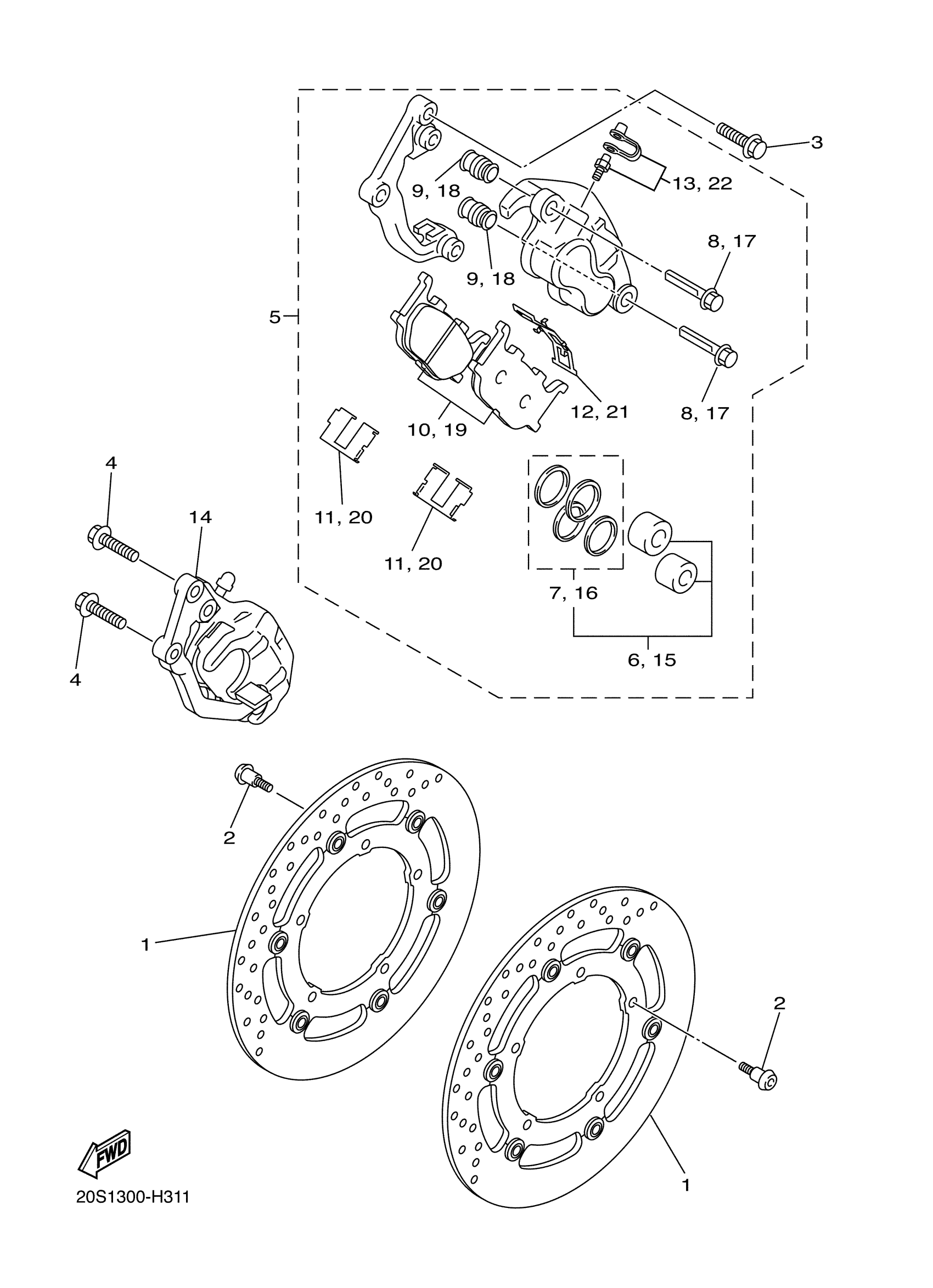

Yamaha FZ6RBCB (FZ6R CA) 36PP 2012 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

20S-2581T-00-00

Unavailable

2

BOLT

90109-06254-00

$2.57

3

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

4

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

5

CALIPER ASSY (LEFT)

5VX-2580T-00-00

Unavailable

6

PISTON ASSY, CALIPER

5KS-25802-00-00

$58.47

7

CALIPER SEAL KIT

4HC-25803-50-00

$51.55

8

PIN, SLIDE

5JW-25914-10-00

$17.93

9

BOOT 2

4TT-25937-00-00

$13.33

10

BRAKE PAD KIT

5VX-W0045-00-00

$42.97

11

SUPPORT, PAD

4BP-25919-00-00

$27.53

12

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

13

BLEED SCREW KIT

15B-W0048-00-00

$16.89

14

CALIPER ASSY (RIGHT)

5VX-2580U-00-00

Unavailable

15

PISTON ASSY, CALIPER

5KS-25802-00-00

$58.47

16

CALIPER SEAL KIT

4HC-25803-50-00

$51.55

17

PIN, SLIDE

5JW-25914-10-00

$17.93

18

BOOT 2

4TT-25937-00-00

$13.33

19

BRAKE PAD KIT

5VX-W0045-00-00

$42.97

20

SUPPORT, PAD

4BP-25919-00-00

$27.53

21

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

22

BLEED SCREW KIT

15B-W0048-00-00

$16.89
