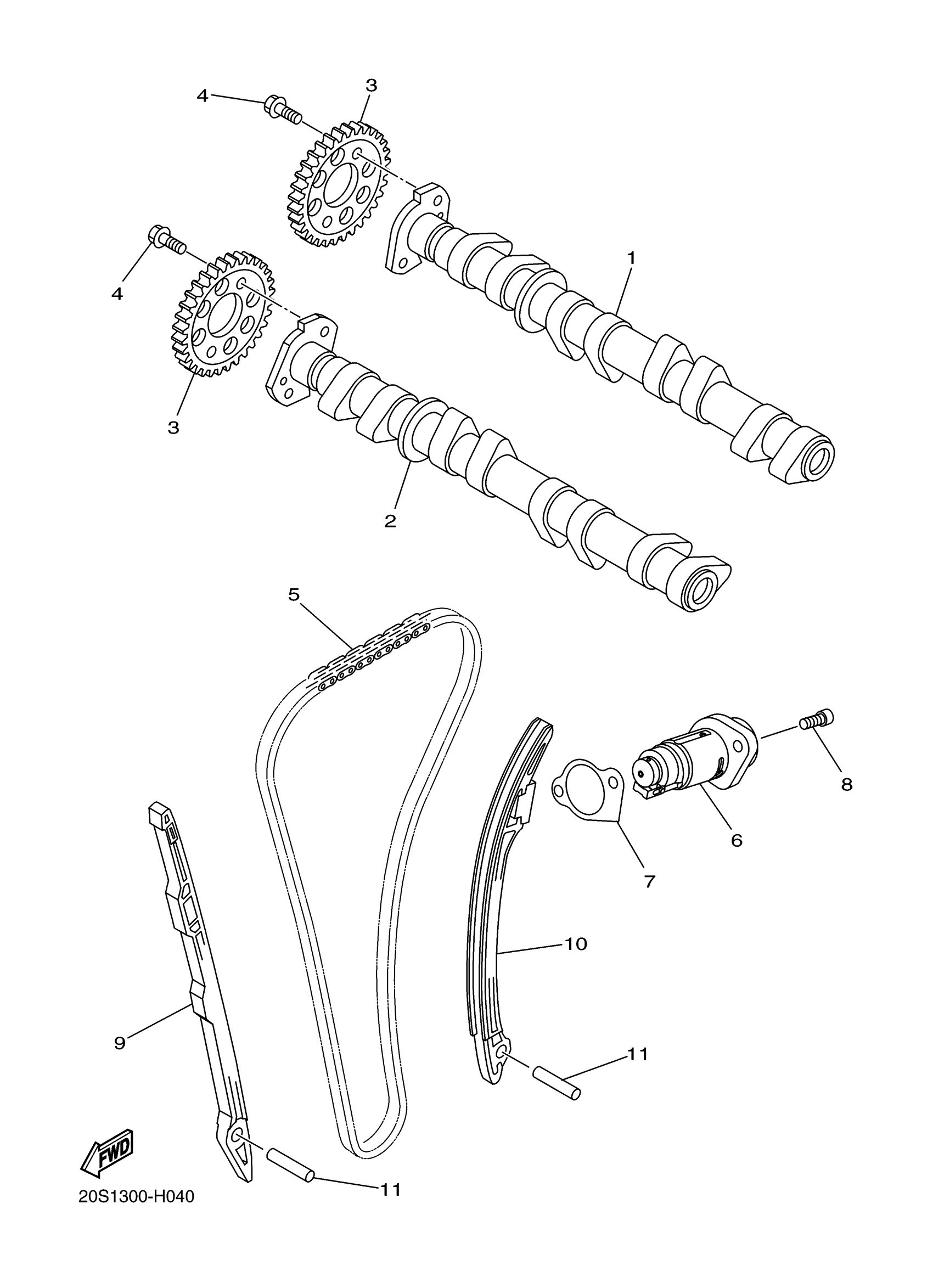

Yamaha FZ6RBCB (FZ6R CA) 36PP 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

20S-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

20S-12180-00-00

Unavailable

3

SPROCKET, CAM CHAIN

20S-12176-00-00

$57.85

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-68120-00

Unavailable

6

TENSIONER ASSY, CAM CHAIN

20S-12210-11-00

Unavailable

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.29

8

BOLT, HEXAGON SOCKET HEAD

90110-06335-00

$4.82

9

DAMPER, CHAIN 1

2C0-12251-00-00

$28.80

10

DAMPER, CHAIN 2

13S-12252-00-00

$82.24

11

PIN, DOWEL

93607-44002-00

$3.95
