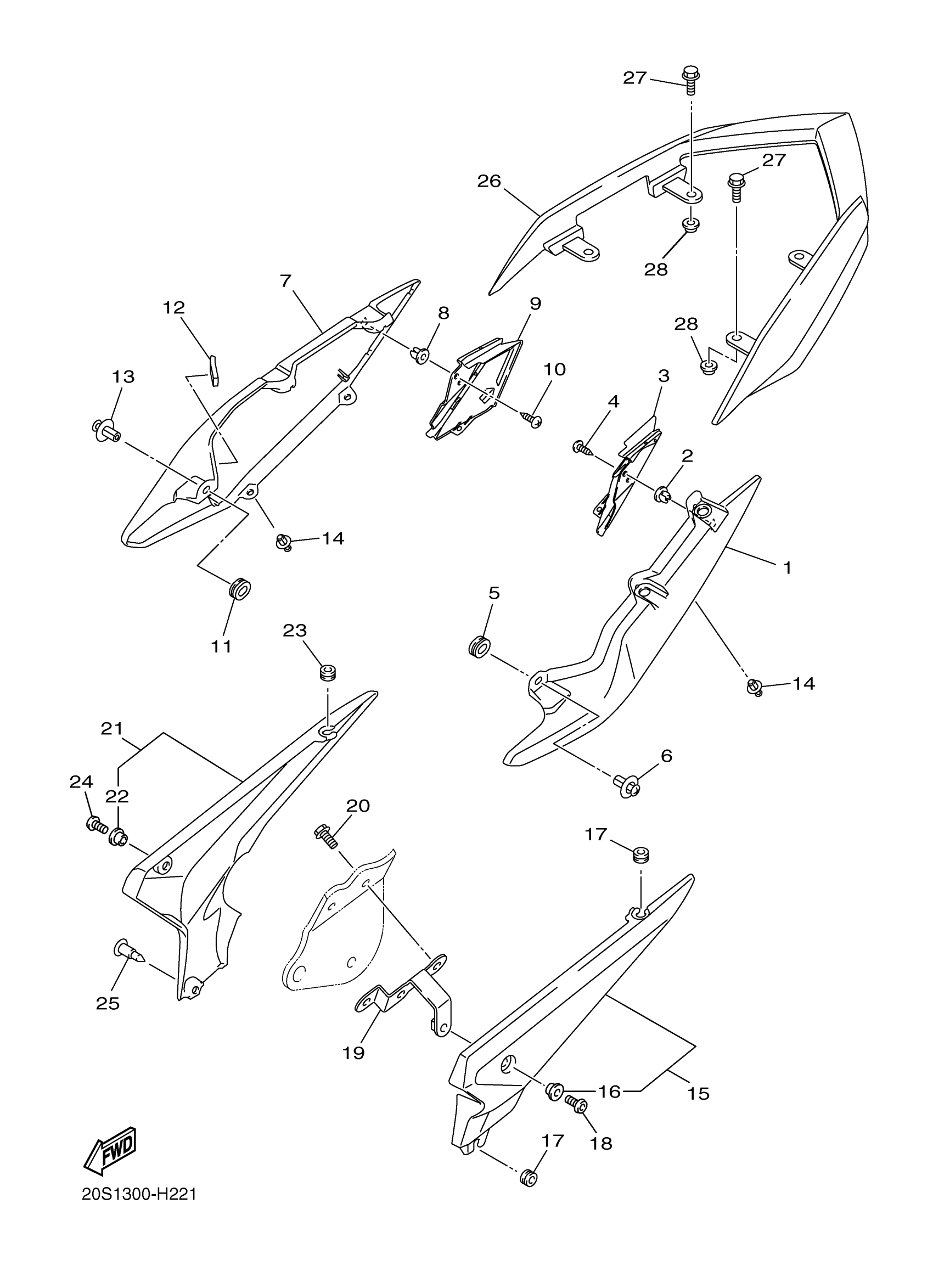

Yamaha FZ6RAO (FZ6R) 36PG 2011 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

20S-21711-00-PB

$84.99

2

GROMMET

90480-08005-00

$8.49

3

COVER, REAR FENDER 1

20S-2163A-00-00

$15.49

4

SCREW, TRUSS TAP.

97707-50014-00

$8.49

5

DAMPER

5PW-2174X-00-00

$6.99

6

RIVET(4JH)

90269-07076-00

$7.49

7

COVER, SIDE 2

20S-21721-00-PB

$84.99

8

GROMMET

90480-08005-00

$8.49

9

COVER, REAR FENDER 2

20S-2163E-00-00

$14.49

10

SCREW, TRUSS TAP.

97707-50014-00

$8.49

11

DAMPER

5PW-2174X-00-00

$6.99

12

DAMPER, LOCATING 2

4C8-24182-00-00

$7.99

13

RIVET(4JH)

90269-07076-00

$7.49

14

RIVET(4PH)

90269-07077-00

$8.49

15

SIDE COVER ASSY 3

20S-21730-00-00

Unavailable

16

COLLAR

90387-06130-00

Unavailable

17

GROMMET (17J)

90480-10334-00

Unavailable

18

BOLT

90111-06038-00

Unavailable

19

BRKT 7

20S-2172U-00-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

Unavailable

21

SIDE COVER ASSY 4

20S-21740-00-00

Unavailable

22

COLLAR

90387-06130-00

Unavailable

23

GROMMET (17J)

90480-10334-00

Unavailable

24

BOLT

90111-06038-00

Unavailable

25

RIVET

90269-07008-00

Unavailable

26

HANDLE, SEAT

20S-24773-01-00

Unavailable

27

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

28

COLLAR

90387-08089-00

Unavailable
