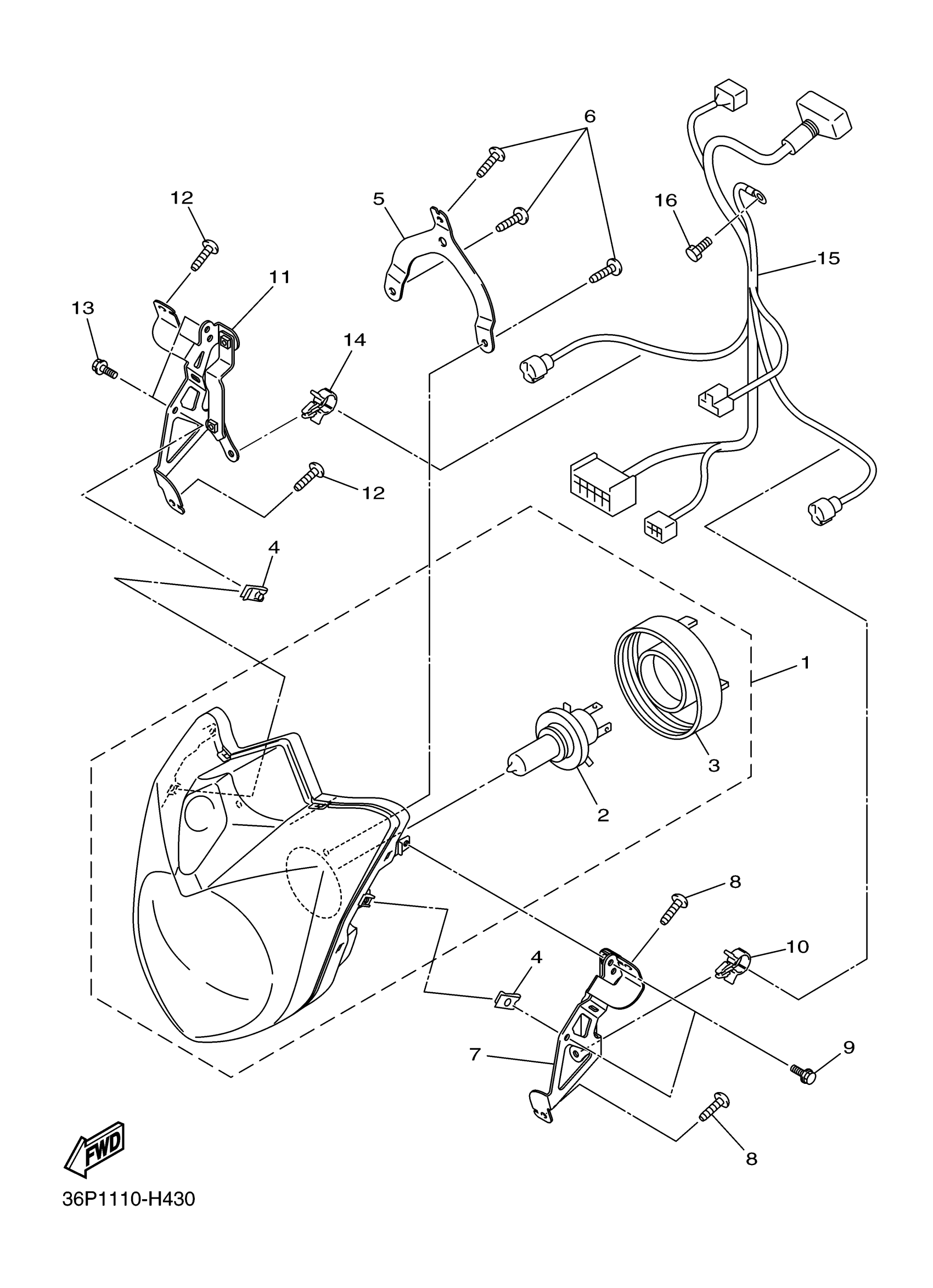

Yamaha FZ6RAO (FZ6R) 36PG 2011 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

36P-84300-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

COVER, SOCKET

5JW-84397-00-00

Unavailable

4

NUT, SPRING(4ES)

90183-06069-00

Unavailable

5

PLATE 1

36P-28396-01-00

Unavailable

6

SCREW, TAPPING

97702-50016-00

$2.39

7

STAY, HEADLIGHT 1

36P-84118-00-00

Unavailable

8

SCREW, TAPPING

97702-50016-00

$2.39

9

BOLT, FLANGE

95817-06012-00

$1.43

10

CLAMP(3XV)

90464-15157-00

$8.49

11

STAY, HEADLIGHT 2

36P-84119-00-00

Unavailable

12

SCREW, TAPPING

97702-50016-00

$2.39

13

BOLT, FLANGE

95817-06012-00

$1.43

14

CLAMP(3XV)

90464-15157-00

$8.49

15

CORD, HEADLIGHT

36P-84359-00-00

$100.99

16

BOLT,SOCKET

91380-05008-00

Unavailable
