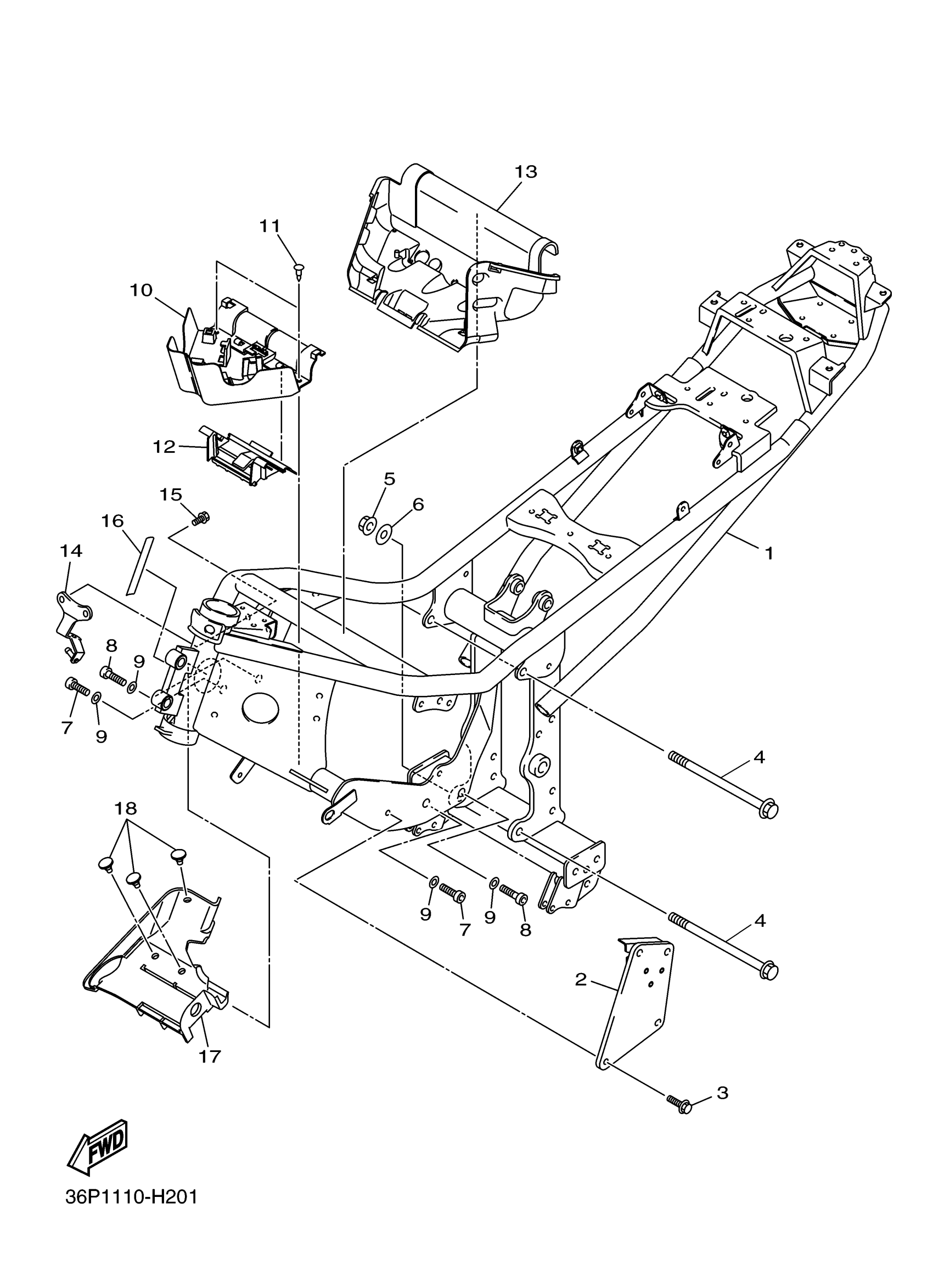

Yamaha FZ6RAO (FZ6R) 36PG 2011 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1CW-21110-00-00

Unavailable

2

GUSSET

20S-21136-00-00

Unavailable

3

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

4

BOLT, WASHER BASED(42X)

90105-10297-00

$13.99

5

NUT(4KG)

90179-10658-00

$9.49

6

WASHER, PLATE

90201-10051-00

$9.49

7

BOLT, SOCKET

91314-10035-00

Unavailable

8

BOLT

91312-10045-00

$5.60

9

WASHER, PLATE

90201-10030-00

$5.60

10

COVER 3

20S-2117N-00-00

Unavailable

11

RIVET

90269-07007-00

$4.08

12

COVER 4

20S-2117R-00-00

Unavailable

13

COVER 5

20S-2117T-00-00

Unavailable

14

BRACKET

20S-21249-00-00

Unavailable

15

BOLT, FLANGE

95812-06010-00

$2.98

16

PROTECTOR

3D8-2117G-00-00

Unavailable

17

COVER 6

36P-2117U-00-00

Unavailable

18

RIVET(4KM)

90269-05074-00

Unavailable
