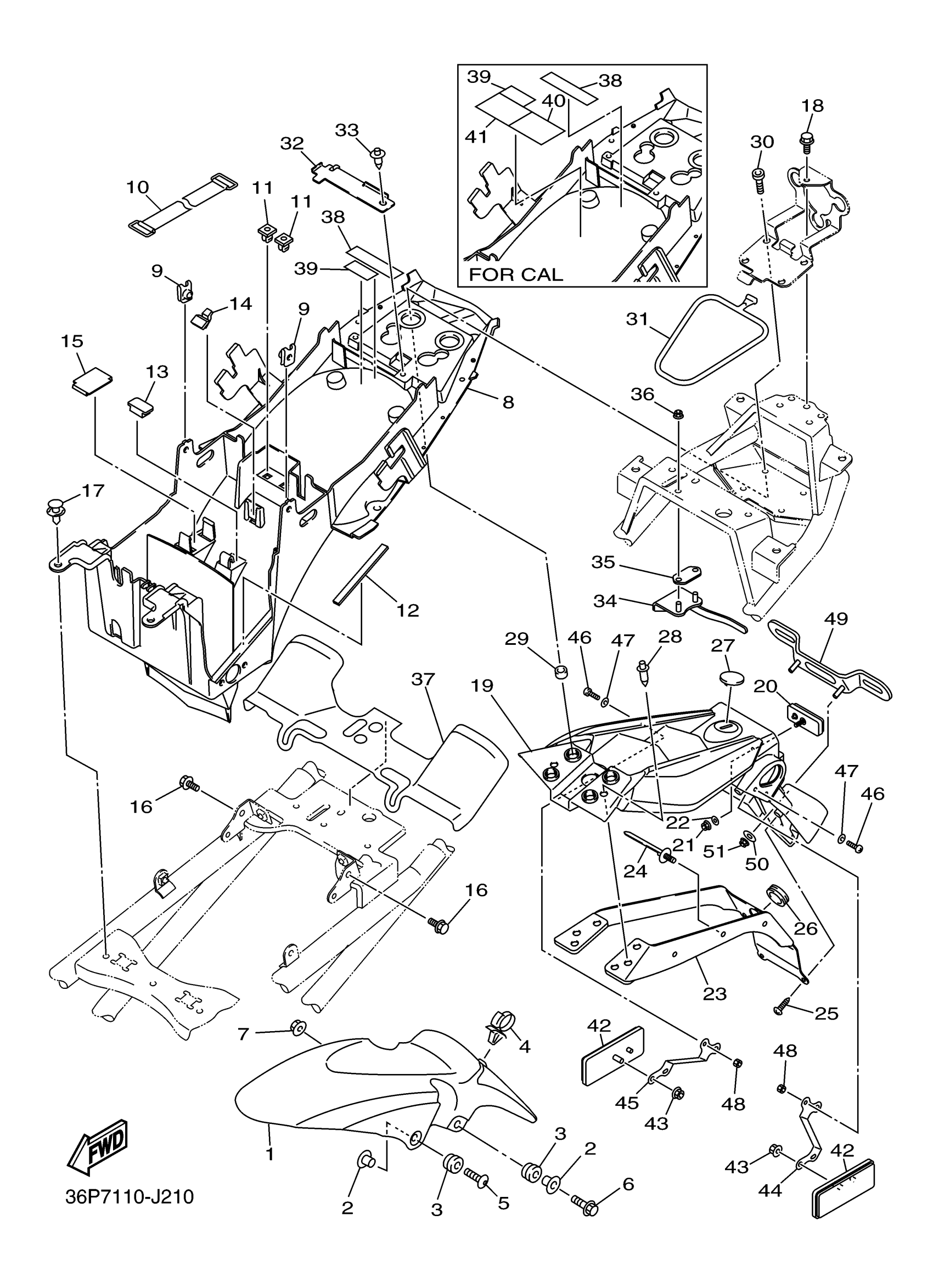

Yamaha FZ6RAO (FZ6R) 36PG 2011 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5VX-21511-A0-PA

Unavailable

2

COLLAR

90387-06159-00

$8.49

3

GROMMET(53Y)

90480-12072-00

$8.49

4

CLAMP

90464-18002-00

$8.49

5

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

6

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

7

NUT, FLANGE

95702-06500-00

$2.39

8

FENDER, REAR

20S-21611-01-00

Unavailable

9

NUT, SPRING(4ES)

90183-06069-00

Unavailable

10

BAND,BATTERY

7H3-82131-00-00

$17.49

11

GROMMET

90480-07003-00

Unavailable

12

DAMPER

5JW-2174X-00-00

Unavailable

13

SEAL, 2

20S-216A2-00-00

Unavailable

14

SEAL, 3

20S-216A3-00-00

Unavailable

15

SEAL, 4

20S-216A4-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

RIVET

90269-07010-00

Unavailable

18

BOLT, FLANGE

95812-06010-00

Unavailable

19

GUARD, MUD

20S-21629-10-00

Unavailable

20

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

21

NUT, U

95617-05100-00

Unavailable

22

WASHER, PLATE

90201-05043-00

Unavailable

23

BRACKET, REAR STAY

20S-21688-01-00

Unavailable

24

CLAMP

90464-20005-00

Unavailable

25

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

26

GROMMET (20G)

90480-23345-00

Unavailable

27

TUNING FORK MARK

4KN-2836B-10-00

Unavailable

28

RIVET

90269-07001-00

Unavailable

29

COLLAR

90387-06232-00

Unavailable

30

BOLT, SOCKET

91317-08025-00

Unavailable

31

BAND, TOOL

3YX-21376-00-00

Unavailable

32

PLATE,FITTING 3

20S-21677-01-00

Unavailable

33

RIVET

90269-06008-00

Unavailable

34

BRACKET, HELMET HANGER

36P-2115J-00-00

Unavailable

35

PLATE

20S-24792-00-00

Unavailable

36

NUT, FLANGE

95702-06500-00

$2.39

37

DAMPER 2

36P-21639-00-00

Unavailable

38

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

39

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

40

PLATE, ROUTING

5VX-21684-00-00

Unavailable

41

LABEL

5VX-2178A-00-00

Unavailable

42

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

43

NUT, S/L FLANGE

95607-05200-00

Unavailable

44

STAY 1

36P-2164F-00-00

Unavailable

45

STAY 2

36P-2164G-00-00

Unavailable

46

SCREW, PAN HEAD

98511-04012-00

Unavailable

47

WASHER, PLAIN (646)

92990-04600-00

Unavailable

48

NUT, U (7LY)

95617-04100-00

Unavailable

49

BRACKET, LICENSE

39P-84751-00-00

Unavailable

50

WASHER, PLATE

90201-06088-00

Unavailable

51

NUT, SELF-LOCKING

95617-06100-00

Unavailable
