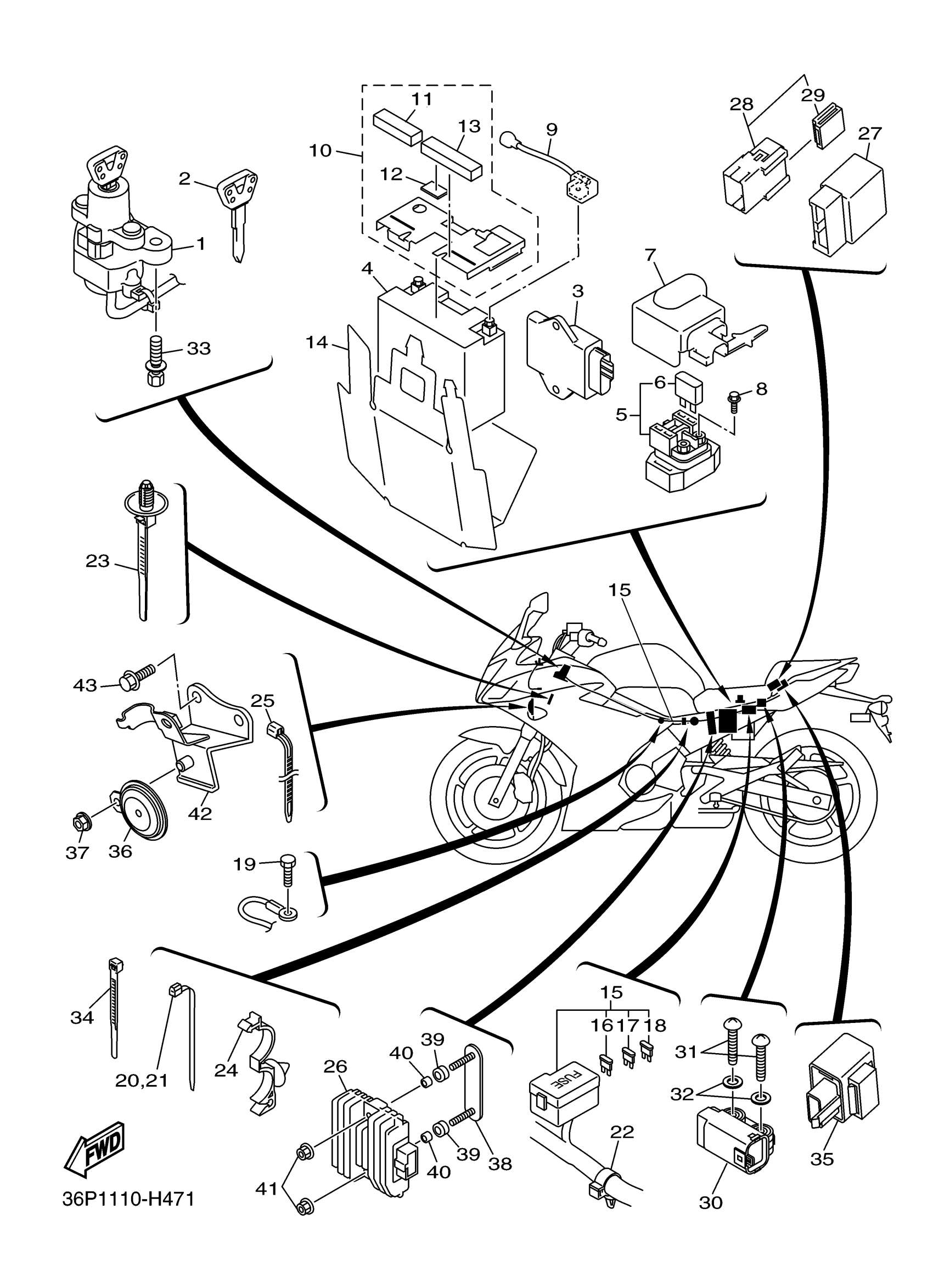

Yamaha FZ6RAO (FZ6R) 36PG 2011 ELECTRICAL 2 Diagram

MAIN SWITCH STEERING LOCK

36P-82501-01-00

$180.99

BLANK KEY

4BH-82511-09-00

$30.99

ENGINE CONTROL UNIT ASSY

36P-8591A-00-00

Unavailable

GT12B4 GS BATTERY - FA

GT1-2B400-00-00

Unavailable

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

$122.99

FUSE (12V 30A)

1AE-82151-00-00

$7.99

COVER, LEAD WIRE

20S-82119-00-00

Unavailable

BOLT, FLANGE

95022-06008-00

$8.49

WIRE, PLUS LEAD

20S-82115-00-00

Unavailable

BATTERY COVER ASSY

20S-82160-00-00

Unavailable

DAMPER

5VK-21746-00-00

$1.20

DAMPER

5HN-2139X-00-00

$2.13

DAMPER, PLATE

90520-15002-00

Unavailable

SEAT, BATTERY

20S-82122-01-00

Unavailable

WIRE HARNESS ASSY

36P-82590-00-00

$428.99

FUSE (15A)

67F-82151-50-00

Unavailable

FUSE

5JJ-82151-20-00

Unavailable

. FUSE (10A)

67F-82151-40-00

Unavailable

BOLT

91380-06012-00

Unavailable

CLAMP

90464-13077-00

Unavailable

CLAMP

90464-13077-00

Unavailable

CLAMP

90464-20010-00

Unavailable

CLAMP(4KJ)

90464-20213-00

Unavailable

CLAMP

90464-20010-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

RECTIFIER & REGULATOR ASSY

5SL-81960-00-00

Unavailable

RELAY ASSY

5VK-81950-43-00

Unavailable

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

SCREW, ROUND TAPPING

90160-04009-00

Unavailable

WASHER, PLATE

90201-04030-00

Unavailable

BOLT

90109-08196-00

Unavailable

CLAMP

90465-15011-00

Unavailable

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

HORN

20S-83371-00-00

Unavailable

NUT,FLANGE(J10)

95702-08500-00

Unavailable

BRACKET, REAR STAY 2

20S-21689-00-00

Unavailable

GROMMET

90480-16007-00

Unavailable

COLLAR(J45)

90387-064T3-00

Unavailable

NUT, FLANGE

95702-06500-00

Unavailable

BRACKET, HORN

20S-23377-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable
