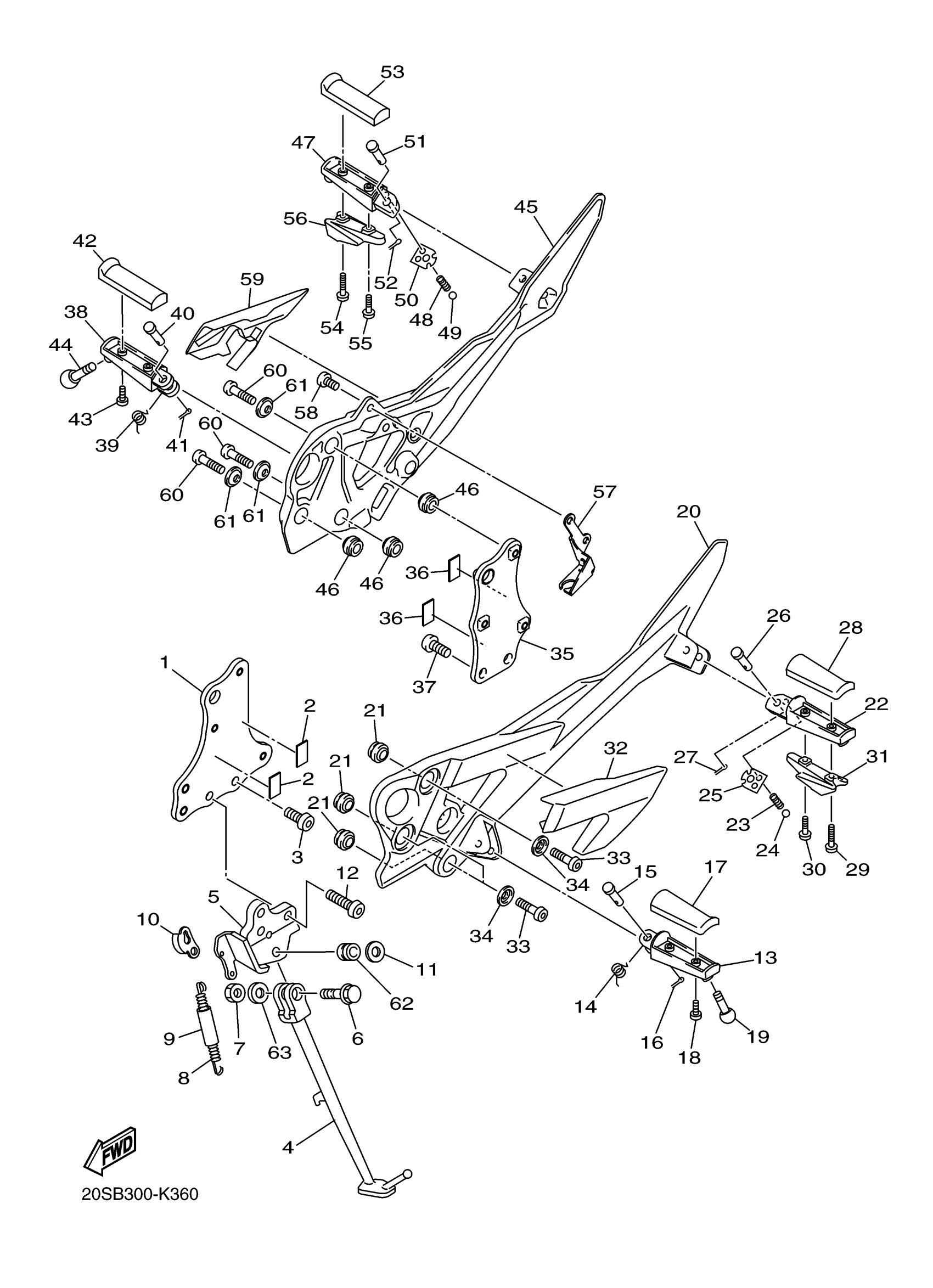

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 STAND FOOTREST Diagram

#

Description
Price

1

BEACKET,ADAPTER 1

20S-274A3-00-00

$71.99

2

DAMPER, RUBBER 1

4RR-21485-00-00

$6.99

3

BOLT,HEX. SOCKET BUTTON

90111-10044-00

Unavailable

4

STAND, SIDE

20S-27311-00-00

$72.99

5

BRACKET, SIDE STAND

20S-27321-00-00

Unavailable

6

BOLT, FLANGE

90105-10262-00

$7.49

7

NUT, SELF-LOCKING

90185-10023-00

Unavailable

8

SPRING, TENSION

90506-23018-00

$23.99

9

GUIDE, SIDE STAND

5VX-27351-00-00

$7.99

10

LINK, SIDE STAND

5VX-27315-00-00

$6.99

11

WASHER, PLATE

90201-10051-00

$9.49

12

BOLT,HEX. SOCKET BUTTON

90111-10046-00

$7.49

13

FOOTREST

4BH-27451-01-00

$58.99

14

SPRING, TORSION (22N)

90508-20572-00

$8.49

15

PIN, CLEVIS (565)

91701-08042-00

$3.61

16

PIN, COTTER

91490-25020-00

Unavailable

17

COVER, FOOTREST

4BP-27413-00-00

Unavailable

18

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

19

BOLT

90109-08204-00

Unavailable

20

BRACKET 2

20S-27442-00-00

Unavailable

21

DAMPER, FOOTREST 2

5VX-27424-00-00

Unavailable

22

FOOTREST, REAR 1

5RT-27431-00-00

Unavailable

23

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

24

BALL

93501-04011-00

Unavailable

25

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

26

PIN, CLEVIS (565)

91701-08042-00

$3.61

27

PIN, COTTER

91490-25020-00

Unavailable

28

COVER, FOOTREST

4BP-27413-00-00

Unavailable

29

SCREW PAN HEAD W/W (4ST1E,4WC1

97607-05230-00

Unavailable

30

SCREW, PAN HEAD WITH WASHER

97607-05220-00

Unavailable

31

ARM 2

5LV-2741E-01-00

Unavailable

32

COVER 1

20S-27486-00-00

Unavailable

33

BOLT (3XF1)

90110-08220-00

Unavailable

34

WASHER(1UF)

90209-08295-00

Unavailable

35

BRACKET,ADAPTER 2

20S-274A4-00-00

Unavailable

36

DAMPER, RUBBER 1

4RR-21485-00-00

$6.99

37

BOLT,HEX. SOCKET BUTTON

90111-10037-00

Unavailable

38

FOOTREST

4BH-27461-01-00

Unavailable

39

SPRING, TORSION (22N)

90508-20572-00

$8.49

40

PIN, CLEVIS (565)

91701-08042-00

$3.61

41

PIN, COTTER

91490-25020-00

Unavailable

42

COVER, FOOTREST

4BP-27413-00-00

Unavailable

43

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

44

BOLT

90109-08204-00

Unavailable

45

BRACKET 3

20S-27443-00-00

Unavailable

46

DAMPER, FOOTREST 2

5VX-27424-00-00

Unavailable

47

FOOTREST, REAR 2

5RT-27441-00-00

Unavailable

48

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

49

BALL

93501-04011-00

Unavailable

50

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

51

PIN, CLEVIS (565)

91701-08042-00

$3.61

52

PIN, COTTER

91490-25020-00

Unavailable

53

COVER, FOOTREST

4BP-27413-00-00

Unavailable

54

SCREW PAN HEAD W/W (4ST1E,4WC1

97607-05230-00

Unavailable

55

SCREW, PAN HEAD WITH WASHER

97607-05220-00

Unavailable

56

ARM 2

5LV-2741E-01-00

Unavailable

57

STAY, STOP SWITCH

20S-2144G-00-00

Unavailable

58

BOLT, BUTTON

92014-08020-00

Unavailable

59

COVER 2

20S-27487-00-00

Unavailable

60

BOLT (3XF1)

90110-08220-00

Unavailable

61

WASHER(1UF)

90209-08295-00

Unavailable

62

COLLAR(3XP)

90387-1003G-00

Unavailable

63

WASHER, PLATE

90201-10035-00

Unavailable
