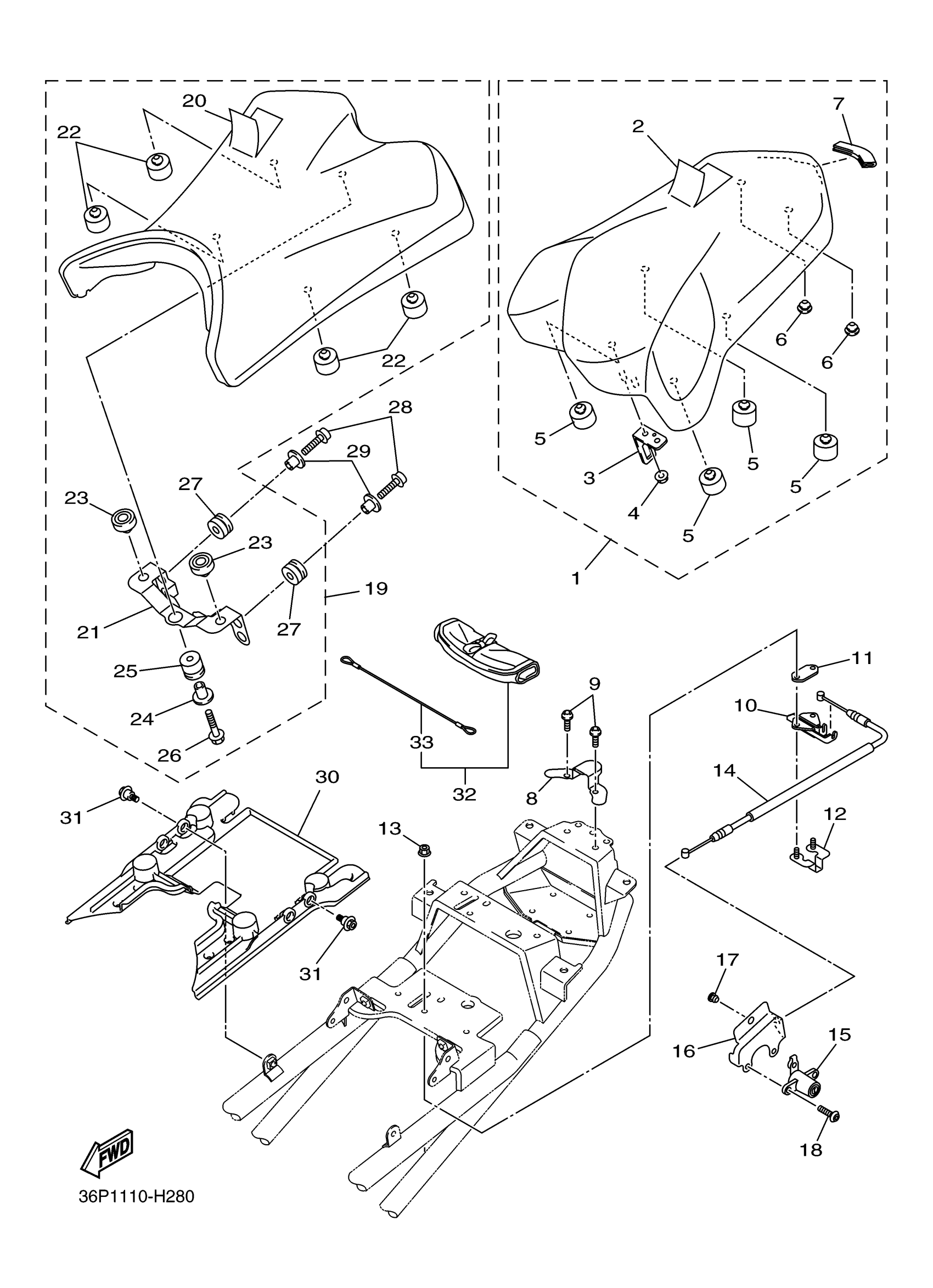

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 SEAT Diagram
#
Description
Price
1
TANDEM SEAT ASSY
36P-24750-01-00
Unavailable
7
DAMPER, SEAT
36P-24724-00-00
Unavailable
8
BRACKET, SEAT
36P-24728-00-00
Unavailable
10
SEAT LOCK ASSY
50W-24780-01-00
Unavailable
11
PLATE
20S-24792-00-00
Unavailable
12
BRACKET, SEAT LOCK
36P-2478X-00-00
Unavailable
14
CABLE, SEAT LOCK
5JW-2478E-00-00
Unavailable
16
STAY, LOCK
20S-2117K-00-00
Unavailable
18
SCREW
90149-06081-00
Unavailable
19
SINGLE SEAT ASSY
36P-24710-01-00
Unavailable
20
SEAT COVER COMP.
36P-2470F-01-00
Unavailable
21
BRACKET, SEAT
36P-24718-00-00
Unavailable
23
PAD, SEAT
2GH-24741-01-00
Unavailable
24
COLLAR
90387-06091-00
Unavailable
25
. GROMMET
90480-15M06-00
Unavailable
26
BOLT, FLANGE
95812-06030-00
Unavailable
27
GROMMET
90480-14016-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-06172-00
Unavailable
29
COLLAR (6G1)
90387-06M52-00
Unavailable
30
SEAT BASE, UNDER
36P-2475B-00-00
Unavailable
31
BOLT
90109-06236-00
Unavailable
32
TOOL KIT
20S-28100-00-00
Unavailable
33
HELMET HANGER ASSY
20S-21308-00-00
Unavailable
