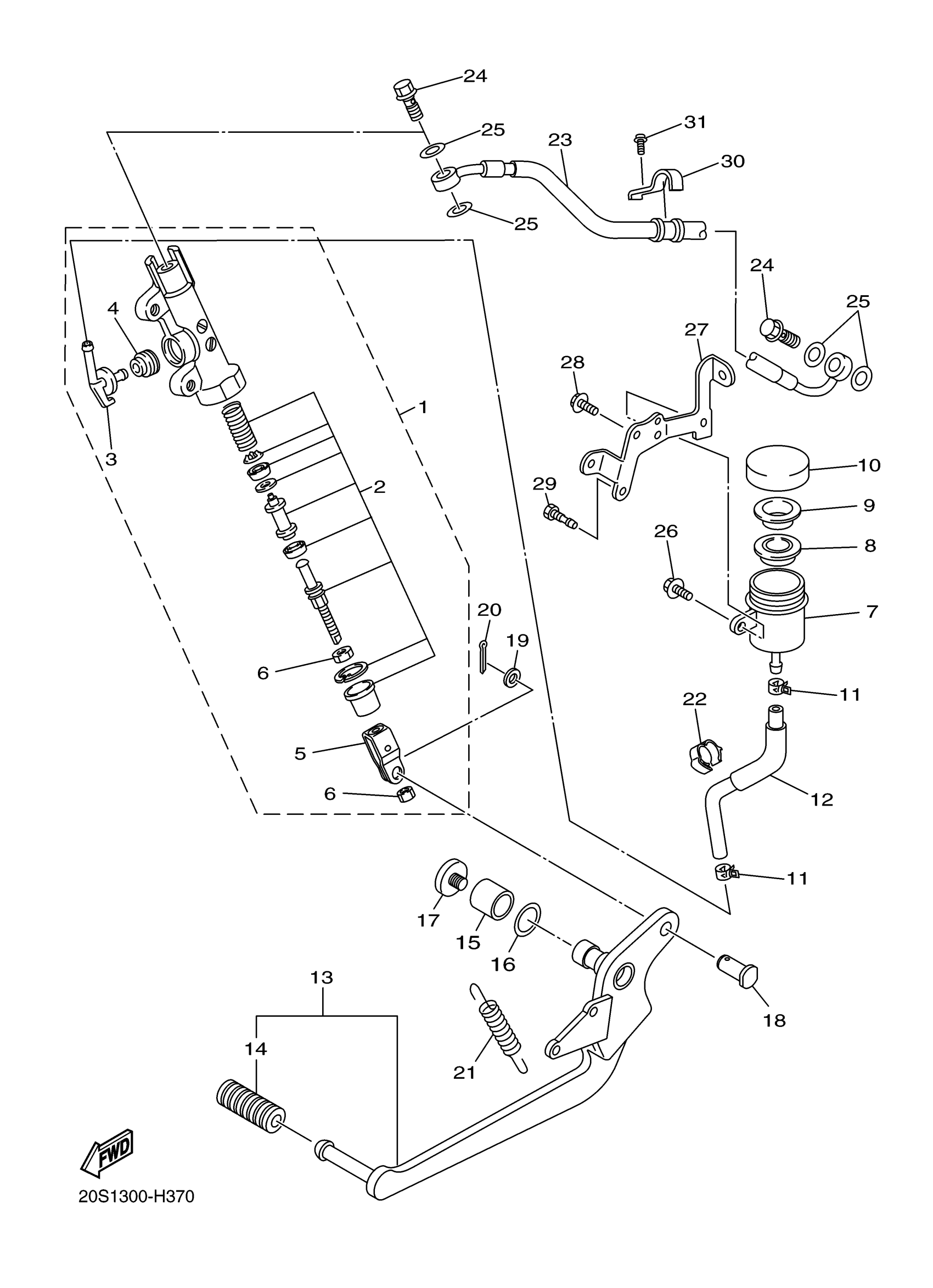

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

2D1-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

5VX-W0042-51-00

$85.99

3

JOINT

2D1-2582A-01-00

$5.49

4

O-RING

4BP-2585F-01-00

Unavailable

5

JOINT

4BP-27222-02-00

$29.99

6

NUT

90170-08010-00

$8.49

7

TANK, RESERVOIR

4P5-25894-00-00

Unavailable

8

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

9

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

10

CAP, RESERVOIR

5SL-25852-00-00

$27.99

11

CLIP (7K7)

90467-11044-00

$8.49

12

HOSE, RESERVOIR

20S-25895-00-00

Unavailable

13

PEDAL, BRAKE

20S-27200-01-00

$117.99

14

COVER, SHIFT PEDAL

5EB-18113-00-00

$7.99

15

BUSH

90386-14171-00

$8.49

16

WASHER, WAVE(6T4)

90206-14086-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06119-00

Unavailable

18

PIN, CLEVIS

90240-08005-00

Unavailable

19

WASHER, PLATE

90201-08066-00

Unavailable

20

PIN, COTTER (648)

91490-20015-00

Unavailable

21

SPRING, TENSION

90506-23008-00

Unavailable

22

CLAMP

90464-16003-00

Unavailable

23

HOSE, BRAKE 5

20S-2581K-00-00

Unavailable

24

BOLT, UNION

90401-10020-00

Unavailable

25

GASKET

90430-10005-00

Unavailable

26

BOLT, WITH WASHER

90119-06137-00

Unavailable

27

BRACKET, RESERVE TANK

20S-21228-00-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

Unavailable

29

SCREW (5G3)

90153-06034-00

Unavailable

30

HOLDER, BRAKE HOSE

20S-2587A-00-00

Unavailable

31

BOLT, FLANGE

95022-06012-00

Unavailable
