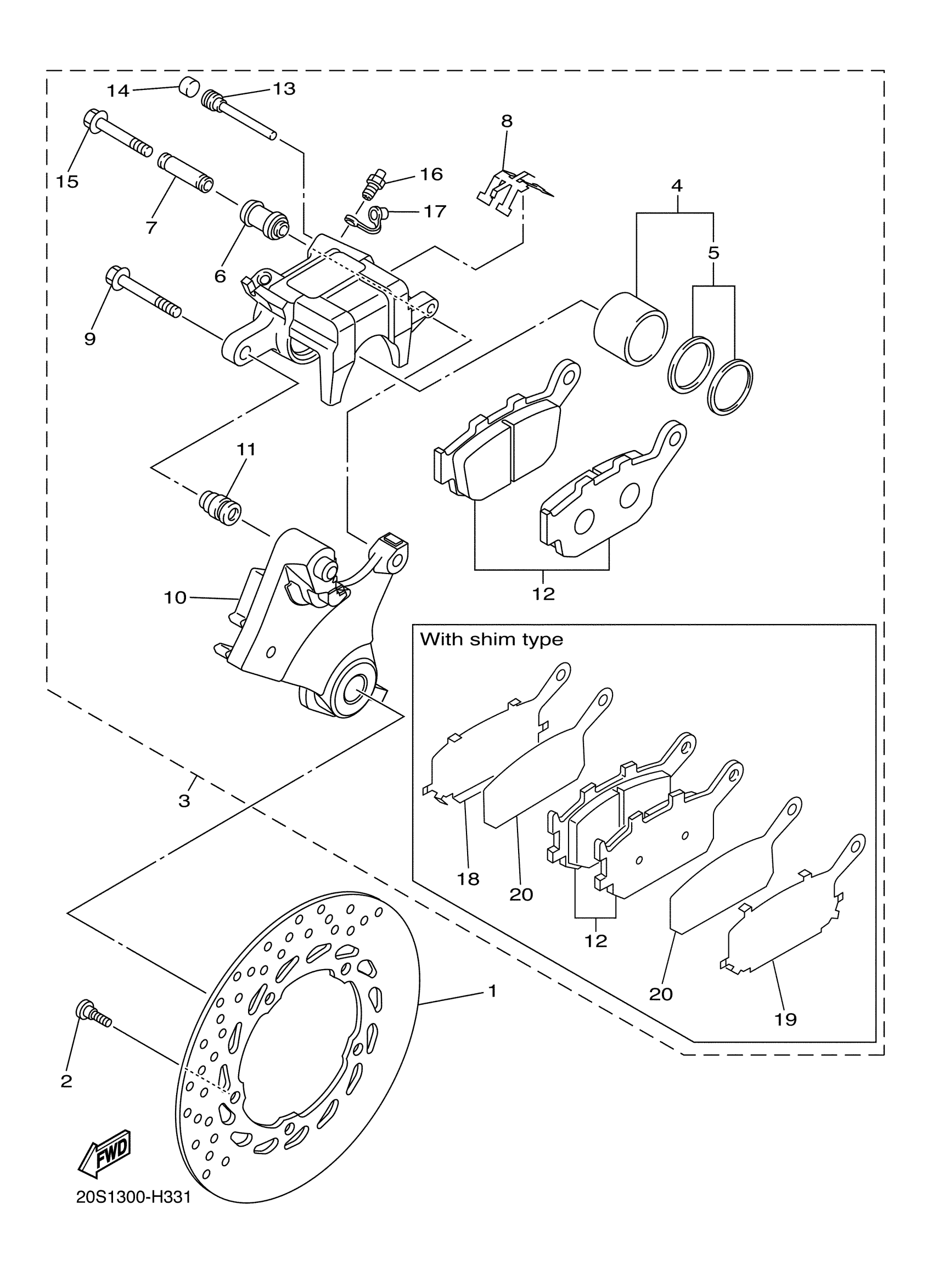

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

20S-2582W-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

3

CALIPER ASSY, REAR 2

20S-2580W-10-00

Unavailable

3

CALIPER ASSY, REAR 2

20S-2580W-10-00

Unavailable

4

PISTON ASSY, CALIPER

5SL-25802-00-00

$72.99

5

CALIPER SEAL KIT

5SL-25803-00-00

$19.99

6

BOOT, CALIPER

5SL-25917-00-00

$15.49

7

SLEEVE, CALIPER

5SL-25838-00-00

$13.49

8

SUPPORT, PAD

5SL-25919-00-00

$6.99

9

PIN, SLIDE

5SL-25914-00-00

$18.49

10

BRACKET, SUPPORT

20S-25921-50-00

Unavailable

10

BRACKET, SUPPORT

20S-25921-50-00

Unavailable

11

BOOT, CALIPER

3JD-25917-00-00

$8.99

12

BRAKE PAD KIT 2

20S-W0046-00-00

$53.99

12

BRAKE PAD KIT 2

5VX-25806-00-00

$53.99

13

PIN, PAD

8CR-25924-00-00

Unavailable

14

PLUG

5DH-25916-00-00

Unavailable

15

BOLT

5SL-25926-00-00

Unavailable

16

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

17

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

18

SHIM, CALIPER

5SL-25827-00-00

Unavailable

19

SHIM, CALIPER

5SL-25827-10-00

Unavailable

20

. SHIM CALIPER

5SL-25827-01-00

Unavailable
