RADIATOR HOSE

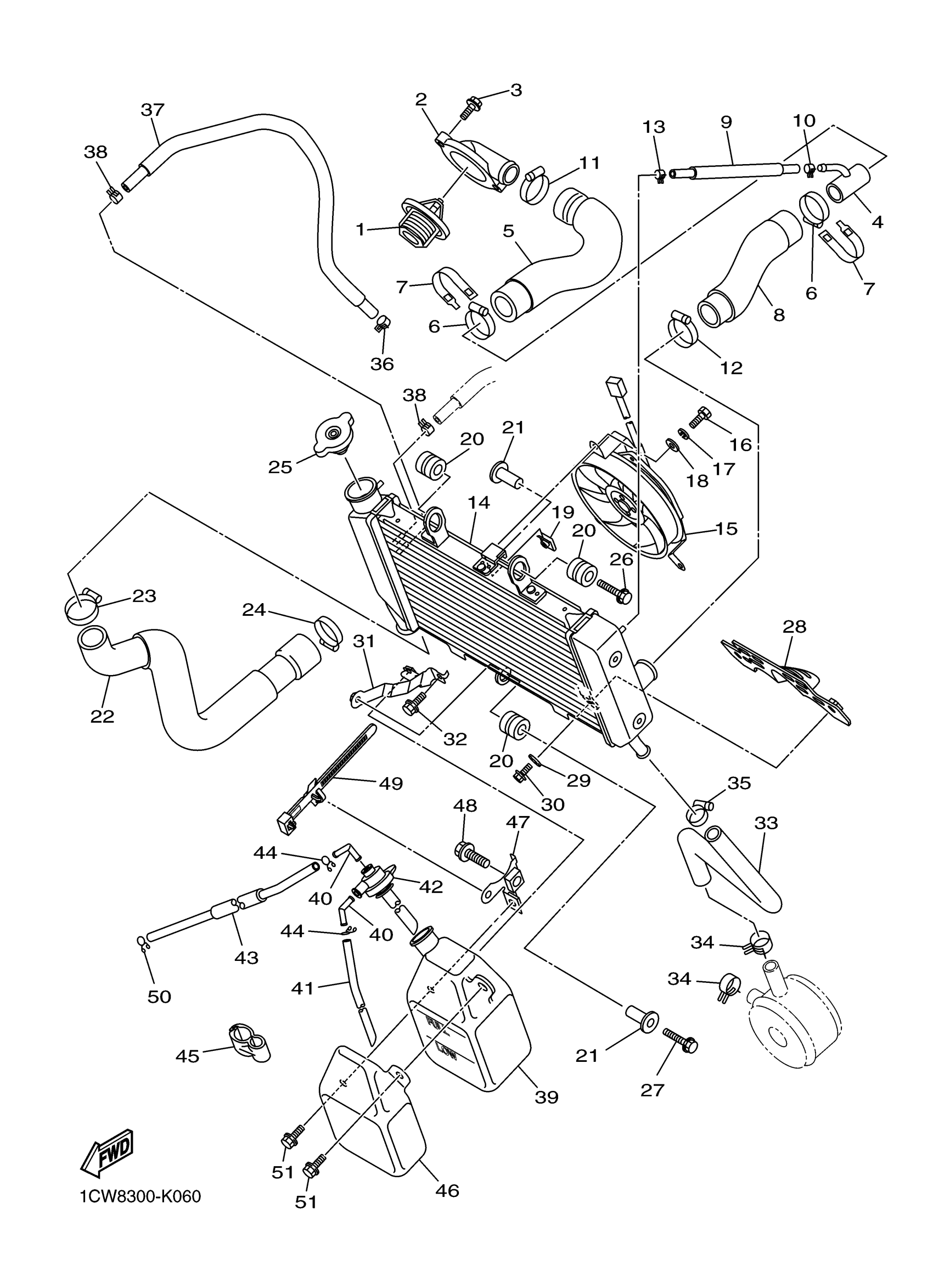

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 RADIATOR HOSE Diagram
#
2
COVER, THERMOSTAT
5VX-12413-00-00
Unavailable
4
JOINT, HOSE 2
20S-12582-01-00
Unavailable
5
HOSE 3
20S-12578-00-00
Unavailable
8
HOSE 7
20S-12551-00-00
Unavailable
9
HOSE
90445-12012-00
Unavailable
11
CLAMP
90460-20190-00
Unavailable
14
RADIATOR ASSY
20S-12461-01-00
Unavailable
15
BLOWER ASSY
20S-12405-21-00
Unavailable
16
BOLT, HEXAGON
97017-06012-00
Unavailable
17
WASHER, SPRING
92907-06100-00
Unavailable
18
WASHER(6TA)
92907-06600-00
Unavailable
19
PLATE
1AA-12535-00-00
Unavailable
20
GROMMET (29L)
90480-15363-00
Unavailable
21
COLLAR
90387-0614M-00
Unavailable
22
HOSE 4
20S-12579-00-00
Unavailable
24
CLAMP
90460-20190-00
Unavailable
25
CAP, RADIATOR
4FL-12462-00-00
Unavailable
26
BOLT, FLANGE
95822-06025-00
Unavailable
27
BOLT, FLANGE
95817-06030-00
Unavailable
28
PLATE
20S-12535-00-00
Unavailable
29
WASHER, PLATE(52G)
90201-064J1-00
Unavailable
30
BOLT, FLANGE
95814-06012-00
Unavailable
31
BRACKET 1
20S-1244E-00-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
HOSE 6
20S-12589-00-00
Unavailable
34
CLIP
90467-200A0-00
Unavailable
35
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
37
HOSE
90445-12009-00
Unavailable
39
TANK, RECOVERY
4P5-21871-00-00
Unavailable
40
ELBOW
26H-21828-00-00
Unavailable
41
HOSE (L340)
90445-08684-00
Unavailable
42
CAP
20S-21875-10-00
Unavailable
43
HOSE (L880)
90445-08025-00
Unavailable
44
CLIP (16G)
90467-08021-00
Unavailable
45
CLAMP(4GL)
90464-10233-00
Unavailable
46
COVER
4P5-2172W-00-00
Unavailable
47
BRACKET, RECOVERY TANK
4P5-21873-00-00
Unavailable
48
BOLT, FLANGE
95817-10020-00
Unavailable
49
CLAMP
90464-07012-00
Unavailable
50
CLIP (16G)
90467-08021-00
Unavailable
51
BOLT, FLANGE
95817-06016-00
Unavailable
