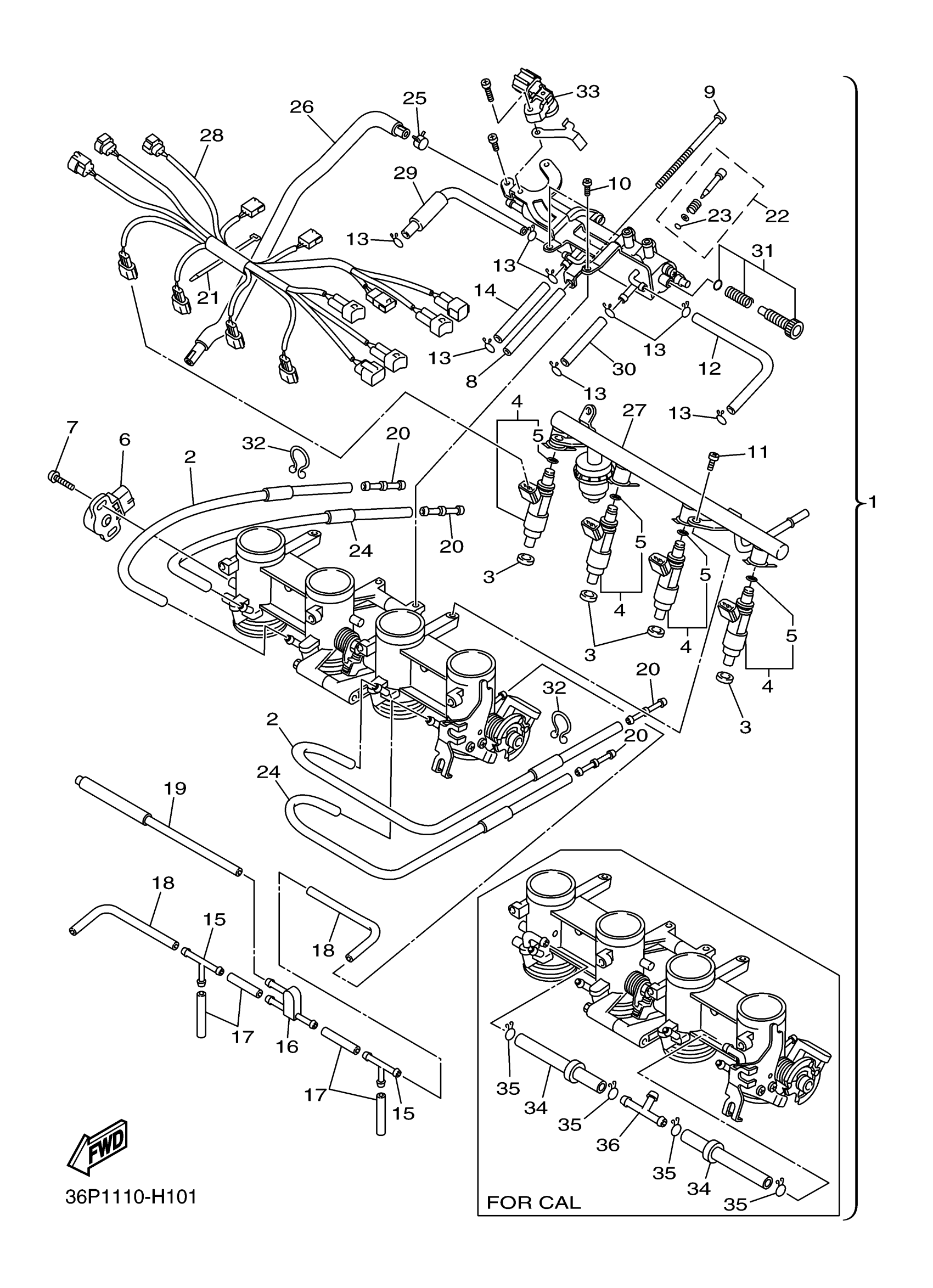

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

20S-13750-00-00

Unavailable

2

PIPE 1

5VX-14348-00-00

Unavailable

3

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

4

INJECTOR ASSY

5VX-13761-00-00

$251.99

5

O-RING

5PS-14147-00-00

$13.49

6

THROTTLE SENSOR ASSY

2D1-85885-01-00

$226.99

7

SCREW

4KM-24453-00-00

$6.99

8

PIPE

5VX-14149-00-00

Unavailable

9

SCREW

5VX-14565-00-00

Unavailable

10

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

11

SCREW, PAN

98517-06012-00

$3.78

12

PIPE

5VX-14396-00-00

Unavailable

13

CLIP

3UH-14937-00-00

$1.72

14

HOSE

5VX-14987-00-00

Unavailable

15

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

16

NIPPLE

3XV-14251-00-00

Unavailable

17

PIPE 1

5FL-14348-10-00

Unavailable

18

. HOSE, VACUUM SENSING 4

68V-13533-00-00

Unavailable

19

HOSE

5VX-1410E-00-00

Unavailable

20

NIPPLE

5PW-14251-00-00

Unavailable

21

CLIP

4KM-14137-00-00

Unavailable

22

AIR SCREW SET

5JW-14104-00-00

Unavailable

23

O-RING, PILOT SCREW

3H1-14147-00-00

Unavailable

24

PIPE

5VX-14349-00-00

Unavailable

25

CLIP(3BM)

90467-10135-00

Unavailable

26

HOSE 2

20S-1243E-00-00

Unavailable

27

DELIVERY PIPE ASSY 1

5VX-13160-00-00

Unavailable

28

EXTENSION, WIRE HARNESS

20S-82386-00-00

Unavailable

29

HOSE, VACUUM SENSING 4

5VX-13533-00-00

Unavailable

30

HOSE

5VX-14807-00-00

Unavailable

31

ADJUST SCREW SET

5VX-14503-00-00

Unavailable

32

CLAMP

90464-25267-00

Unavailable

33

SENSOR, PRESSURE

5S7-82380-00-00

Unavailable
