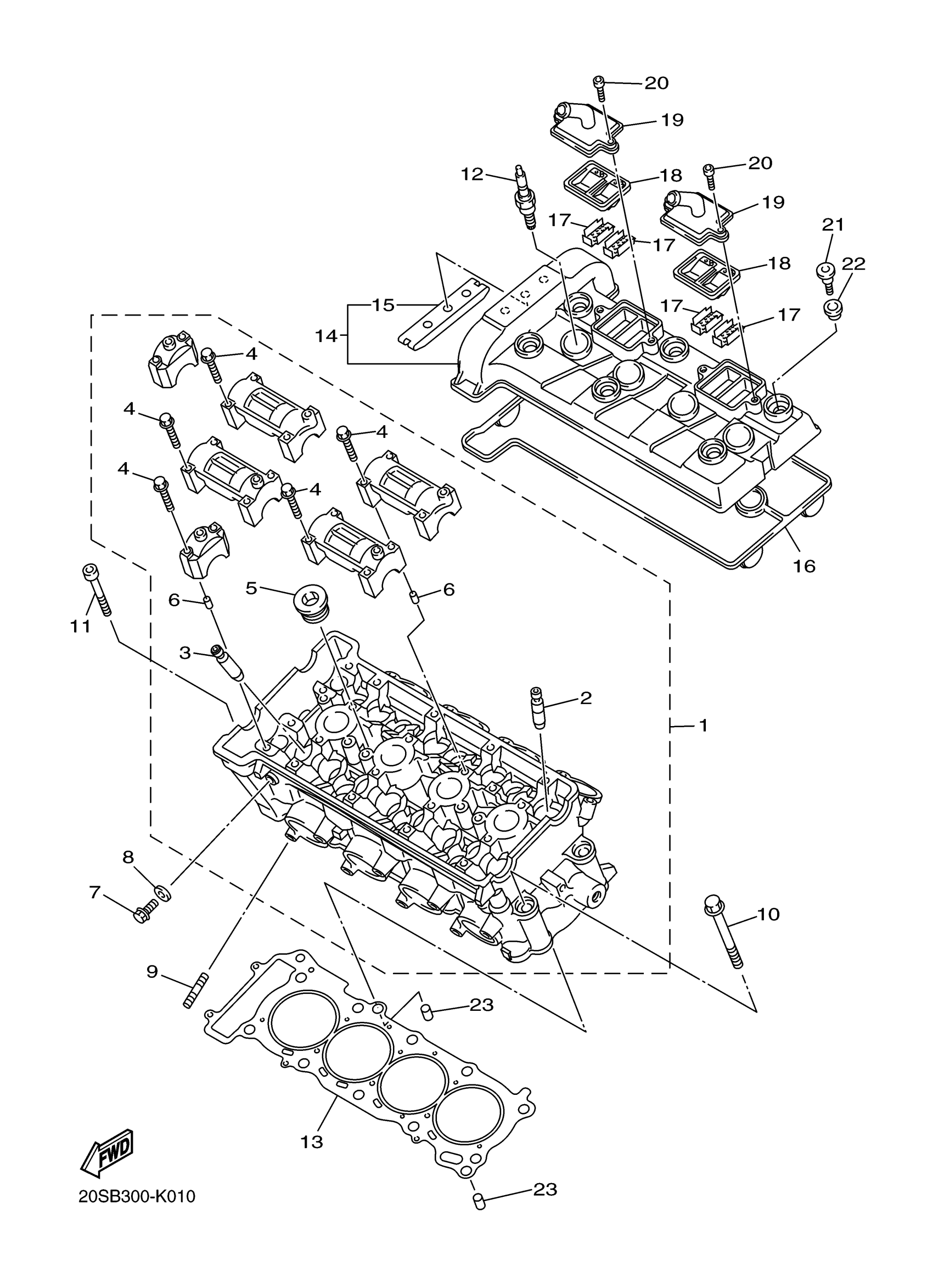

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

20S-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

5EB-11133-10-00

$45.99

3

GUIDE, VALVE 2

20S-11134-10-00

$43.99

4

BOLT, WASHER BASED

90105-06027-00

$7.49

5

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

BOLT, FLANGE

95022-08012-00

$12.49

8

GASKET

90430-08119-00

$6.62

9

BOLT, STUD

95612-08625-00

$7.49

10

BOLT, WITH WASHER

90119-10003-00

$13.49

11

BOLT

91312-06060-00

$10.49

12

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

13

GASKET, CYLINDER HEAD 1

20S-11181-00-00

$77.99

14

COVER, CYLINDER HEAD 1

1B3-11191-10-00

Unavailable

15

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

16

GASKET, HEAD COVER 1

20S-11193-00-00

Unavailable

17

PLATE

5SL-1482K-00-00

Unavailable

18

REED VALVE ASSY

5SL-14890-00-00

Unavailable

19

CAP, CASE

5SL-14899-00-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

21

BOLT(4BP)

90109-066F0-00

Unavailable

22

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

23

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
