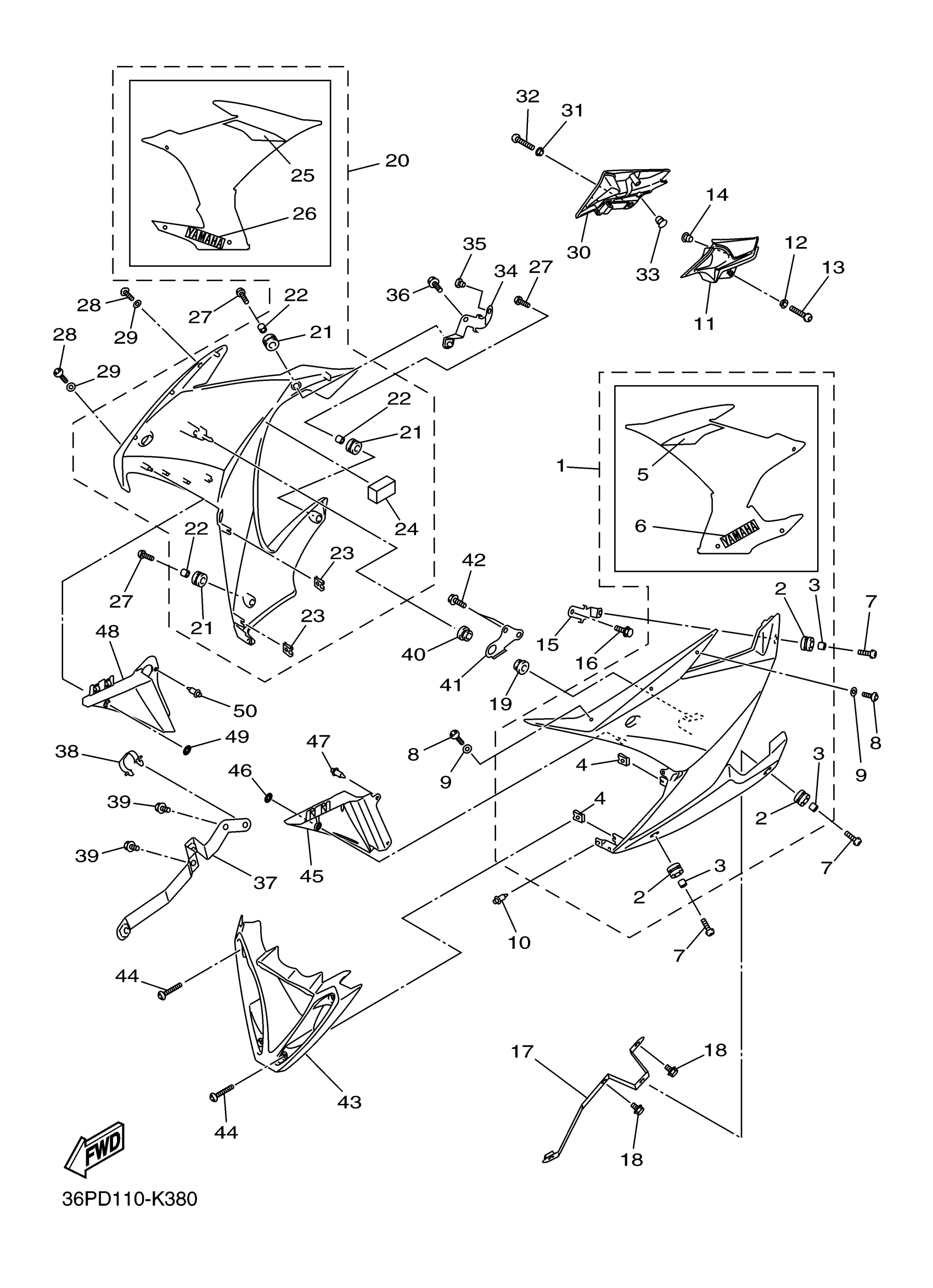

Yamaha FZ6RACB (FZ6R CA) 36PE 2011 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
36P-Y283U-C0-P1
Unavailable
5
GRAPHIC 8
36P-2839E-00-00
Unavailable
6
EMBLEM, YAMAHA
99247-00180-00
Unavailable
7
SCREW(4DN)
90149-06302-00
Unavailable
11
MOLE, SIDE COVER 3
36P-2171N-00-00
Unavailable
13
SCREW(4DN)
90149-06302-00
Unavailable
16
BOLT, FLANGE
95817-06014-00
Unavailable
17
BRACKET 1
36P-2836A-01-00
Unavailable
18
BOLT(1KT)
90109-060E9-00
Unavailable
19
GROMMET(4DN)
90480-01558-00
Unavailable
20
PANEL ASSEMBLY 2
36P-Y283V-C0-P1
Unavailable
24
PLATE 1
2C0-2162G-00-00
Unavailable
25
GRAPHIC, 9
36P-2839F-00-00
Unavailable
26
EMBLEM, YAMAHA
99247-00180-00
Unavailable
27
SCREW(4DN)
90149-06302-00
Unavailable
30
MOLE, SIDE COVER 4
36P-2171R-00-00
Unavailable
32
SCREW(4DN)
90149-06302-00
Unavailable
34
BRACKET 8
36P-2833E-00-00
Unavailable
35
PLUG(7Y6)
90338-07157-00
Unavailable
36
BOLT, FLANGE
95817-06014-00
Unavailable
37
BRACKET 2
36P-2836E-01-00
Unavailable
38
CLAMP(4NK)
90464-24230-00
Unavailable
39
BOLT(1KT)
90109-060E9-00
Unavailable
40
GROMMET(4DN)
90480-01558-00
Unavailable
41
STAY, 4
20S-21843-00-00
Unavailable
42
BOLT, FLANGE
95817-06014-00
Unavailable
43
COVER, UNDER
36P-22863-00-00
Unavailable
44
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
45
PANEL, INNER 4
36P-2836N-00-00
Unavailable
46
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
48
PANEL, INNER 5
36P-2836R-00-00
Unavailable
49
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
