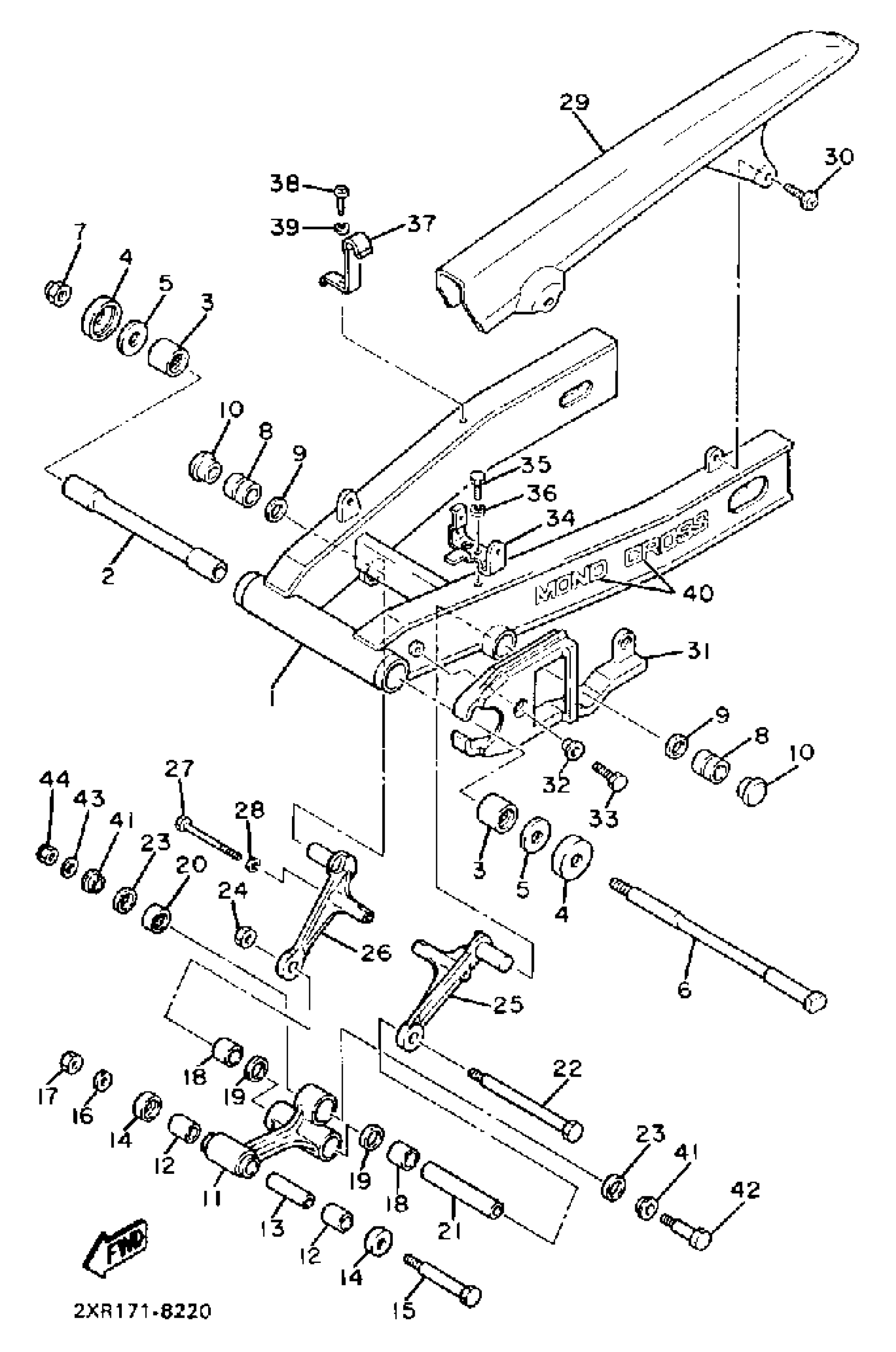

Yamaha FZ600UC (FZ600 CA) 1988 SWING ARM Diagram

#

Description
Price

1

REAR ARM

(46X-22110-01-00)

Unavailable

2

BUSH

33M-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$46.99

4

COVER, THRUST 2

47X-22129-00-00

$10.99

5

WASHER, PLATE(47X)

90201-161J2-00

Unavailable

6

SHAFT, PIVOT

46X-22141-00-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

BUSH(29K)

90386-18136-00

Unavailable

9

OIL SEAL (2J5)

93109-18020-00

$13.49

10

PLUG (4U5)

90338-24112-00

$5.60

11

ARM, RELAY

(2XL-2217A-00-00)

Unavailable

12

BUSH (29L)

90386-18118-00

$8.49

13

COLLAR(1FN)

90387-123M4-00

Unavailable

14

COVER, THRUST 2

26H-22129-00-00

Unavailable

15

BOLT

90101-12619-00

Unavailable

16

WASHER (492)

90201-12535-00

Unavailable

17

NUT, U (4PM)

95617-12100-00

Unavailable

18

BUSH, SPEC''L NYLON

90386-18144-00

Unavailable

19

OIL SEAL (2J5)

93109-18020-00

$13.49

20

BEARING(47X)

93399-99919-00

Unavailable

21

COLLAR

90387-127H2-00

Unavailable

22

BOLT(4ES)

90101-12755-00

Unavailable

23

OIL SEAL(47X)

93101-16131-00

Unavailable

24

NUT, U (4PM)

95617-12100-00

Unavailable

25

ARM 1

(2XL-2217M-00-00)

Unavailable

26

ARM 2

(2XL-2217N-00-00)

Unavailable

27

BOLT,HEXAGON

97027-08080-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

CASE, CHAIN

29L-22311-01-00

Unavailable

30

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

31

SEAL, GUARD

46X-22151-01-00

Unavailable

32

COLLAR (8G8)

90387-06681-00

Unavailable

33

BOLT, HEXAGON

97017-06020-00

Unavailable

34

STAY 2

46X-22132-01-00

Unavailable

35

BOLT (661)

97013-06012-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable

37

HOLDER, BRKE HOSE 2

46X-25876-51-00

Unavailable

38

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

EMBLEM,REAR ARM

3SW-2218A-01-00

Unavailable

41

COLLAR

90387-124L0-00

Unavailable

42

BOLT(1WG)

90101-10659-00

Unavailable

43

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

44

NUT, U

95614-10100-00

Unavailable
