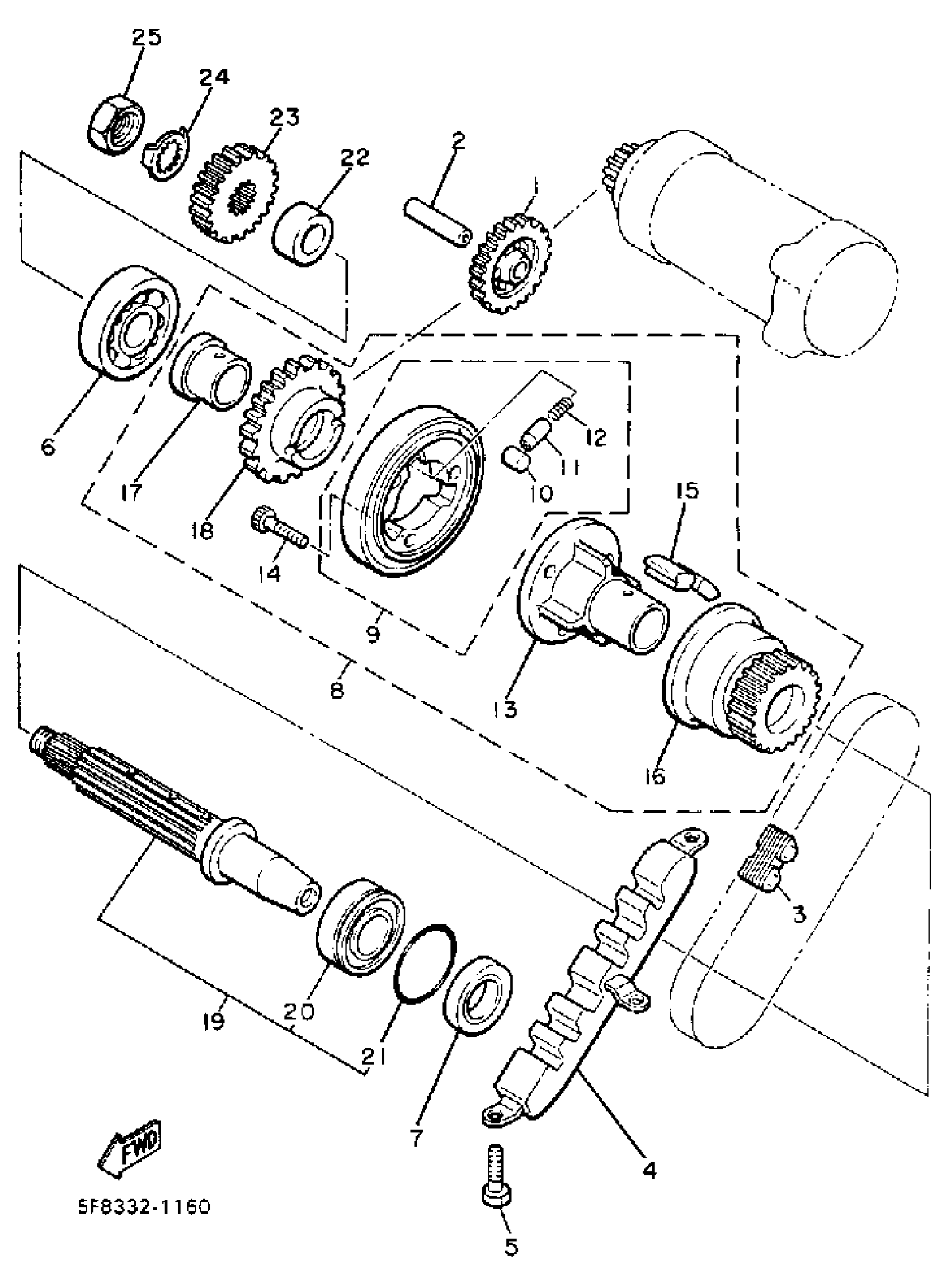

Yamaha FZ600UC (FZ600 CA) 1988 STARTER Diagram

#

Description
Price

1

GEAR, IDLER 1

4G0-15512-00-00

Unavailable

2

SHAFT 1

3TJ-15521-00-00

Unavailable

3

CHAIN, PRIMARY

4G0-16139-00-00

Unavailable

4

GUIDE, UPPER

33M-11474-00-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

BEARING (3Y1)

93306-30525-00

$63.99

7

OIL SEAL (4G0)

93102-25253-00

$15.99

8

CLUTCH DAMPER ASSEMBLY

(4G0-16306-01-00)

Unavailable

9

. STARTER CLUTCH OUTER ASSEMBLY

3GM-15580-00-00

Unavailable

10

PIN,DOWEL(341)

93615-12088-00

$7.49

11

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

12

SPRING, COMPRESSION (4G0)

90501-04623-00

$7.49

13

. WHEEL, STARTER

4G0-15524-01-00

Unavailable

14

BOLT, SOCKET

91317-08014-00

$8.49

15

ABSORBER 1

4BR-16155-00-00

$7.99

16

. GEAR, DRIVEN (22T)

4G0-11537-00-00

Unavailable

17

. COLLAR

90387-256A1-00

Unavailable

18

. GEAR, IDLER 2

4G0-15517-00-00

Unavailable

19

SHAFT ASSEMBLY

4G0-11406-00-00

Unavailable

20

BEARING (4G0)

93306-20545-00

Unavailable

21

O-RING (4G0)

93210-47440-00

Unavailable

22

COLLAR

90387-216L0-00

Unavailable

23

GEAR, PRIMARY DRIVE (28T)

4U8-16111-00-00

Unavailable

24

WASHER, LOCK (4G0)

90215-19226-00

Unavailable

25

NUT

90179-16319-00

Unavailable
