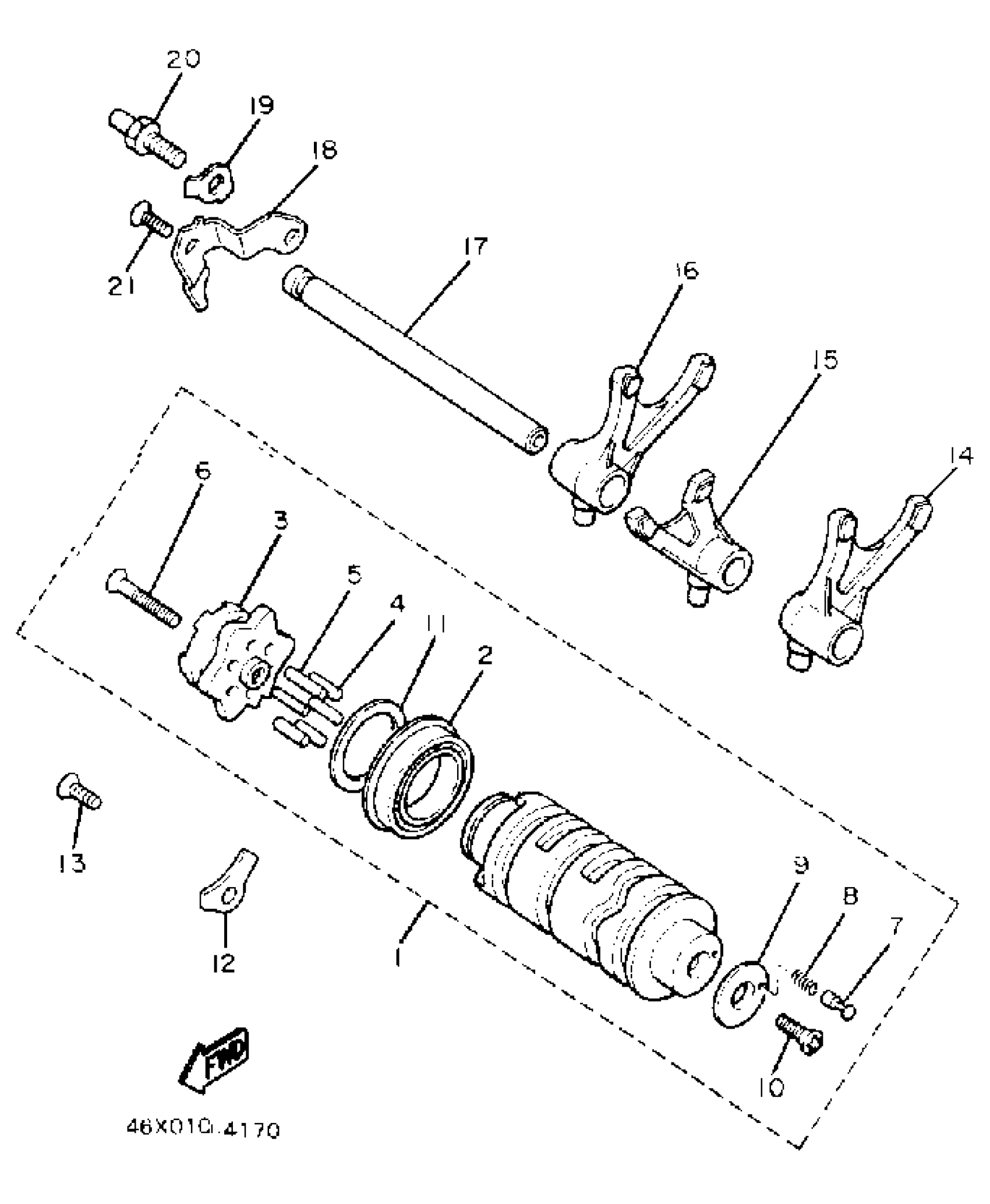

Yamaha FZ600UC (FZ600 CA) 1988 SHIFTCAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASY

49A-18540-01-00

Unavailable

2

BEARING (5K5)

93306-90501-00

$41.99

3

SEGMENT

(49A-18185-00-00)

Unavailable

4

PIN,DOWEL (603)

93604-10011-00

$8.49

5

PIN, DOWEL (409)

93604-16092-00

$3.18

6

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

7

POINT, NEUTRAL

4UN-18542-00-00

$8.99

8

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

9

PLATE, SIDE 2

278-18566-00-00

Unavailable

10

SCREW, FLAT

98707-05016-00

$7.99

11

WASHER, PLATE(59W)

90201-253K0-00

$8.49

12

PLATE, BEARING COVER

49A-15383-00-00

Unavailable

13

SCREW, FLAT

98707-06012-00

$8.49

14

FORK, SHIFT 1

4BR-18511-00-00

Unavailable

15

FORK, SHIFT 2

4BR-18512-00-00

Unavailable

16

FORK, SHIFT 3

4BR-18513-00-00

Unavailable

17

BAR, SHIFT FORK GUIDE 1

4BR-18531-00-00

Unavailable

18

STOPPER, SHIFT BAR

49A-18536-00-00

Unavailable

19

WASHER, LOCK(1UY)

90215-08260-00

Unavailable

20

STOPPER, SCREW

5VK-18127-00-00

Unavailable

21

SCREW, FLAT

98707-06014-00

Unavailable
