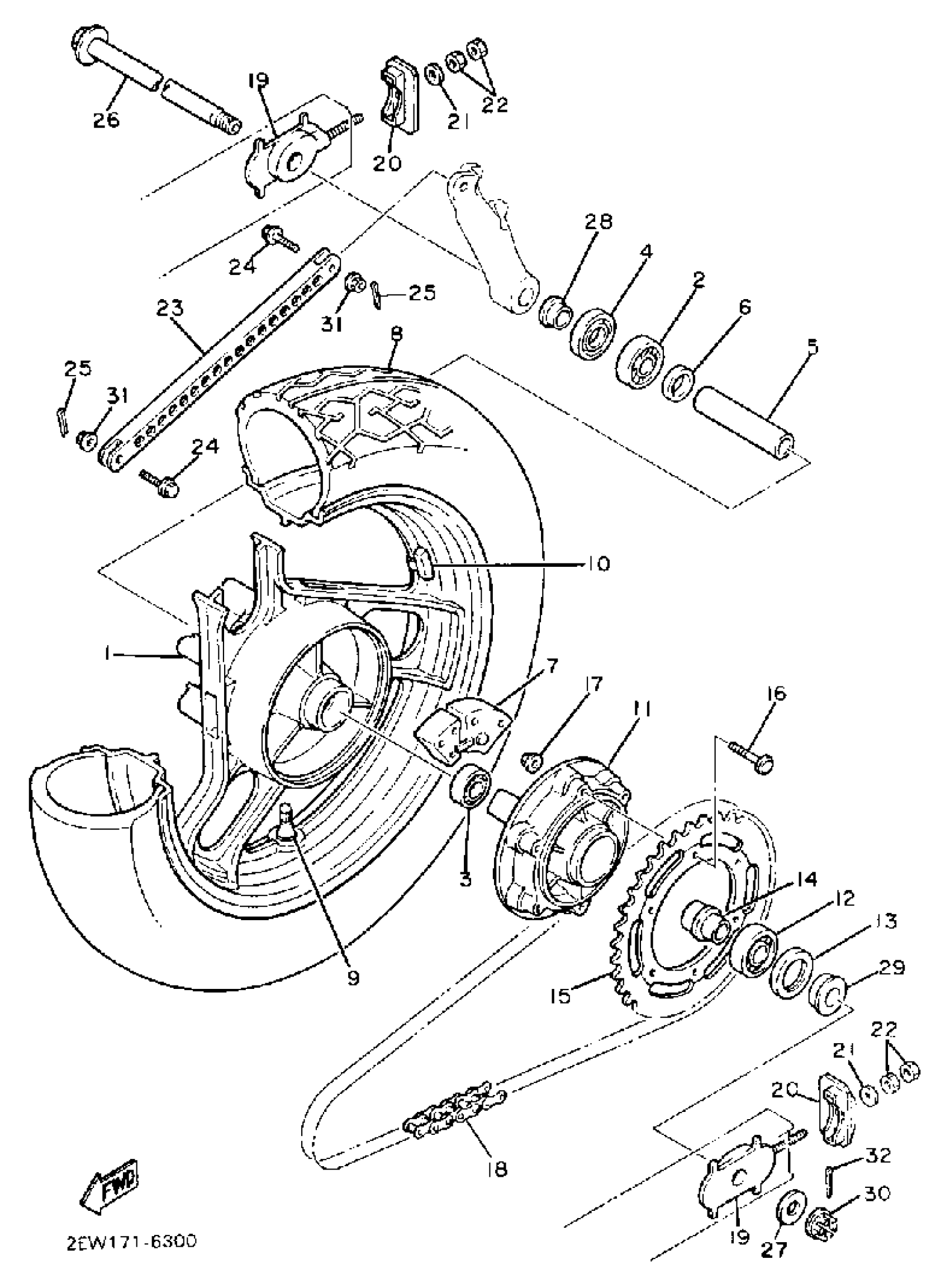

Yamaha FZ600UC (FZ600 CA) 1988 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

46X-25338-00-UA

Unavailable

2

BEARING(4HM)

93306-30317-00

$39.99

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

5

SPACER

90560-17264-00

Unavailable

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

DAMPER

29L-25364-00-00

Unavailable

8

120/80-18 YOKO 62H

94112-187J0-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

BALANCER, WHEEL

5MT-25398-00-00

$17.49

10

BALANCER, WHEEL

5MT-25398-10-00

$17.49

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

CLUTCH, HUB

1JK-25366-00-00

Unavailable

12

BEARING(3BC)

93306-30437-00

$66.99

13

OIL SEAL (29L)

93102-32298-00

$16.99

14

COLLAR

90387-172J8-00

Unavailable

15

SPROCKET, DRVN 46T

2AX-25446-21-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD (29L

90110-08057-00

Unavailable

17

NUT, SELF-LOCKING

90185-08169-00

Unavailable

18

DID 50HDL4

94581-10104-00

Unavailable

19

PULLER, CHAIN 1

46X-25388-01-00

Unavailable

20

PULLER, CHAIN 2

36Y-25389-00-00

Unavailable

21

.. WASHER, PLATE

92990-08600-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

BAR,TENSION

1WG-25371-00-00

Unavailable

24

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

AXLE, WHEEL

2AX-25381-09-00

Unavailable

27

WASHER, PLATE (5K7)

90201-18264-00

Unavailable

28

COLLAR (3HE)

90387-177Y4-00

Unavailable

29

COLLAR

90387-173L6-00

Unavailable

30

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

31

NUT, FLANGE

95704-08500-00

Unavailable

32

PIN, COTTER

91490-30030-00

Unavailable
