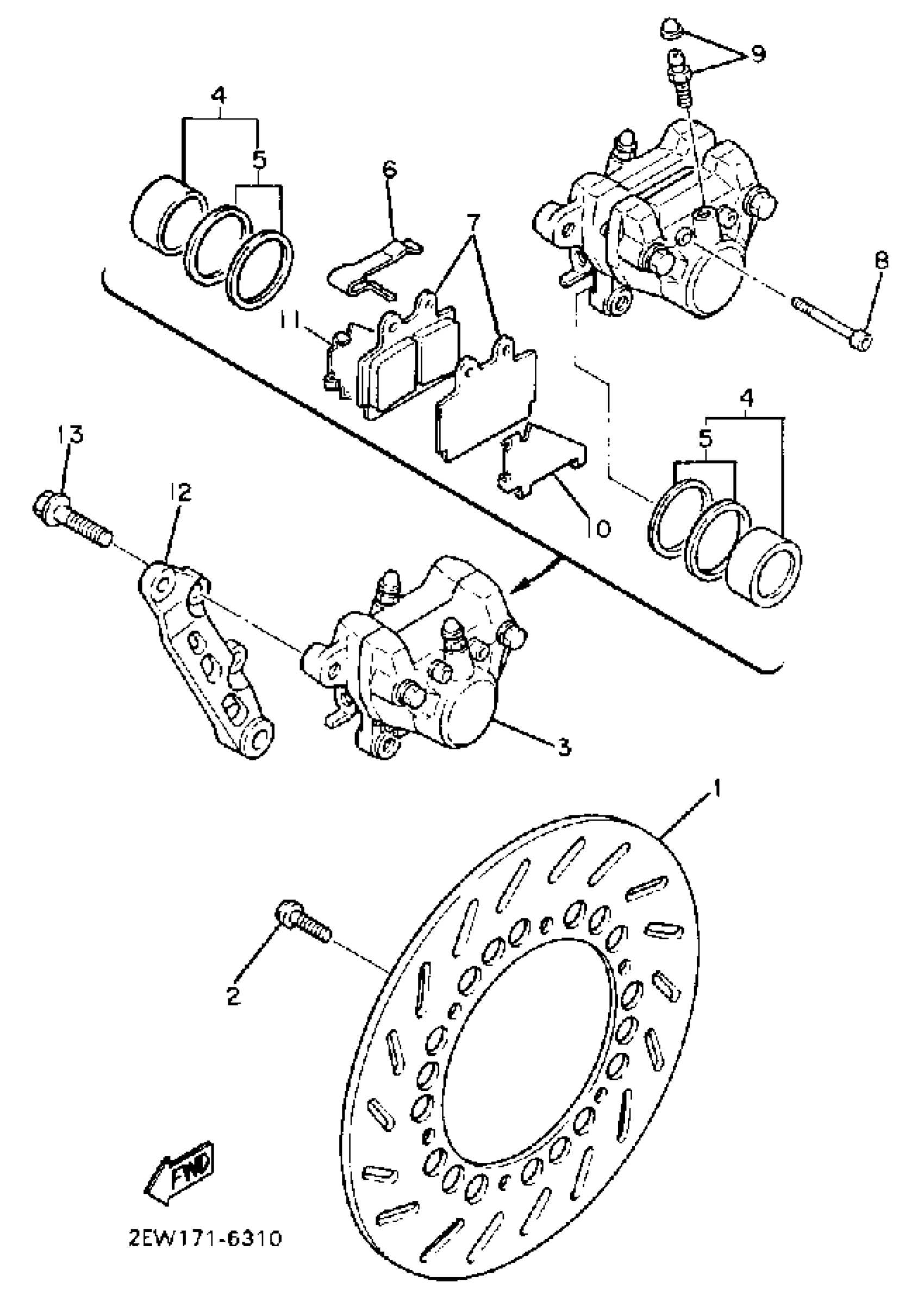

Yamaha FZ600UC (FZ600 CA) 1988 REAR BRAKE CALIPER Diagram

DISC, BRAKE

3SX-2582W-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$3.88

CALIPER ASSEMBLY

2AY-25810-50-00

Unavailable

PISTON ASSY, CALIPER

51L-W0057-00-00

Unavailable

CALIPER SEAL KIT

51L-W0047-11-00

Unavailable

SUPPORT, PAD

51L-25919-00-00

Unavailable

BRAKE PAD KIT 2

4AP-W0046-00-00

$40.99

PIN, PAD

4FL-25924-00-00

$15.18

BLEED SCREW KIT

15B-W0048-00-00

$16.89

SHIM, CALIPER

47X-25827-00-00

$14.44

SHIM, CALIPER

47X-25827-10-00

$13.37

BRACKET, CALIPER

3HE-25819-01-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.94
