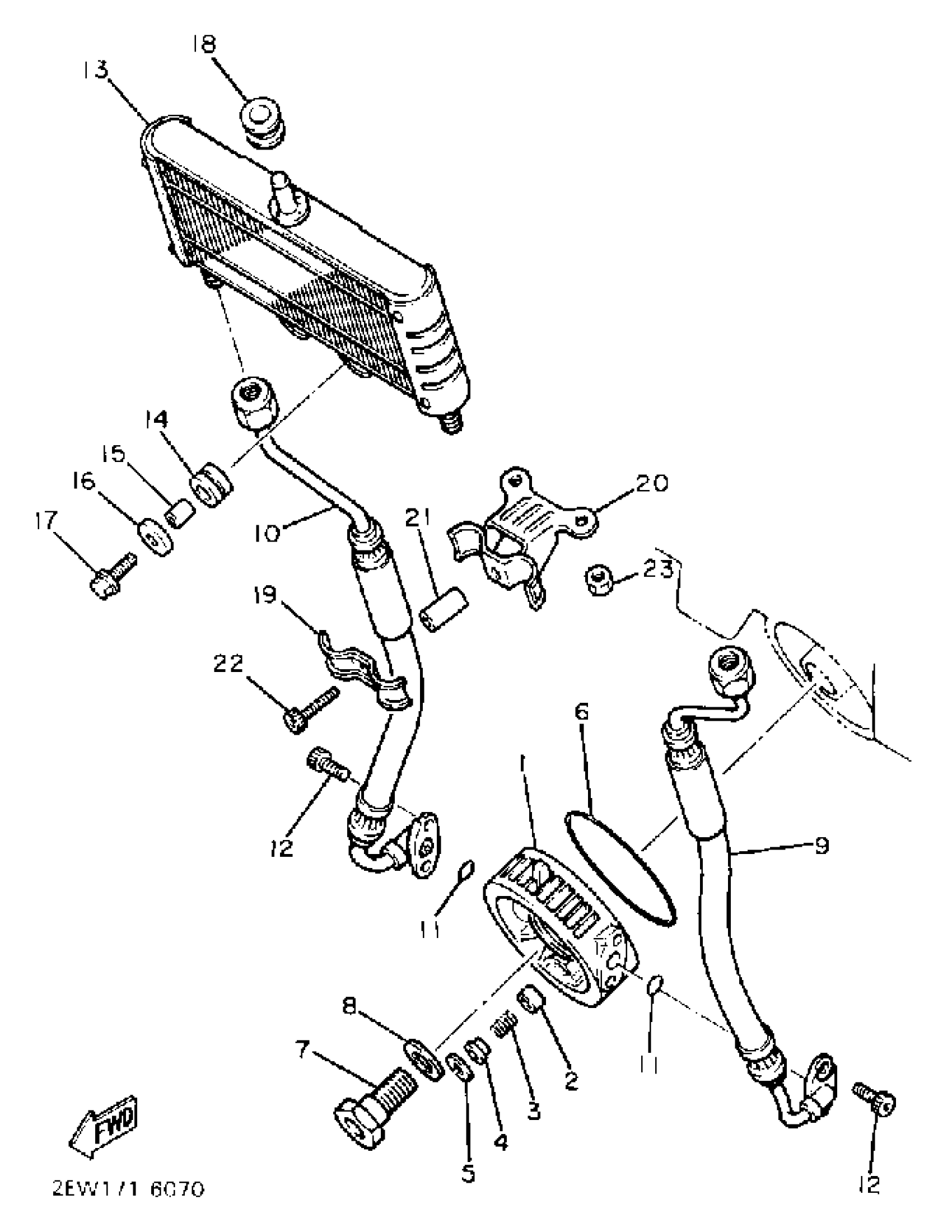

Yamaha FZ600UC (FZ600 CA) 1988 OIL COOLER Diagram

#

Description
Price

1

PLATE, ADAPTOR

5N1-13461-01-00

Unavailable

2

PLUNGER

4KM-13493-00-00

$6.99

3

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

4

WASHER (2H9)

90209-06173-00

$15.99

5

CIRCLIP(24H)

99009-17500-00

$7.49

6

O-RING(1KF)

93210-87723-00

Unavailable

7

BOLT, UNION

90401-20089-00

Unavailable

8

WASHER, PLATE (888)

90201-25526-00

$9.49

9

HOSE, OIL 1

2AX-13464-00-00

Unavailable

10

HOSE, OIL 2

2AX-13465-00-00

Unavailable

11

O-RING (371)

93210-10197-00

$7.49

12

BOLT,SOCKET

91317-06016-00

$1.25

13

OIL COOLER ASSEMBLY

3KM-13470-00-00

Unavailable

14

GROMMET(2GH)

90480-12475-00

$8.49

15

COLLAR

90387-06113-00

$11.49

16

WASHER

90209-06012-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

GROMMET

90480-16284-00

Unavailable

19

CLAMP (4K0)

90462-10066-00

Unavailable

20

CLAMP(49F)

90462-12140-00

Unavailable

21

COLLAR (1T2)

90387-07598-00

Unavailable

22

BOLT,SOCKET

91317-06025-00

Unavailable

23

NUT(6TA)

95317-06600-00

Unavailable
