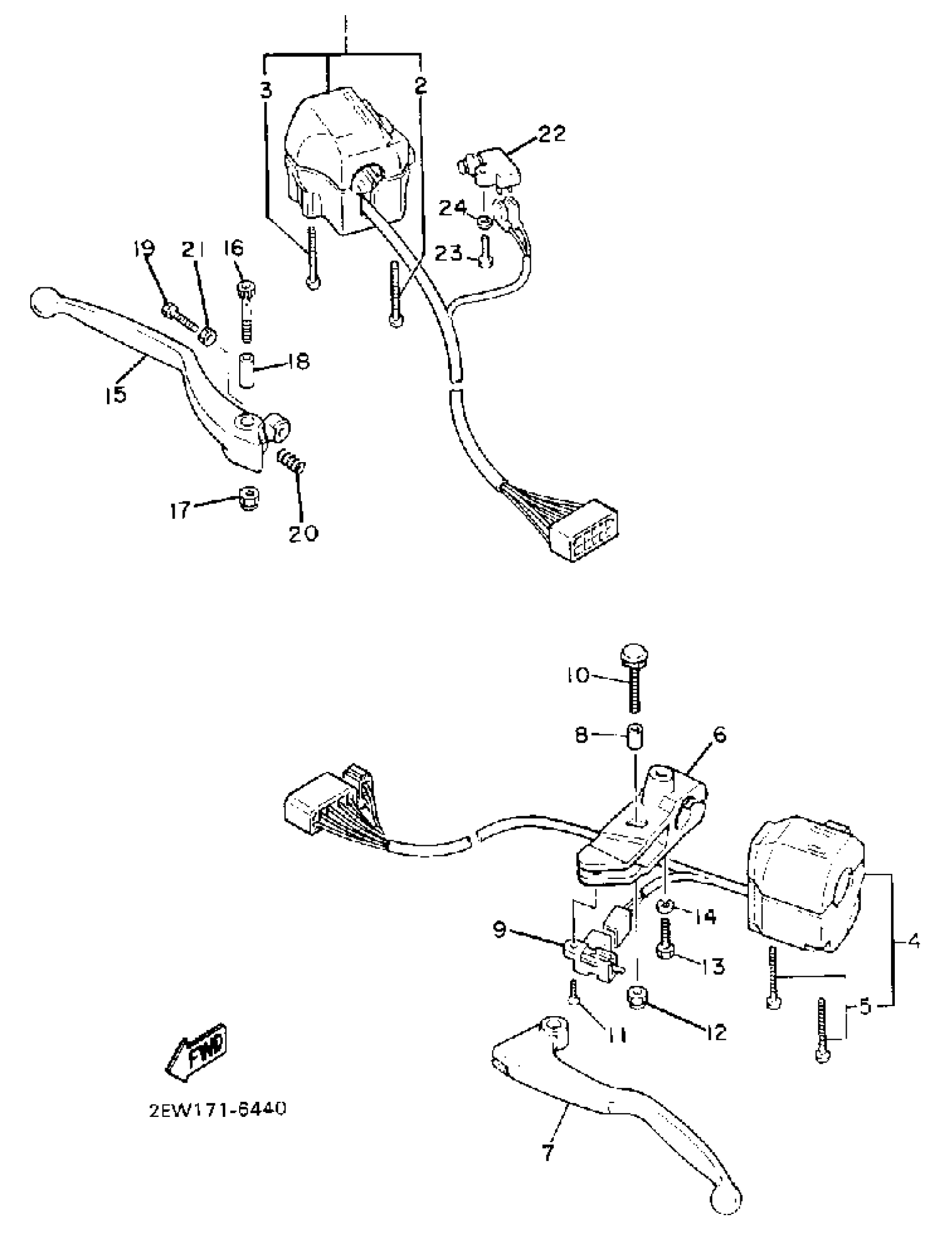

Yamaha FZ600UC (FZ600 CA) 1988 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH HANDLE 2

1AE-83975-01-00

Unavailable

2

SCREW, PAN

98507-05040-00

$8.49

3

SCREW, PAN

98507-05045-00

$9.49

4

SWITCH, HANDLE 3

2AX-83973-00-00

Unavailable

5

SCREW, PAN

98507-05035-00

$8.49

6

HOLDER, LEVER 1

57V-82911-00-00

Unavailable

7

LEVER 1

31A-83912-01-00

$33.99

8

COLLAR, LEVER 1

31A-83913-00-00

$22.99

9

SWITCH

31A-82917-00-00

Unavailable

10

BOLT, LEVER

31A-83945-00-00

$5.49

11

SCREW, FLAT

98707-03008-00

$7.49

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, SPRING

92907-06100-00

$4.25

15

LEVER 2

36Y-83922-00-00

$42.99

16

BOLT, HEXAGON SOCKET HEAD(36Y)

90110-06074-00

Unavailable

17

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

18

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

19

SCREW (2L0)

90149-06131-00

Unavailable

20

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

21

NUT, SELF-LOCKING

95617-06100-00

$8.49

22

SWITCH, ALARM

J45-82503-01-00

Unavailable

23

SCREW, PAN HEAD

98507-04018-00

Unavailable

24

WASHER(JF2)

92907-04600-00

Unavailable
