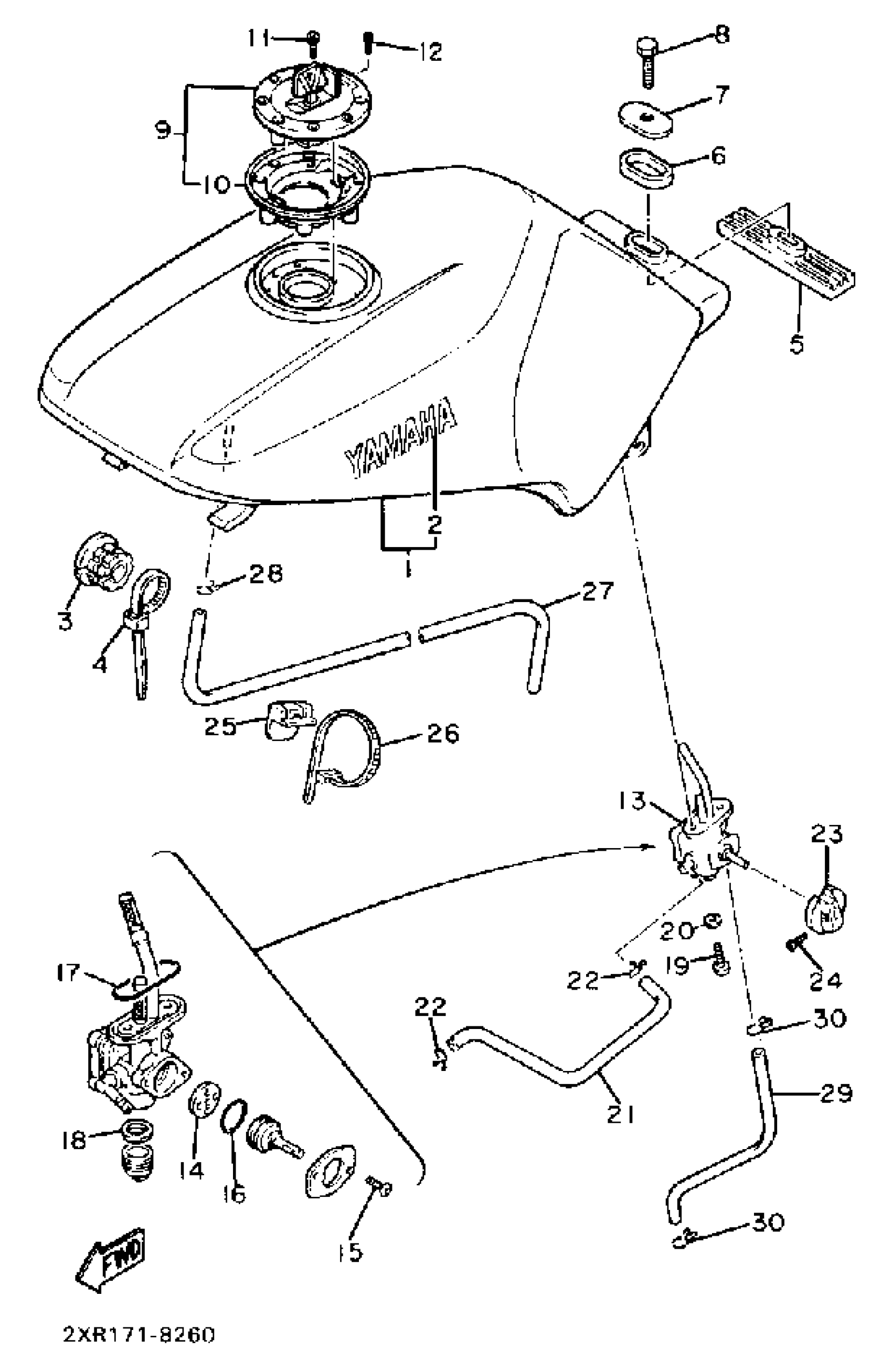

Yamaha FZ600UC (FZ600 CA) 1988 FUEL TANK NON CALIFORNIA MODEL ONLY Diagram

FUEL TANK

2EL-24110-01-04

Unavailable

EMBLEM, YAMAHA(3XV)

99224-00160-00

$15.99

DAMPER, LOCATING 1

46X-24181-00-00

Unavailable

BAND

1UA-82591-00-00

$4.78

UNAVAILABLE IN PRICE BOOK

20L-24182-00-00

Unavailable

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

WASHER, SPECIAL

12R-24186-00-00

$9.99

BOLT, HEXAGON

97013-08030-00

$2.49

CAP ASSY

4FM-24602-20-00

$300.99

. COVER, FILLER

1XL-2414A-01-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

BOLT, SOCKET

91314-05010-00

$2.55

FUEL COCK ASSEMBLY

46X-24500-01-00

Unavailable

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

O-RING

2W6-24512-00-00

Unavailable

GASKET

4X8-24565-10-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

PIPE, FUEL 1

46X-24311-00-00

Unavailable

CLIP

90467-100A1-00

Unavailable

LEVER, COCK

1YH-F4524-00-00

Unavailable

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

DAMPER, LOCATING 2

47X-24182-00-00

Unavailable

BAND

1UA-82591-00-00

$4.78

PIPE 5

2EL-24315-00-00

Unavailable

CLIP

90467-090A2-00

Unavailable

HOSE (L770)

90445-090G9-00

Unavailable

CLIP (16G)

90467-08021-00

Unavailable
